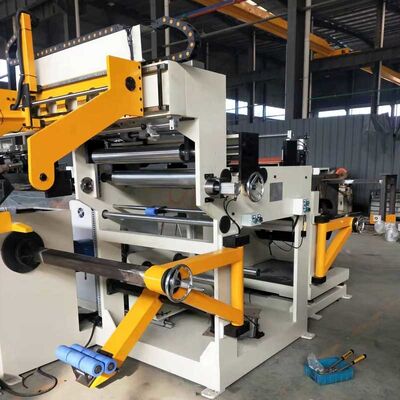

Transformer Foil Winding Machine with 7.5kw Winding Power TIG Welding Mode and 380V 50Hz Power Supply

One Piece Decoiler Transformer Foil Winding Machine Combined with 380V 50Hz Power Supply Delivering Foil Winding Results

Product Description:

The Transform Foil Wind Machine is a highly efficient and reliable piece of equipment designed specifically for the precise winding of transformer foils. This Transformer Foil Winding Machine is engineered to meet the demanding requirements of modern transformer manufacturing, ensuring superior quality and consistency in the production process. With advanced features and robust construction, it stands out as an indispensable tool for winding transformer foils with utmost accuracy.

 This Transform Foil Wind Machine is provided with two insulation decoilers. The Transformer Foil Winding Machine employs a TIG welding mode for connecting the foil layers and bus bar. TIG welding is a highly effective welding technique that provides strong, precise bonds at specific points, minimizing the risk of damage to the delicate foil material. This welding mode enhances the overall durability and performance of the transformer windings by ensuring secure and consistent joints between foil layers.

The main shaft of the Transform Foil Wind Machine measures 80x80x1050mm, providing a sturdy and stable core around which the foil is wound. This shaft size is optimized to accommodate a wide range of transformer foil dimensions, making the machine versatile for various transformer manufacturing requirements. The robust design of the main shaft also contributes to the machine’s longevity and ability to operate under continuous heavy-duty conditions.

Power supply options for the Transformer Foil Winding Machine include 3-phase 380V at a frequency of 50Hz, however different voltage can be used for the macihne,  allowing it to be used in diverse industrial environments worldwide. This flexibility in power input ensures that the machine can be easily integrated into existing production lines without the need for specialized electrical modifications. The winding power of the machine is rated at 7.5kw, providing ample energy for high-speed and efficient winding operations, which in turn increases productivity and reduces manufacturing times.

Designed with user-friendly controls and precision engineering, the Transform Foil Wind Machine offers operators a seamless experience in managing the winding process. Its combination of powerful winding capability, reliable TIG welding, and efficient insulation feeding makes it a standout choice for transformer manufacturers aiming to enhance their production quality and throughput.

In summary, the Transformer Foil Winding Machine is a state-of-the-art solution for transformer foil winding that combines advanced technology with practical features. The inclusion of 2 Pcs insulation decoilers, TIG welding mode, a robust 80x80x1050mm main shaft, adaptable power supply options of 380V at 50Hz, and a strong 7.5kw winding power rating, all contribute to its superior performance. This makes the Transform Foil Wind Machine an essential asset for any transformer manufacturing facility looking to optimize their winding process and produce high-quality transformer coils efficiently.

Features:

• Product Name: Transformer Foil Winding Machine
• Model Names: BRJ700
• Decoiler Width: 750mm
• Maximum Foil Width: 700mm
• Welding Mode: TIG Welding
• Winding Power: 7.5KW
• Power Supply: 380V, 50Hz

Technical Parameters:

Applications:

The STT BRJ700 Transformer Foil Winding Machine, also known as the TFF_Winding_Machine or Transform_Foil_Wind_Machine, is designed for a variety of industrial applications where precision foil winding is critical. This advanced machine is ideal for manufacturing transformer foils with thickness ranging from 0.2 to 2.0mm, making it suitable for producing high-quality transformer components used in power distribution, electrical engineering, and energy systems.

One of the primary application occasions for the TFF Winding Machine is in transformer manufacturing plants where large-scale production is required. The machine’s TIG welding mode ensures strong and reliable connections between foil and busbar, enhancing the durability and efficiency of the wound transformers. The ability to handle one decoiler and two insulation decoilers simultaneously allows for continuous and efficient operations, reducing downtime and increasing throughput.

The Transform Foil Wind Machine is also well-suited for research and development departments of electrical equipment companies. Its precise control over foil thickness and winding power of 7.5kw enables engineers to experiment with different foil configurations, improving transformer designs and performance. This flexibility makes it an excellent tool for prototyping and small batch production.

Another scenario where the STT BRJ700 excels is in repair and maintenance workshops that service transformers. The machine’s compact design and seaworthy packaging details facilitate easy transportation and installation, allowing technicians to perform on-site winding and repairs efficiently. The negotiable price and minimum order quantity of just one set make it accessible for both large enterprises and smaller businesses.

With a supply ability of 100 sets per year and a delivery time of 45 days, this TFF Winding Machine ensures timely availability for urgent manufacturing needs. Payment terms via T/T further simplify procurement processes. Overall, the STT BRJ700 Transformer Foil Winding Machine is a versatile and reliable solution for various transformer winding occasions, from mass production to specialized maintenance, delivering consistent quality and performance.

Customization:

Introducing the STT Transformer Foil Winding Machine, model number BRJ700, designed for precision and efficiency in foil winding applications. Our Transform Foil Wind Machine supports both aluminum and copper foil winding, ensuring versatility for your production needs. The TFW Machine features a robust main shaft sized at 80x80x1050mm and utilizes advanced TIG welding mode for superior joint strength. Equipped with one decoiler. We offer a minimum order quantity of 1 set, with pricing negotiable to suit your specific requirements. Each Transformer Foil Winding Machine is carefully packaged using seaworth packing to ensure safe delivery.

With a supply ability of 100 sets per year, we commit to a delivery time of 45 days from order confirmation. Payment terms are flexible via T/T to facilitate a seamless transaction. Choose the STT BRJ700 TFW Machine for reliable, high-quality transformer foil winding solutions tailored to your needs.

Support and Services:

Our Transformer Foil Winding Machine is designed to provide precision and efficiency in the manufacturing of transformer windings. To ensure optimal performance and longevity of your machine, we offer comprehensive technical support and services.

Technical support includes installation guidance, operational training, and troubleshooting assistance provided by our team of experienced engineers. We are committed to helping you achieve smooth machine operation and minimizing downtime. Regular maintenance services are available to keep your Transformer Foil Winding Machine running at peak efficiency. These services include routine inspections, calibration, lubrication, and replacement of worn parts to prevent unexpected failures.

In addition, customized training programs can be arranged to equip your staff with the necessary skills to operate and maintain the machine effectively. This helps in maximizing productivity and ensuring safety during operation. For any technical inquiries or service requests, our support team is ready to provide prompt and professional assistance to address your needs and keep your Transformer Foil Winding Machine operating smoothly.

Packing and Shipping:

Product Packaging:  The Transformer Foil Winding Machine is carefully packaged to ensure safe delivery. It is securely wrapped with protective materials such as plastic film to prevent damage during transit.

Shipping:  We offer reliable shipping options for the Transformer Foil Winding Machine, including sea freight, and land transportation, depending on the destination and customer preference. The product is shipped with complete documentation, including a detailed packing list and user manual. Tracking information is provided to keep customers updated throughout the delivery process. We also offer professional assistance with customs clearance and insurance to guarantee a smooth and secure shipping experience.

FAQ:

Q1: What is the brand and model number of the Transformer Foil Winding Machine?

A1: The Transformer Foil Winding Machine is manufactured by STT and the model number is BRJ700.

Q2: What is the minimum order quantity for this machine?

A2: The minimum order quantity for the Transformer Foil Winding Machine is 1 set.

Q3: What are the payment terms for purchasing this machine?

A3: The payment terms are T/T (Telegraphic Transfer).

Q4: How long does it take to deliver the machine after placing an order?

A4: The delivery time for the Transformer Foil Winding Machine is approximately 45 days.

Q5: How is the machine packaged for shipping?

A5: The machine is packaged using seaworth packing to ensure safe delivery.

Q6: What is the supply ability of the Transformer Foil Winding Machine?

A6: The supply ability is 100 sets per year.

Q7: Is the price of the Transformer Foil Winding Machine fixed?

A7: The price is negotiable depending on order quantity and other factors.
