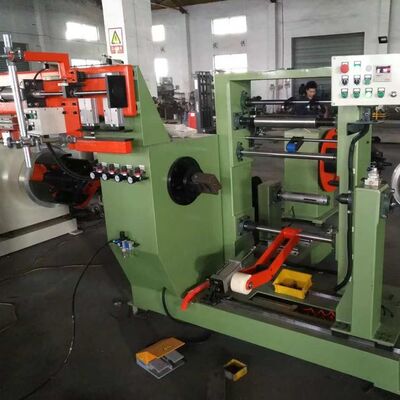

Transformer Foil Winding Machine with Consistent Winding Speed, TIG Welding, and Dual Decoilers

Cost Effective Transformer Foil Wind Device Transformer Foil Winding Machine Offering Consistent Winding Speed

Product Description:

The Cost Effective Transformer Foil Winding Machine is a high-precision industrial device specially designed for the efficient winding of transformer foils. This machine plays a crucial role in the manufacturing process of transformers, ensuring that the foil windings are uniform, tightly wound, and accurately positioned to meet stringent quality standards. With advanced engineering and robust construction, the Transformer Foil Winding Machine is an indispensable asset for transformer manufacturers seeking reliability and performance.

This Transformer Foil Winding Machine is with versatile power supply options. It operates seamlessly on both 380V and other different power inputs. Its efficient power system guarantees stable operation, minimizing downtime and maximizing productivity in the production line.

The core mechanical component of the machine is its main shaft, which measures 80x80x750mm. This substantial shaft size provides the necessary strength and stability to handle transformer foils and maintain precise control during the winding process. The robust design ensures that the foils are wound with consistent tension and alignment, critical factors that affect the overall performance and durability of the finished transformer.

Equipped with two decoilers, the Transformer Foil Winding Machine offers enhanced functionality and operational efficiency. The dual decoiler setup allows for the simultaneous feeding of foil materials, significantly reducing the time required for material changes and increasing the throughput of the winding process. This feature is particularly beneficial in high-volume production environments where minimizing downtime is essential.

The machine’s center height of the winding shaft is set at 900mm, an ergonomic dimension that facilitates easy loading and unloading of materials while ensuring operator comfort. This height is optimized to integrate smoothly with other equipment in the production line, promoting a streamlined workflow and reducing the risk of mechanical misalignment or operator fatigue. The thoughtfully designed center height contributes to the machine’s overall ease of use and maintenance.

The Transform Foil Wind Machine incorporates advanced control systems that allow precise adjustments to winding speed, tension, and alignment. Operators can tailor the winding parameters to suit different transformer specifications, making the machine highly adaptable to various production requirements. This level of control ensures that each transformer foil winding meets exacting standards for electrical performance and mechanical stability.

In addition to its technical capabilities, the Transformer Foil Winding Machine is built with durability and safety in mind. High-quality materials and components are used throughout the construction to withstand continuous operation under demanding industrial conditions. Safety features are integrated to protect operators and prevent damage to the machine or materials, ensuring a secure working environment.

Overall, the Transformer Foil Winding Machine is an essential piece of equipment for transformer manufacturing facilities that demand precision, efficiency, and reliability. Its combination of a robust main shaft, dual decoilers, flexible power supply, and ergonomic design makes it a standout choice among foil winding machines. Whether used for small-scale production or large industrial operations, the Transform Foil Wind Machine consistently delivers superior winding performance that enhances the quality and longevity of transformers.

For manufacturers looking to upgrade their winding technology or increase production capacity, the Transformer Foil Winding Machine offers a comprehensive solution that meets modern industrial standards. Its advanced features and versatile capabilities make it an investment that pays dividends in improved product quality and operational efficiency.

Features:

• Product Name: Transformer Foil Winding Machine
• Winding Material: Aluminum or Copper Foil
• Decoiler Width: 450mm
• Number of Decoilers: Two Pieces
• Welding Mode: TIG Welding

Technical Parameters:

Applications:

The STT Transformer Foil Winding Machine, model JJ-BRJ400-2, is a reliable Transformer Foil Wind_Device designed for precision and efficiency in transformer manufacturing. This Transformer Foil Winding Machine is ideal for winding aluminum or copper foil with thickness ranging from 0.2 to 2.0mm, making it highly versatile for various transformer foil winding requirements. Its TIG welder ensures strong and consistent welds, enhancing the quality and durability of the transformer windings. With the inclusion of two insulation decoilers, the machine supports smooth and uninterrupted winding operations, increasing productivity and reducing downtime.

The Transformer Foil Wind Device by STT is widely applicable in numerous industrial scenarios. It is perfectly suited for manufacturers specializing in power transformers, distribution transformers, and other electrical apparatus that require precise foil winding. The machine’s ability to handle both aluminum and copper foils makes it an indispensable tool for industries seeking flexibility and adaptability in their production lines. Additionally, its high supply ability of 100 sets per year ensures that it can meet the demands of large-scale production facilities.

This Transformer Foil Winding Machine is also an excellent choice for research and development centers focusing on transformer technology. Its precision and adjustable parameters allow engineers to experiment with different foil materials and thicknesses to optimize transformer performance. Furthermore, the machine’s packaging with seaworth packing guarantees safe delivery within the stipulated 45-day timeframe, ensuring that customers receive their equipment in impeccable condition.

The Transformer Foil Winding Machine is commonly employed in transformer manufacturing workshops, electronics factories, and specialized coil winding facilities. Its robust design and efficient operation make it suitable for both small-scale and large-scale production environments. With a minimum order quantity of just one set and negotiable pricing, STT offers flexibility for businesses of varying sizes to integrate this state-of-the-art Transformer Foil Wind Device into their production lines. Payment terms via T/T further streamline the purchasing process, making it accessible and convenient for international clients.

In summary, the STT JJ-BRJ400-2 Transformer Foil Winding Machine is an essential asset for any enterprise involved in the production of transformer windings. Its advanced features, reliable performance, and versatile application scenarios firmly establish it as a leading TFW Machine in the market, capable of meeting diverse industrial needs with precision and efficiency.

Customization:

Introducing the STT Transformer Foil Winding Machine, model number JJ-BRJ400-2, designed to meet your precise manufacturing needs. Our Transformer Foil Winding Machine offers exceptional performance with an insulation decoiler of 2 pieces and a decoiler width of 450mm, ensuring efficient handling of transformer foils. The Transformer Foil Wind Device operates with a center height of 900mm and utilizes a TIG welder for superior welding quality.

We offer flexible customization options and accept a minimum order quantity of just 1 set. Pricing is negotiable to suit your specific requirements. Packaging is handled with seaworth packing to guarantee safe delivery. Delivery time is approximately 45 days, and we maintain a supply ability of 100 sets per year to meet your demand consistently. Payment terms are T/T for your convenience.

Support and Services:

Our Transformer Foil Winding Machine comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our expert team provides installation guidance, operational training, and routine maintenance advice to keep your machine running efficiently. We offer troubleshooting assistance and prompt technical support to resolve any issues that may arise during machine operation. Spare parts and upgrades are readily available to enhance machine longevity and productivity. Additionally, we provide customized solutions tailored to your specific winding requirements, ensuring that the machine meets your production needs accurately. Our commitment is to deliver reliable service and support throughout the lifecycle of your Transformer Foil Winding Machine.

Packing and Shipping:

Product Packaging and Shipping

The Transformer Foil Winding Machine is carefully packaged to ensure safe delivery and maintain product integrity during transit. The machine is securely wrapped with protective materials such as plastic film to prevent scratches and damage. All packaging materials are chosen to withstand handling and environmental conditions during shipping, ensuring the machine arrives in perfect working condition.

For shipping, we offer multiple options including sea freight and express courier services, tailored to the customer's location and urgency.

FAQ:

Q1: What is the brand and model number of the Transformer Foil Winding Machine?

A1: The Transformer Foil Winding Machine is manufactured by STT and the model number is JJ-BRJ400-2.

Q2: What is the minimum order quantity for this machine?

A2: The minimum order quantity is 1 set.

Q3: What are the payment terms for purchasing this machine?

A3: The payment terms are T/T (Telegraphic Transfer).

Q4: How long does it take to deliver the Transformer Foil Winding Machine after placing an order?

A4: The delivery time is approximately 45 days.

Q5: How is the machine packaged for shipping?

A5: The machine is packaged using seaworth packing to ensure safe delivery.

Q6: What is the supply capacity of STT for this product?

A6: STT can supply up to 100 sets of the Transformer Foil Winding Machine per year.

Q7: Is the price fixed or negotiable?

A7: The price of the Transformer Foil Winding Machine is negotiable.
