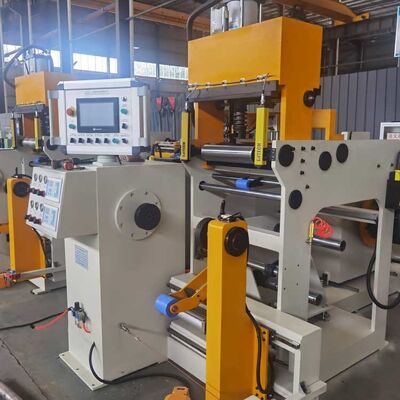

Cold Welding Transformer Foil Winding Machine with 5.5kw Power and Two Decoilers for Precision Winding

Cold Welding Foil Winding Machine 5.5kw Power Foil Coil Winder

Product Description:

The Cold Welding Transform Foil Wind Machine BRJ300-2 is an advanced and highly efficient piece of equipment designed specifically for the precise winding of aluminum or copper foil materials. Engineered to meet the demanding requirements of transformer manufacturing, this machine plays a crucial role in producing high-quality transformer foils with exceptional accuracy and consistency. With its robust construction and state-of-the-art technology, the Transformer Foil Winding Machine ensures optimal performance and reliability in various industrial applications.

One of the standout features of the Foil Winding Machine is its ability to handle copper film thicknesses ranging from 0.2 mm up to 2.0 mm. This wide range of thickness compatibility makes the machine versatile and suitable for a broad spectrum of transformer foil winding tasks. Whether the application calls for thin, delicate foils or thicker, more durable materials, the machine can be precisely adjusted to accommodate these requirements without compromising on winding quality.

The Transform Foil Wind Machine is equipped with two decoilers, a critical feature that enhances its operational efficiency and flexibility. Each decoiler supports a maximum width of 350mm, providing ample space to process foil rolls with ease.

The Foil Winding Machine is designed with user-friendliness and precision in mind. Its advanced control system offers precise tension control and speed regulation, which are essential for maintaining the integrity of delicate aluminum or copper foils during winding. By ensuring uniform tension and preventing material deformation, the machine helps produce transformer foils that meet stringent quality standards, ultimately contributing to the performance and longevity of the finished transformers.

Additionally, the Transformer Foil Winding Machine boasts a durable frame and high-quality components that guarantee long-term operational stability. The machine’s robust build minimizes vibrations and mechanical wear, which are common challenges in foil winding processes. This durability translates into lower maintenance costs and reduced downtime, making the machine a cost-effective investment for transformer foil manufacturers.

In summary, the Transform Foil Wind Machine is an indispensable tool for any industrial facility involved in the production of transformer foils. Its capability to handle copper film thicknesses from 0.2 to 2.0 mm, dual decoilers with a width of 350 mm each, compatibility with both aluminum and copper foils, and a center height of 900 mm combine to offer a versatile and efficient winding solution. The Foil Winding Machine's precision, reliability, and ease of use make it a top choice for achieving consistent, high-quality foil winding results, thereby enhancing overall productivity and product quality in transformer manufacturing operations.

Features:

• Product Name: Transformer Foil Winding Machine
• Center Height: 900mm
• Copper Film Thickness Range: 0.2 ~ 2.0mm
• Welding Mode: Cold Welding
• Power Supply: 380V, 50Hz
• Model: BRJ300-2

Technical Parameters:

Applications:

The STT Transformer Foil Winding Machine, model BRJ300-2, is designed for high-precision winding applications in transformer manufacturing and related industries. This advanced Foil Winding Machine is ideal for producing transformer coils with maximum efficiency and consistency. Its foil width capacity of up to 300mm makes it suitable for a wide range of transformer types. The machine’s cold welding mode ensures secure and reliable foil connections, enhancing the overall quality and durability of the winding process.

In industrial settings where reliable and efficient transformer production is essential, the STT Transform Foil Wind Machine excels. It is widely used in transformer manufacturing plants, electrical component factories, and research and development centers focused on electrical engineering. The machine’s robust design, featuring a center height of 900mm and a winding power of 5.5kw, allows it to handle winding tasks while maintaining precise control over the winding tension and alignment.

The BRJ300-2 Transformer Foil Winding Machine can be seamlessly integrated into various industrial environments worldwide. Its compact footprint and seaworth packing ensure safe transportation and easy installation, making it a perfect choice for both new production lines and upgrades to existing facilities. With a supply ability of 100 sets per year and a delivery time of 45 days, this machine offers manufacturers a reliable and timely solution for their transformer winding needs.

The Foil Winding Machine is also ideal for specialized applications such as prototype transformer development, custom coil manufacturing, and repair workshops requiring precise and repeatable foil winding operations. The minimum order quantity of just one set and negotiable pricing make it accessible for businesses of all sizes. Payment terms via T/T provide additional convenience for international buyers.

Overall, the Transform Foil Wind Machine BRJ300-2 combines advanced technology, versatile application occasions, and user-friendly features to meet the demanding requirements of transformer production. Whether in large-scale factories or specialized production scenarios, this machine ensures high productivity, excellent winding quality, and operational reliability, making it an indispensable asset in the transformer manufacturing industry.

Customization:

Introducing the Transformer Foil Winding Machine, model BRJ300-2, designed for high precision and efficiency in transformer foil winding applications. This Foil Winding Machine features a main shaft size of 80x80x650mm and supports copper film thickness ranging from 0.2 to 2.0mm, ensuring versatility for various transformer foil specifications.

The Transformer Foil Winding Machine accommodates a maximum foil width of 300mm and includes two decoilers with a width of 350mm each, providing smooth and continuous operation. Our Transformer Foil Wind Device is engineered to meet demanding production requirements with a supply ability of 100 sets per year. We offer a minimum order quantity of 1 set with pricing negotiable to suit your project needs. Each unit is carefully packed with seaworth packing to ensure safe delivery. The standard delivery time is 45 days, with payment terms based on T/T.

Choose the BRJ300-2 Transformer Foil Winding Machine for reliable performance and customizable options tailored to your manufacturing process.

Support and Services:

Our Transformer Foil Winding Machine is designed to provide precise and efficient winding solutions for transformer foil applications. To ensure optimal performance and longevity of the machine, we offer comprehensive technical support and services.

Technical Support: We provide detailed user manuals and installation guides to help you set up and operate the Transformer Foil Winding Machine correctly. Our technical support team is available to assist with troubleshooting, maintenance advice, and operational training to maximize the machine’s productivity and accuracy.

Maintenance Services: Regular maintenance is crucial for the smooth functioning of the winding machine. We offer parts replacement to prevent downtime and extend the equipment’s lifespan.

Spare Parts Supply: Genuine spare parts for the Transformer Foil Winding Machine are readily available to ensure reliable repairs and replacements. Using authentic components helps maintain the machine’s performance and safety standards.

Customization: Customization services are also available to tailor the machine’s features and specifications to your specific transformer manufacturing needs.

Warranty and After-Sales Support: The machine comes with a warranty covering manufacturing defects and performance issues. Our after-sales support ensures prompt assistance and solutions to any problems encountered during the machine’s operational life.

By choosing our Transformer Foil Winding Machine, you gain access to a full range of technical support and services designed to enhance your production efficiency and product quality.

Packing and Shipping:

Product Packaging:

The Transformer Foil Winding Machine is securely packaged to ensure safe delivery and optimal protection during transit.

Shipping:

We offer reliable shipping options for the Transformer Foil Winding Machine depending on your location and urgency. The machine is shipped with full insurance coverage to guarantee safe arrival. Tracking information will be provided once the shipment is dispatched. Our logistics partners ensure timely delivery and careful handling throughout the shipping process. Custom clearance support is available to facilitate smooth import and export procedures.

FAQ:

Q1: What is the brand and model number of the Transformer Foil Winding Machine?

A1: The Transformer Foil Winding Machine is branded STT and the model number is BRJ300-2.

Q2: What is the minimum order quantity for this machine?

A2: The minimum order quantity for the STT BRJ300-2 Transformer Foil Winding Machine is 1 set.

Q3: What are the payment terms for purchasing this machine?

A3: The payment terms for the Transformer Foil Winding Machine are T/T (Telegraphic Transfer).

Q4: How long does it take to deliver the Transformer Foil Winding Machine after placing an order?

A4: The delivery time for the STT BRJ300-2 machine is approximately 45 days after the order is confirmed.

Q5: How is the Transformer Foil Winding Machine packaged for shipment?

A5: The machine is packaged using seaworth packing to ensure safe delivery during transit.

Q6: What is the supply capacity of the STT brand for this machine?

A6: The supply ability for the Transformer Foil Winding Machine is 100 sets per year.

Q7: Is the price fixed or negotiable for the BRJ300-2 model?

A7: The price for the Transformer Foil Winding Machine BRJ300-2 is negotiable based on order quantity and other factors.
