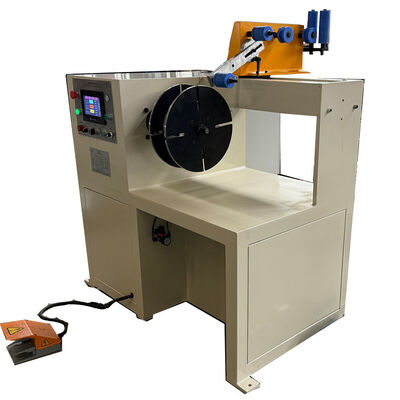

Automatic Transformer Coil Winding Machine with 2.2kw Power, 400rpm Winding Speed, and Emergency Stop Safety Feature

Automatic Transformer Winding Machine Designed to Handle Round Wire Diameter Ranging from 0.3 to 3.0mm Ideal for Coil Production

Product Description:

The Transformer Coil Winding Machine is an advanced and highly efficient Automatic Coil Winding Machine designed to meet the demanding requirements of modern transformer manufacturing. Engineered with precision and built for durability, this Transformer Winding Machine offers exceptional performance and reliability, making it an ideal choice for industries involved in the production of transformers and other electromagnetic components.

This Transformer Coil Winding Machine can be used to wind copper or aluminium wires, with a tensioner, the wire will be with a tension when being wound, thereby improving the quality of the finished coils. The machine is compatible with both copper and aluminium wire materials, providing versatility and flexibility to manufacturers. Whether you require copper for its excellent conductivity or aluminium for its lightweight properties and cost-effectiveness, this Automatic Coil Winding Machine can handle both with ease. This adaptability not only broadens the range of applications but also allows businesses to optimize their production costs and meet diverse customer needs.

Powered by a robust 2.2kw motor, the Transformer Winding Machine delivers ample power to handle winding tasks efficiently. The powerful motor ensures smooth and consistent operation, reducing downtime and increasing productivity. This level of power is particularly advantageous when winding coils with a maximum width of up to 200mm.

Safety is a paramount concern in any industrial setting, and this Automatic Coil Winding Machine is equipped with essential safety features to protect operators and equipment. The inclusion of an Emergency Stop function allows for immediate shutdown in case of any unforeseen issues, preventing accidents and minimizing potential damage.

Designed for ease of use, the Transformer Coil Winding Machine combines user-friendly controls with advanced automation technology. This seamless integration enables operators to program winding parameters accurately and monitor the process in real-time, ensuring consistent coil quality and reducing the likelihood of errors. The automation also contributes to faster production cycles, allowing manufacturers to meet tight deadlines without compromising on precision.

In summary, this Transformer Coil Winding Machine is a state-of-the-art Automatic Coil Winding Machine that offers unparalleled performance, versatility, and safety. This Transformer Winding Machine ensures safe, efficient, and high-quality coil winding operations. Whether you are producing small-scale transformers or large industrial units, this machine is engineered to enhance productivity and deliver consistent, top-tier results every time.

Features:

• Product Name: Transformer Coil Winding Machine
• Maximum Transverse Width: 200mm
• Safety Features: Emergency Stop
• Application: Winding Transformer Coils
• Type: Automatic Coil Winding Machine

Technical Parameters:

Applications:

The Transformer Coil Winding Machine, available under OEM or Custom Brand, is an essential piece of equipment designed for precision winding of coils used in various electrical components. Manufactured in China, this machine meets high standards of quality and safety, certified by CE, ensuring reliable and consistent performance in industrial environments.

This CNC Coil Winding Machine is widely applied in the production of transformer coils and other electromagnetic coils, making it an indispensable tool in electrical manufacturing industries. Its advanced CNC technology allows for automated and highly accurate winding processes, significantly enhancing productivity and reducing manual errors. With a power rating of 2.2kw, the machine offers versatile operation suitable for different coil winding requirements.

The Coil Winding Machine is particularly ideal for factories that produce various types of transformers and other similar products, where precision and efficiency are critical. The machine supports winding with copper or aluminium wire, catering to diverse material needs. Safety features like emergency stop further ensure safe operation, protecting both the operator and the equipment.

Thanks to its robust design and customizable options, the CNC Coil Winding Machine can be tailored to specific production needs. The minimum order quantity is just one set, making it accessible for small to large-scale manufacturers. Pricing ranges from USD 3,000 to 15,000 per set, depending on the model and customization.

Packaging is handled with care, using export wooden cases to guarantee the machine arrives in perfect condition. Payment terms are flexible, accepting T/T, facilitating smooth transactions worldwide. With a supply ability of 100 sets per year, this Transformer Coil Winding Machine is a reliable solution for businesses aiming to enhance their coil production capabilities. This CNC Coil Winding Machine offers precision, safety, and efficiency in one comprehensive package.

Customization:

Our Transformer Coil Winding Machine offers comprehensive product customization services tailored to meet your specific requirements. As an OEM / Custom Brand originating from China, we ensure high-quality standards with CE certification. We can customize the machine to suit your production needs.

We accept a minimum order quantity of just 1 set, with prices ranging from USD 3,000 to 15,000 per set depending on the configuration and customization level. Each machine is carefully packaged in an export wooden case or vacuum packaging to ensure safe delivery. Key technical specifications include a maximum transverse width of 200mm, a powerful 2.2kw motor, a reliable 4-jaw chuck head stock, and an advanced PLC control system.

Choose our Transformer Coil Winding Machine customization services to get a tailored Coil Winding Machine that perfectly fits your production demands.

Support and Services:

Our Transformer Coil Winding Machine is designed to deliver precision and efficiency for all your transformer manufacturing needs. To ensure optimal performance and longevity of the machine, we provide comprehensive technical support and services. Our technical support team is available to assist with installation, setup, and calibration of the coil winding machine. We offer detailed user manuals to help operators understand the machine's functions and maintenance requirements.

Regular maintenance services are recommended to keep the machine running smoothly. These include lubrication of moving parts and inspection of electrical components to enhance functionality. In case of any technical issues, our support specialists diagnose and resolve problems promptly to minimize downtime. Spare parts and replacement components are readily available to ensure quick repairs. We also provide customization services to tailor the coil winding machine to your specific production requirements, including modifications in winding patterns, speed control, and automation features.

Our commitment is to deliver reliable technical support and high-quality services that help maximize productivity and maintain the high standards of your transformer coil production.

Packing and Shipping:

Product Packaging and Shipping for Transformer Coil Winding Machine

The Transformer Coil Winding Machine is carefully packaged to ensure safe delivery and to protect the machine from any damage during transit. The machine is first covered with protective plastic wrap to prevent scratches, dust, and moisture. It is then securely placed inside a sturdy wooden crate, depending on the size and weight of the machine. All packaging materials used are high-quality and environmentally friendly, designed to withstand long-distance shipping and handling.

For shipping, we offer various options including sea freight, air freight, and express courier services to meet the customer's requirements for delivery time and budget. Each shipment is accompanied by detailed documentation including packing list, user manual, warranty card, and certificate of origin. Before dispatch, the machine undergoes a final inspection to verify its condition and functionality. Our logistics team coordinates closely with shipping partners to track the shipment and provide timely updates to customers until the machine reaches its destination safely.

FAQ:

Q1: What brand is the Transformer Coil Winding Machine?

A1: The machine is available under OEM or custom brand options to suit your requirements.

Q2: Where is the Transformer Coil Winding Machine manufactured?

A2: The machine is manufactured in China, ensuring high-quality production standards.

Q3: What certifications does the Transformer Coil Winding Machine have?

A3: Our Transformer Coil Winding Machines are certified with CE certificate, ensuring compliance with international quality standards.

Q4: What is the minimum order quantity and price range for the machine?

A4: The minimum order quantity is 1 set, with prices ranging from USD 3,000 to 15,000 per set, depending on the model and customization.

Q5: What are the delivery times and packaging options available?

A5: Standard models are delivered within 40 days. Packaging options include export wooden cases to ensure safe transport.

Q6: What payment methods are accepted for purchasing the Transformer Coil Winding Machine?

A6: We accept T/T (Telegraphic Transfer) for payment.

 Q7: What is your yearly supply capacity for the Transformer Coil Winding Machine?

A7: Our supply ability is 100 sets per year, ensuring we can meet large orders efficiently.
