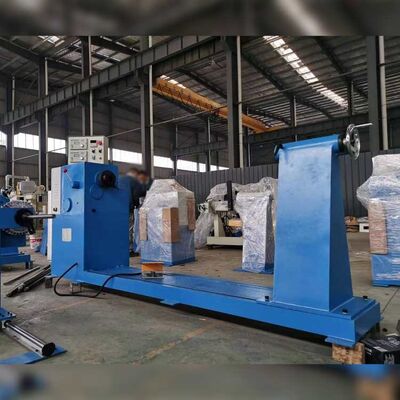

Semi Automatic Transformer Coil Winding Machine with 3KW Motor, Square Shaft Design, and Digital Counter for Precision Winding

Semi Automatic Transformer Coil Winder Machine Powered by 3kw Motor Designed for Wire Coil Winding Operations

Product Description:

Semi Automatic Transformer Coil Winding Machine is a piece of electrical coil winding equipment designed to meet the demanding requirements of transformer manufacturing. Engineered with efficiency in mind, this coil winder machine offers exceptional performance and reliability, making it an essential tool for producing high-quality transformer coils.

One of the standout features of this transformer coil winding machine is its square shaft design. The square shaft provides superior stability and alignment during the winding process, ensuring that the coils are wound uniformly without any slippage or misalignment. This unique shaft configuration enhances the durability of the machine and contributes to the overall quality of the finished coils, making it particularly advantageous for applications where precision is critical.

Equipped with a potentiometer on the control board, this coil winding machine can count the turns when winding. The machine is designed to handle a wide range of wire diameters. This versatility makes it suitable for winding various types of transformer coils, including small coils and larger power coils. Whether you are working with fine enamelled wire for intricate electrical components or thicker wire for robust transformer windings, this electrical coil winding equipment can efficiently manage the task with ease.

Powering the transformer coil winding machine is a robust 3kw motor that delivers reliable and consistent performance. The motor’s power ensures that the machine can maintain steady winding speeds even under heavy loads, reducing downtime and increasing throughput. This power capacity also allows the machine to operate smoothly with minimal vibration and noise, contributing to a safer and more comfortable working environment.

When it comes to shipping and handling, the transformer coil winding machine is packaged with seaworthy packing to ensure maximum protection during transit. This packaging method safeguards the equipment against damage, making it ideal for international shipping and long-distance transportation. Customers can be confident that their investment will arrive in pristine condition, ready for immediate installation and use.

As a comprehensive solution for coil winding needs, this coil winder machine is particularly well suited for manufacturing wire coils.

In summary, this transformer coil winding machine features such as a square shaft and the capacity to handle a broad range of wire diameters, all powered by a strong 3 kw motor. Its seaworthy packaging ensures safe delivery, while its advanced functionality supports efficient and high-quality coil production. Whether you are producing transformers for industrial, commercial, or consumer applications, this electrical coil winding equipment provides the precision, durability, and versatility needed to excel in today’s competitive market.

Features:

• Product Name: Transformer Coil Winding Machine
• Maximum Transverse Width: 800mm
• Application: Winding Transformer Coil
• Power: 3kw
• Type: Semi Automatic Coil Winding Machine
• Suitable for use as a Coil Winder Machine

Technical Parameters:

Applications:

The Semi Automatic Transformer Coil Winding Machine, offered under OEM or custom brand options, is an essential piece of Electrical Coil Winding Equipment designed to meet the diverse needs of manufacturing industries. Originating from China and certified with CE standards, this machine guarantees high-quality performance and reliability. With a minimum order quantity of just 1 set, it provides flexibility for both small and large-scale production requirements.

This Transformer Winding Machine is ideal for use in various industrial occasions such as electrical component factories, and transformer production lines. The machine supports a maximum winding width of 800mm, accommodating a wide range of coil sizes and configurations. Equipped with a powerful 3kw motor, the Coil Winding Machine can handle flat wires and round wire, catering to different wire specifications needed in the production of electrical coils. Its robust design makes it suitable for continuous operation in demanding manufacturing environments.

Packaging is carefully managed with export wooden cases to ensure safe delivery, with lead times of 25-30 days. The supply ability of 100 sets per year ensures timely fulfillment of orders, making it a reliable choice for businesses aiming to scale up their coil winding processes. Payment terms are flexible, including T/T, facilitating smooth transactions for international buyers. With a price range of USD 3,000 to 5,000 per set, this Transformer Coil Winding Machine offers excellent value for money, combining advanced technology with affordable pricing.

In summary, this Transformer Winding Machine is perfect for any electrical coil winding application requiring precision, efficiency, and durability. Its comprehensive features and certifications make it a top choice for manufacturers looking to enhance their production capabilities with reliable Electrical Coil Winding Equipment.

Customization:

Our Transformer Coil Winding Machine offers comprehensive product customization services to meet your specific needs. As an OEM / Custom Brand manufacturer based in China, we provide Electrical Coil Winding Equipment certified with CE certificate, ensuring high quality and safety standards. The Coil Winder Machine features essential safety features such as Emergency Stop, guaranteeing safe operation. Equipped with a 3KW motor, the machine supports a maximum coil height of 800 per coil, with 2 speed gears and a square shaft design for optimal performance.

We accept a minimum order quantity of 1 set, with prices ranging from USD 3,000 to 5,000 per set, depending on customization level. Packaging is handled with care through export wooden cases to ensure product integrity during shipping. Delivery times vary between 25–30 days for standard models and 20–30 days for customized orders. Payment terms are flexible, including T/T options. Our supply ability reaches up to 100 sets per year, enabling us to fulfill both small and large orders efficiently.

Choose our Transformer Winding Machine for reliable, customizable Electrical Coil Winding Equipment that suits your production requirements with excellent safety and performance features.

Support and Services:

Our Transformer Coil Winding Machine is engineered for precision and efficiency in the production of transformer coils. To ensure optimal performance and longevity of your machine, we provide comprehensive technical support and services.

Technical Support: Our experienced technical support team is available to assist you with installation guidance, operation training, and troubleshooting. We offer detailed user manuals and instructional videos to help you understand the machine’s features and maintenance requirements.

Maintenance Services: Regular maintenance is crucial for the sustained performance of your coil winding machine. We offer scheduled maintenance services including inspection, calibration, and replacement of worn parts to prevent unexpected downtime.

Spare Parts: We provide genuine spare parts to ensure your machine compatibility and reliability.

Customization and Consultation: Our technical experts can work with you to customize the machine according to your specific production needs and offer consultation services to optimize your winding processes.

Warranty and Repair: The Transformer Coil Winding Machine comes with a standard warranty covering manufacturing defects. In case of any issues, our repair services ensure quick and efficient resolution to minimize disruption to your operations.

We are committed to delivering exceptional support and services to help you maximize the productivity and quality of your transformer coil manufacturing.

Packing and Shipping:

Product Packaging and Shipping

The Transformer Coil Winding Machine is carefully packaged to ensure it arrives at your location in perfect condition. Each machine is securely wrapped with protective materials and placed in a sturdy wooden crate designed to withstand transportation stresses.

For shipping, we offer multiple options including sea freight services, depending on your urgency and destination. All shipments are accompanied by detailed documentation including manuals, certificates, and a packing list to facilitate smooth customs clearance. We prioritize timely delivery and provide tracking information so you can monitor your order from our factory to your doorstep. Our packaging and shipping process is designed to ensure that your Transformer Coil Winding Machine arrives safely, ready for immediate installation and operation.

FAQ:

Q1: What is the brand name of the Transformer Coil Winding Machine?

A1: The machine is available under OEM or custom brand names according to customer requirements.

Q2: Where is the Transformer Coil Winding Machine manufactured?

A2: It is manufactured in China.

Q3: What certifications does the Transformer Coil Winding Machine have?

A3: The machine holds CE certification, ensuring quality and safety standards.

Q4: What is the minimum order quantity and price range for this machine?

A4: The minimum order quantity is 1 set. The price ranges from USD 3,000 to 5,000 per set depending on the model and customization.

Q5: What are the payment terms and delivery times for the Transformer Coil Winding Machine?

A5: Payment can be made via T/T. Delivery time is 25–30 days.
