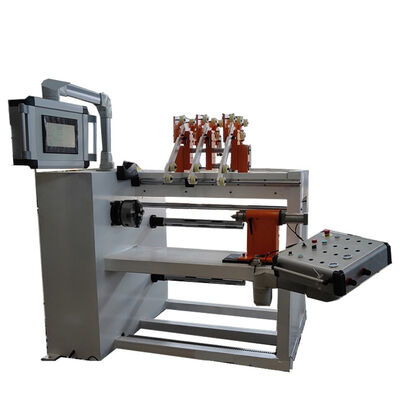

3 Wire Guides Transformer Coil Winding Machine with 4-jaw Chuck and 400mm Transverse Width

3-Head Transformer Coil Winding Equipment Equipped with 3 PCS Wire Guides for Maximum Efficency

Product Description:

The Transformer Coil Winding Machine ZPX150-3 is a highly efficient piece of Electrical Coil Winding Equipment designed specifically for winding transformer coils with precision and ease. This Coil Winder Machine is engineered to meet the demanding requirements of transformer manufacturing, ensuring consistent quality and optimal performance in every coil produced. With its robust construction and user-friendly features, it stands out as an essential tool for industries involved in electrical coil winding tasks.

One of the key features of this Transformer Coil Winding Machine is its 3 pcs of wire guides, which makes the machine can wind 3 coils at the same time.

The machine is equipped with a 4-jaw chuck head stock, which offers a secure and reliable grip on the coil mandrel or core during winding. This 4-jaw chuck design allows for easy adjustments and quick clamping, facilitating faster setup times and improving overall productivity. The head stock ensures that the coil remains firmly in place, preventing any misalignment or movement that could affect the quality of the winding. This feature is essential for maintaining the integrity of transformer coils, especially when dealing with complex winding patterns or large coil sizes.

In terms of capacity, the Transformer Coil Winding Machine accommodates a maximum flat wire size of 5x12mm. This capability makes it suitable for winding a wide range of transformer coils. The machine’s ability to handle flat wire of this dimension ensures versatility, allowing manufacturers to use different wire types and sizes according to their specific application needs. This flexibility is a significant advantage for businesses that require diverse coil winding solutions.

Another important specification is the maximum transverse width of 400mm when winding one coil, 150mm when winding 3 coils at the same time. This substantial width capacity enables the machine to wind coils with a broad range of dimensions, accommodating different sizes of transformer cores and enabling the production of high-capacity transformers. The generous transverse width also allows for complex coil geometries, providing manufacturers with the freedom to innovate and customize coil designs without being limited by equipment constraints.

As a state-of-the-art Coil Winder Machine, this product integrates advanced features and precise control mechanisms to optimize the winding process. Its electric drive system ensures smooth and consistent wire tension, preventing wire breakage and maintaining uniform winding density. This results in coils that exhibit superior electrical performance and mechanical reliability. Additionally, the machine’s ergonomic design and straightforward operation reduce operator fatigue and training time, enhancing overall operational efficiency.

This Transformer Coil Winding Machine is an indispensable piece of Electrical Coil Winding Equipment for transformer manufacturers, research laboratories, and electrical component producers. It offers a combination of strength, precision, and versatility that is difficult to find in other coil winding machines. Whether you are producing small-scale prototype coils or large-volume production runs, this machine delivers consistent results, helping to improve product quality and reduce manufacturing costs.

In summary, the Transformer Coil Winding Machine with its 4-jaw chuck head stock, capability to handle flat wire up to 5x12mm, and a maximum transverse width of 400mm, represents a comprehensive solution for all transformer coil winding applications. Its robust performance, combined with ease of use and adaptability, makes it a top choice for those seeking reliable and efficient coil winding solutions. Investing in this Coil Winder Machine means investing in high-quality electrical coil winding equipment that will support your production needs today and into the future.

Features:

• Product Name: Transformer Coil Winding Machine
• Power: 4kw for efficient operation
• Control System: Advanced PLC control for precision and reliability
• Suitable for round wire diameter ranging from Ø0.3 to 5.0mm
• Maximum transverse width capacity of 400mm
• Packaged with seaworthy packing to ensure safe delivery
• High-performance Electrical Coil Winding Equipment designed for durability
• Specialized Transformer Winding Machine for accurate coil production
• CNC Coil Winding Machine capabilities for automated and precise winding processes

Technical Parameters:

Applications:

The Transformer Coil Winding Machine, offered under OEM or Custom Brand options, is a versatile and highly efficient piece of equipment designed to meet various industrial winding needs. Originating from China and certified with CE standards, this machine ensures reliable quality and safety in operation. With a minimum order quantity of just 1 set, it is accessible for businesses of all sizes, priced competitively between USD 8,000 and 15,000 per set.

This Automatic Coil Winding Machine is ideal for a wide range of applications, including the precise winding of transformer coils and other specialized coil types. Its maximum transverse width of 400mm and coil height capacity of up to 150mm per coil make it suitable for both small-scale and large-scale production environments. The machine is equipped with a 4-jaw chuck, ensuring stable and accurate winding performance.

Safety is a paramount consideration in the design of this CNC Coil Winding Machine. It is equipped with emergency stop functions to safeguard both the operator and the equipment during operation. These features contribute to a secure working environment, minimizing risks and downtime.

The Transformer Coil Winding Machine is packaged carefully in export wooden cases to ensure safe delivery. Whether used in electrical manufacturing plants, coil production workshops, or research and development facilities, this Automatic Coil Winding Machine is an essential tool for producing high-quality coils with precision and efficiency.

Customization:

Our Transformer Coil Winding Machine offers comprehensive product customization services tailored to meet your specific needs. As an OEM / Custom Brand manufacturer based in China, we provide high-quality Automatic Coil Winding Machine solutions certified by CE to ensure reliability and safety.

With a minimum order quantity of just 1 set, our Coil Winding Machine is competitively priced between USD 8,000 and 15,000 per set. Each unit is carefully packaged using export wooden cases or vacuum packaging to ensure safe delivery, with seaworthy packing available for international shipments. The standard lead time ranges from 35 to 40 days. We accept multiple payment terms including T/T to accommodate your preferences.

Our supply ability stands at 100 sets per year, enabling us to meet both small and large scale demands efficiently. The machine supports round wire diameters from Ø0.3 to 5.0mm, features a maximum transverse width of 400mm.

Choose our Transformer Coil Winding Machine for customizable and reliable electrical coil winding equipment tailored to your production requirements.
