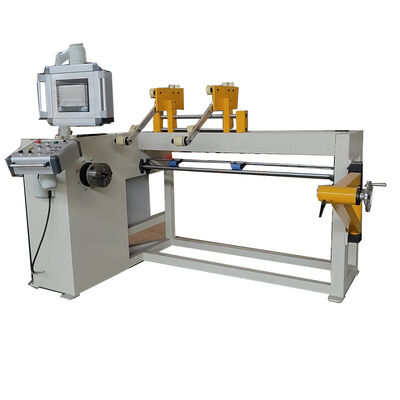

High Effective 2-head Transformer Coil Winding Machine with PLC Control and 7.5kw Power

High Effective Winding Machine 2-head Transformer Coil Winding Machine Industrial Coil Winding Equipment

Product Description:

The Transformer Coil Winding Machine ZPX600-2 is a state-of-the-art piece of winder equipment designed to meet the precise and demanding requirements of winding transformer coils. Engineered with efficiency and durability in mind, this machine is with 2 pcs of wire guides, which makes the machine can wind 2 coils at the same time. Featuring a robust square shaft, it ensures optimal stability and precision during the winding process, accommodating various wire materials such as copper and aluminium with ease.

One of the standout features of this Transformer Coil Winding Machine is its versatility. It is capable of handling copper or aluminium wire, which are the most commonly used materials in coil winding due to their excellent electrical conductivity and mechanical properties. This flexibility allows manufacturers to cater to different customer needs and specifications, making it a highly adaptable solution for coil winding tasks.

Safety is paramount in any industrial machinery, and this machine excels in providing a secure working environment. Equipped with an Emergency Stop feature, operators can immediately halt the machine in case of any unforeseen issues, preventing accidents and damage.

The machine is specifically designed for winding transformer coils. The square shaft design contributes significantly to maintaining the integrity and alignment of the coils, ensuring that each winding is consistent and meets the highest quality standards. As an Automatic Coil Winding Machine, it allows for programmable winding patterns, speeds, and tension controls, enabling manufacturers to produce coils that meet exact specifications without compromising on speed or quality.

The Transformer Coil Winding Machine supports a maximum flat wire size of 5x12mm, making it suitable for a wide range of coil winding applications. This capacity ensures that even larger and more complex coils can be wound effectively, accommodating the needs of modern transformer and and other similar product manufacturing industries. The machine’s precision engineering and automatic controls guarantee that the wire is wound tightly and uniformly, which is essential for the electrical performance and longevity of the coils.

In summary, this Transformer Coil Winding Machine combines precision, safety, and versatility to deliver outstanding performance in coil winding operations. Its square shaft design, compatibility with copper and aluminium wires, and robust safety features such as Emergency Stop makes it a reliable choice for manufacturers. Investing in this machine means securing a high-quality winding solution that meets the evolving demands of the coil manufacturing industry.

Features:

• Product Name: Transformer Coil Winding Machine
• Suitable for round wire diameter: Ø0.3 - 5.0mm
• Square shaft design for enhanced stability
• Powerful 7.5kw motor for efficient operation
• Maximum coil height per coil: 600mm
• Robust and secure seaworthy packing for safe transportation
• Fully Automatic Coil Winding Machine for increased productivity
• High precision Transformer Coil Winder for consistent quality

Technical Parameters:

Applications:

The Transformer Coil Winding Machine, offered under OEM or Custom Brand options, is a versatile and reliable piece of Electrical Coil Winding Equipment designed to meet the diverse needs of transformer manufacturing and repair industries. Originating from China and backed by CE certification, this CNC Coil Winding Machine ensures high-quality performance and compliance with international standards, making it an ideal solution for both small-scale workshops and large industrial enterprises.

With a maximum winding width of 1200mm and a robust 4-jaw chuck head stock, this Coil Winder Machine is perfectly suited for winding a variety of transformer coils with precision and efficiency. Its advanced PLC control system allows for programmable winding processes, enabling users to achieve consistent and accurate coil production, which is essential for electrical transformers and other electromagnetic components. This Electrical Coil Winding Equipment is particularly useful in production lines where precision, speed, and repeatability are crucial. Typical application occasions include transformer manufacturing plants, electrical repair centers, and research laboratories focused on electromagnetic device development. The machine’s emergency stop feature provide a secure operating environment, preventing accidents and equipment damage during intensive winding tasks.

Thanks to its flexible customization options and a minimum order quantity of just 1 set, the Transformer Coil Winding Machine caters to bespoke production requirements. Its price range of USD 8,000 to 15,000 per set makes it accessible for startups and established businesses alike. Packaging is handled with care through seaworthy export wooden cases, ensuring safe delivery. Standard models have a lead time of 35–40 days, supporting efficient project planning and rapid deployment.

Payment terms are flexible, accepting T/T, accommodating various international trade preferences. With a supply capacity of 100 sets per year, the manufacturer can meet high-volume demands without compromising quality or delivery schedules. Whether used in continuous production lines or specialized winding projects, this CNC Coil Winding Machine stands out as a reliable and efficient solution for all transformer coil winding needs.

Customization:

Our Transformer Coil Winding Machine offers comprehensive product customization services tailored to meet your specific requirements. As an OEM / Custom Brand originating from China, we ensure high-quality standards. With a minimum order quantity of just 1 set, our CNC Coil Winding Machine is designed for flexibility and precision in winding transformer coils.

Prices range from USD 8,000 to 15,000 per set, depending on customization options. Each Coil Winding Machine is carefully packaged in export wooden cases to guarantee safe delivery. The lead time is within 35–40 days. We accept various payment terms including T/T for your convenience.

Our Electrical Coil Winding Equipment boasts a maximum transverse width of 1200mm and can handle coil heights up to 600mm per coil. The machine supports a maximum flat wire size of 5x12mm. With a supply ability of 100 sets per year, we can efficiently meet your production demands. All machines are delivered with seaworthy packing to ensure they arrive in perfect condition.

Choose our Transformer Coil Winding Machine customization services for reliable, efficient, and tailored electrical coil winding solutions that suit your operational needs.

Support and Services:

Our Transformer Coil Winding Machine is designed for precision and efficiency in the manufacturing of transformer coils. To ensure optimal performance and longevity of your machine, we offer comprehensive technical support and services.

Technical Support includes assistance with machine setup, operation guidance, troubleshooting, and maintenance procedures. Our team of experts is available to help you maximize the productivity and quality of your winding processes. Services provided include installation and commissioning, routine maintenance checks, and calibration. We also offer training programs for operators to enhance their skills and ensure safe and effective use of the machine.

In addition, we supply genuine spare parts and accessories to maintain the machine’s performance and reliability. Our support services aim to minimize downtime and extend the life of your Transformer Coil Winding Machine. For any technical inquiries or service requests, please refer to the user manual provided with your machine or visit our official website for detailed resources and FAQs.

Packing and Shipping:

Product Packaging:

The Transformer Coil Winding Machine is carefully packaged to ensure safe delivery and protection during transit. It is securely wrapped with plastic film, then placed inside a sturdy wooden crate.

Shipping:

We offer reliable shipping options worldwide. The Transformer Coil Winding Machine is shipped via trusted carriers to ensure timely and safe delivery. Shipping methods include air freight, sea freight, and express courier services, depending on customer preference and destination. Tracking information is provided once the shipment is dispatched. We also offer assistance with customs documentation and import regulations to facilitate smooth delivery to your location.

FAQ:

Q1: What brand options are available for the Transformer Coil Winding Machine?

A1: The machine is available under OEM or custom brand options, allowing you to choose branding that suits your requirements.

Q2: Where is the Transformer Coil Winding Machine manufactured?

A2: The machine is manufactured in China, ensuring quality production and efficient supply.

Q3: What certifications does the Transformer Coil Winding Machine have?

A3: The machine is CE certified, guaranteeing compliance with international quality and safety standards.

Q4: What is the minimum order quantity and price range for the Transformer Coil Winding Machine?

A4: The minimum order quantity is 1 set. The price ranges from USD 8,000 to 15,000 per set depending on the model and customization.

Q5: What are the lead time and payment terms for ordering the Transformer Coil Winding Machine?

A5: Lead time is 35 to 40 days. Payment terms accepted include T/T.
