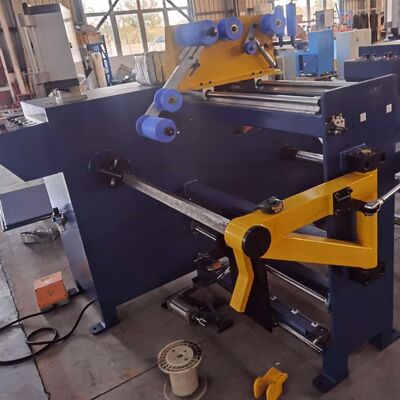

Automatic Coil Winding Machine with 600mm Max Winding Width, 0.75KW Servo Motor, and Ø0.3-5.0mm Wire Diameter

4kw Motor Automatic Coil Winding Machine Coil Height Max 600mm Ensuring High Accuracy in Coil Fabrication Processes

Product Description:

The Transformer Coil Winding Machine ZPX600 is an advanced piece of equipment designed to meet the precise demands of modern coil manufacturing. Engineered with a powerful 0.75KW servo motor to drive wire guide, this Automatic Coil Winding Machine delivers exceptional performance, ensuring smooth and accurate winding operations. The servo motor provides precise control over speed and positioning, which enhances the quality and consistency of each coil produced, making it an ideal choice for industrial applications that require high efficiency and reliability.

This Coil Winding Machine is capable of handling a maximum winding width of 600mm, allowing it to accommodate a wide variety of transformer coil sizes. Its versatility makes it suitable for producing coils used in numerous electrical devices and transformers, thereby catering to diverse manufacturing needs. The machine is designed to support coil heights of up to 600mm, which means it can handle substantial coil volumes without compromising on precision or performance.

One of the standout features of this Automatic Coil Winding Machine is its compatibility with round wire diameters ranging from Ø0.3mm to 5.0mm. This broad wire size range ensures that manufacturers can use the machine for various coil winding projects, from delicate, fine wires for small transformers to thicker wires for heavy-duty applications. The machine's adaptability to different wire sizes makes it highly valuable for businesses aiming to diversify their product offerings without investing in multiple winding machines.

In addition to its technical capabilities, the Transformer Coil Winding Machine is also designed with user convenience and operational safety in mind. The integration of a servo motor allows for precise automated control, reducing the need for manual intervention and minimizing the risk of errors during the winding process. This automation not only increases production speed but also enhances the overall quality of the coils, ensuring uniform winding tension and consistent coil dimensions. A 4kw main winding motor is for driveing the winding shaft to wind wire.

Durability and protection during shipment are also key considerations for this machine. It comes packaged with seaworthy packing, which guarantees that the machine is well-protected against harsh transportation conditions. This ensures that the machine arrives at its destination in optimal condition, ready for immediate installation and operation.

Whether you are looking to upgrade your existing coil winding equipment or invest in a new machine, this Transformer Coil Winding Machine offers a combination of advanced technology and robust construction that meets the rigorous demands of modern manufacturing environments. Its automatic operation, wide wire compatibility, and substantial winding capacity make it a standout choice among Automatic Coil Winding Machines available in the market today.

In summary, this Coil Winding Machine is an essential tool for manufacturers seeking precision, efficiency, and reliability in coil production. With its 0.75KW servo motor and 4kw main winding motor, maximum winding width of 600mm, coil height capacity of up to 600mm, and ability to handle round wire sizes from Ø0.3 to 5.0mm, it provides unmatched versatility and performance. Coupled with seaworthy packing for secure delivery, this Automatic Coil Winding Machine is built to support your manufacturing success and help you produce high-quality transformer coils consistently and efficiently.

Features:

• Product Name: Transformer Coil Winding Machine
• Package: Seaworthy Packing to ensure safe transport
• Max Winding Width: 600mm suitable for various coil sizes
• Control System: Advanced PLC for precise and automated operation
• Round Wire Diameter: Ø0.3 - 5.0mm compatible with different wire gauges
• High-quality Electrical Coil Winding Equipment for efficiency and reliability
• Reliable Transformer Coil Winder designed for professional use

Technical Parameters:

Applications:

The Transformer Coil Winding Machine, available under the OEM / Custom Brand, is a versatile and reliable piece of Electrical Coil Winding Equipment designed to meet diverse industrial needs. This coil winding machine guarantees high quality and safety standards, making it an ideal choice for manufacturers requiring precision and efficiency in coil winding operations.

This Coil Winder Machine is perfect for various application occasions, including the production of transformers and other electromagnetic components. Its capability to handle round wire diameters ranging from Ø0.3 to 5.0mm, combined with a maximum winding width of 600mm and coil height capacity of up to 600mm, makes it suitable for winding a wide range of coil sizes and types.

In manufacturing scenarios where both standard and customized coil winding solutions are required, this Coil Winding Machine excels. The delivery time is efficient, with 35 to 40 days lead time. The machine’s safety features, including emergency stop functions, ensure a safe working environment, reducing downtime and protecting operators.

Ideal for small to large-scale production environments, the Transformer Coil Winding Machine offers flexibility with a minimum order quantity of just one set and a competitive price range of USD 8,000 to 15,000 per set. Packaging is carefully handled with export wooden cases to ensure safe transportation. With a supply ability of 100 sets per year, this equipment supports manufacturers in meeting tight production schedules. Payment terms are flexible, including T/T, facilitating smooth transactions. Whether used in electrical manufacturing plants, coil production workshops, or research and development facilities, this Coil Winder Machine stands out as an essential tool for efficient and precise coil winding tasks.

Customization:

Our Transformer Coil Winding Machine offers exceptional customization services tailored to meet your specific needs. As an OEM / Custom Brand product originating from China, it is certified with CE standard, ensuring high quality and reliability. The machine features a square winding shaft, capable of handling round wire sizes from Ø0.3 to 5.0mm and max flat wire dimensions of 5x12mm, with a maximum transverse width of 600mm. Powered by a 4kw motor, it delivers efficient and precise winding performance.

The minimum order quantity is just 1 set, with prices ranging from USD 8,000 to 15,000 per set. Packaging is carefully managed using export wooden cases to ensure safe delivery. Payment terms include T/T, accommodating your convenience.

With a supply ability of 100 sets per year, we are equipped to fulfill both small and large orders promptly. Choose our CNC Coil Winding Machine customization services for reliable, efficient, and high-quality coil winding solutions.

Support and Services:

Our Transformer Coil Winding Machine is designed to deliver precision, efficiency, and reliability for manufacturing high-quality transformer coils. To ensure optimal performance and longevity of your machine, we provide comprehensive technical support and services.

Technical Support: Our experienced support team is available to assist you with installation, calibration, and troubleshooting of your Transformer Coil Winding Machine. We offer detailed user manuals to guide you through setup and operation procedures. For any technical issues, our experts provide prompt diagnostics and solutions to minimize downtime.

Maintenance Services: Regular maintenance is crucial for maintaining the accuracy and durability of your winding machine. We offer scheduled maintenance services including inspection, cleaning, lubrication, and replacement of worn-out parts. Our maintenance programs are designed to extend the service life of your equipment and ensure consistent winding quality.

Training: To help your team get the most out of the Transformer Coil Winding Machine, we provide comprehensive training sessions covering machine operation, safety protocols, and routine maintenance. Training can be conducted on-site or remotely, tailored to your specific requirements.

Customization:Our engineering team will work closely with you to implement the best solutions.

Spare Parts and Accessories: We supply genuine spare parts and accessories to ensure the continued optimal functioning of your Transformer Coil Winding Machine. Using original parts helps maintain machine accuracy and reliability over time. Our commitment is to provide exceptional support and services to help you maximize productivity and achieve superior winding results with your Transformer Coil Winding Machine.

Packing and Shipping:

Product Packaging:

The Transformer Coil Winding Machine is carefully packed to ensure safe delivery. It is securely placed in a custom-fitted wooden crate with plastic film to protect against shocks and vibrations during transit.

Shipping:

We offer worldwide shipping for the Transformer Coil Winding Machine through reliable freight carriers. The machine can be shipped via air, sea, or land, depending on customer requirements and destination. Shipping schedules and tracking information will be provided upon dispatch. We ensure timely delivery and handle all necessary export documentation to guarantee a smooth shipping process.

FAQ:

Q1: What is the brand name of the Transformer Coil Winding Machine?

A1: The machine is available under OEM or custom brand names, tailored to your requirements.

Q2: Where is the Transformer Coil Winding Machine manufactured?

A2: The machine is manufactured in China, ensuring quality and reliability.

Q3: What certifications does the Transformer Coil Winding Machine have?

A3: Our machine is certified with CE, meeting international quality and safety standards.

Q4: What is the minimum order quantity and pricing for the Transformer Coil Winding Machine?

A4: The minimum order quantity is 1 set, with prices ranging from USD 8,000 to 15,000 per set depending on the model and customization.

Q5: What are the delivery times and payment terms for this machine?

A5: Lead time is 35–40days. Payment terms include T/T.

Q6: How is the Transformer Coil Winding Machine packaged for shipment?

A6: The machine is packed in an export wooden case to ensure safe delivery.

Q7: What is the monthly supply ability for the Transformer Coil Winding Machine?

A7: We can supply up to 100 sets of Transformer Coil Winding Machines per year to meet your demand.
