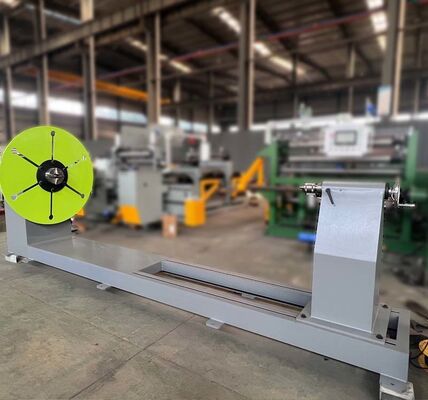

Heavy Duty 10T Horizontal Transformer Coil Winding Machine (WR-10T)

Product Overview

Heavy Duty Horizontal Coil Winding Machine WR-10T is an industrial-grade solution specially designed for manufacturing large transformer coils with high precision and reliability. It is engineered for winding copper and aluminum conductors used in power transformers and other high-voltage electrical equipment. With a maximum loading capacity of 10,000 kg (10 Tons), this horizontal transformer coil winding machine is built to handle large and heavy coil assemblies with excellent stability. The reinforced mechanical structure, high-torque drive system, and advanced frequency inverter control ensure smooth rotation, accurate speed adjustment, and consistent winding quality during long-term industrial operation. Transformer coil winder WR-10T is an ideal choice for transformer manufacturers requiring a reliable, high-capacity winding solution for large-scale coil production.

Key Features & Advantages

10 Ton Heavy-Duty Loading Capacity

The WR-10T horizontal coil winding machine adopts a reinforced steel frame structure and high-strength rotating mechanism, allowing it to safely support transformer coils weighing up to 10 tons. It is suitable for large power transformer coil manufacturing.

High Precision Digital Turn Counting

Equipped with an electronic digital counter, the machine accurately records winding turns from 0 to 9,999.9 turns. This ensures precise control of coil specifications and improves production consistency.

Variable Frequency Speed Control

The winding speed can be continuously adjusted from 0 to 20 rpm through the frequency inverter system. Operators can easily select the appropriate speed according to different conductor sizes, insulation requirements, and winding processes.

High Torque & Stable Operation

The powerful drive system provides strong low-speed torque, ensuring smooth rotation even under maximum load conditions. The soft-start function helps reduce mechanical impact and prevents sudden tension changes during winding.

Convenient Foot Pedal Operation

The heavy-duty foot pedal allows operators to control machine start, stop, and operation rhythm without using their hands, improving working efficiency and operational safety.

Reliable Industrial Design

Designed for continuous industrial production, the coil winding machine WR-10T features a durable structure, low maintenance requirements, and stable performance for demanding transformer manufacturing environments.

Technical Specifications

The following specifications represent the standard configuration of the WR-10T Horizontal Transformer Coil Winding Machine. Customized solutions are available according to customer requirements, including center height, capacity, speed range, and power supply.

Applications

The WR-10T Heavy Duty Horizontal Coil Winding Machine is widely used in:

• Large power transformer manufacturing
• High voltage transformer coil production
• Copper conductor coil manufacturing
• Aluminum conductor coil manufacturing
• Electrical equipment production plants

It is especially suitable for transformer factories requiring high-capacity winding equipment for large and heavy coils.

Working Principle

The WR-10T horizontal transformer coil winding machine uses a powerful motor drive system to rotate the coil through the spindle. During operation, copper or aluminum conductors are evenly wound onto the coil former according to preset parameters. The frequency inverter controls the spindle speed smoothly, while the digital counter monitors the number of winding turns in real time. The combination of precise speed control, strong torque output, and stable mechanical structure ensures uniform winding layers and high-quality transformer coils.

Why Choose WR-10T Transformer Coil Winding Machine?

• 10-ton maximum loading capacity for large transformer coils
• Suitable for copper and aluminum conductor winding
• High torque performance under heavy loads
• Variable frequency speed adjustment from 0–20 rpm
• Accurate digital turn counting system
• Stable operation with low maintenance requirements
• Designed for continuous industrial production
• Customizable configuration for different transformer applications

FAQ

Q1: What is the maximum coil weight capacity of the WR-10T winding machine?

A: The WR-10T horizontal coil winding machine can handle transformer coils with a maximum weight of 10,000 kg (10 tons).

Q2: What type of conductors can this machine wind?

A: The machine is suitable for winding both copper wire and aluminum wire coils used in transformers.

Q3: Can the winding speed be adjusted according to different production requirements?

A: Yes. The frequency inverter system allows stepless speed adjustment from 0 to 20 rpm, making it suitable for different wire sizes and winding processes.

Q4: Is the machine suitable for large power transformer manufacturers?

A: Yes. With its 10-ton capacity and heavy-duty structure, the WR-10T coil winding machine is specifically designed for large transformer coil production.

Q5: Can the machine be customized for different factory requirements?

A: Yes. We can customize loading capacity, center height, spindle dimensions, voltage, and other configurations according to customer requirements.
