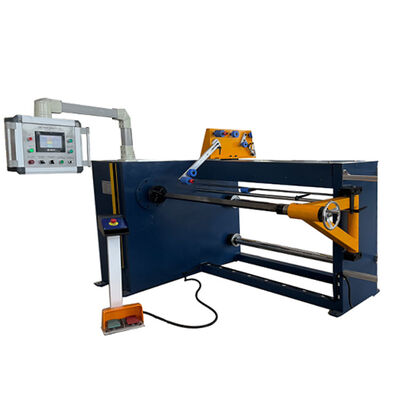

Automatic Wire Laying Transformer Coil Winding Machine ZPX1000

Product Overview

The Automatic Coil Winding Machine ZPX1000 is a high-precision wire winding machine designed for manufacturing transformer coils, electrical coils, and other similar winding products. It is specially developed for automatic winding of copper wire and aluminum wire with excellent accuracy and efficiency. Equipped with a powerful winding motor, servo-driven wire laying system, PLC control system, and HMI touch screen interface, this automatic transformer coil winding machine can complete wire winding and automatic wire arrangement processes with high precision. The servo-controlled wire guide ensures accurate wire positioning during winding, creating evenly arranged coils with consistent quality. With features such as soft starting, smooth operation, high torque output, and easy operation, the ZPX1000 wire winder is an ideal choice for transformer manufacturers requiring reliable and automated coil production equipment.

Key Features and Advantages

Automatic Wire Laying System

The transformer coil winding machine ZPX1000 is equipped with a servo motor-driven wire guide system, which automatically controls wire positioning during the winding process. This automatic laying function ensures:

• Uniform wire arrangement
• Accurate winding pitch
• Improved coil quality
• Reduced manual operation requirements

PLC and HMI Intelligent Control

The machine adopts an advanced PLC control system combined with a user-friendly HMI touch screen.

Operators can easily set and monitor:

• Winding speed
• Winding turns
• Wire laying position
• Production parameters

The intelligent control system improves operation efficiency and ensures stable production performance.

High Torque and Stable Winding Performance

The powerful winding drive system provides large torque output, allowing the machine to handle different copper and aluminum wire specifications.

The soft-start function and smooth acceleration reduce mechanical impact and help maintain stable wire tension during the entire winding process

Wide Application Range

The ZPX1000 automatic wire winding machine is suitable for winding:

• Copper wire coils
• Aluminum wire coils
• Transformer coils
• Other customized winding products

It is widely used in transformer manufacturing plants and electrical equipment industries.

Technical Specifications

The following specifications represent the standard configuration of the Automatic Transformer Coil Winding Machine ZPX1000. Customized designs are available according to different coil sizes, wire specifications, and production requirements.

Applications

The Automatic Wire Winding Machine ZPX1000 is mainly used for manufacturing:

• Power transformer coils
• Distribution transformer coils
• Dry-type transformer coils
• Electrical winding components
• Copper and aluminum conductor coils

It is suitable for transformer manufacturers looking for an automatic, accurate, and efficient coil winding solution.

Working Principle

The automatic transformer coil winding machine ZPX1000 works by rotating the winding shaft while the servo-controlled wire guide moves according to preset parameters. During operation, copper or aluminum wire is automatically fed and precisely positioned onto the coil former. The PLC control system coordinates the winding motor and wire laying system to ensure accurate winding turns, uniform coil layers, and stable production quality. The automatic wire laying function significantly improves winding efficiency compared with traditional manual wire arrangement methods.

Why Choose ZPX1000 Automatic Coil Winding Machine?

• Fully automatic wire winding and wire laying system
• Designed for transformer coil manufacturing
• Suitable for copper wire and aluminum wire
• High precision servo wire guide control
• PLC + HMI intelligent operation system
• Smooth starting and stable running performance
• Strong torque output for industrial applications
• Maximum coil capacity up to 800kg
• Customizable according to customer requirements

FAQ

Q1: What materials can the ZPX1000 coil winding machine process?

A: The machine is designed for winding both copper wire and aluminum wire used in transformer coils and other electrical products.

Q2: Does this machine automatically arrange the wire during winding?

A: Yes. The coil winding machine ZPX1000 uses a servo motor-driven wire guide system to automatically lay and position the wire during the winding process.

Q3: What is the maximum wire size supported by this machine?

A: It can wind round wire from Φ0.3mm to Φ5.0mm and flat wire up to 5×12mm.

Q4: Is the machine easy to operate?

A: Yes. The PLC control system and HMI touch screen provide simple parameter setting and convenient operation.

Q5: Can the machine be customized?

A: Yes. We can customize the winding width, shaft size, capacity, voltage, and other specifications according to customer requirements.
