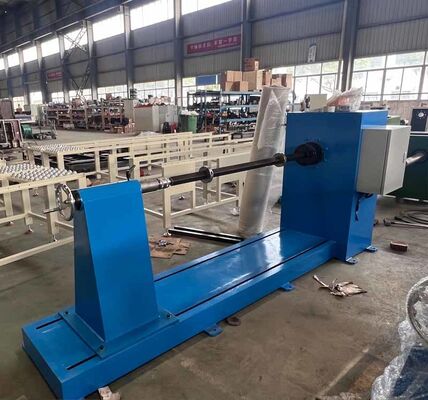

GDY-1T Semi-Automatic Oil Immersed Transformer Coil Winding Machine Heavy-Duty Copper & Aluminum Wire Winder
Meta Description
GDY-1T semi-automatic coil winding machine is designed for oil immersed transformer production. Support 1000kg load capacity, 0-200rpm stepless speed adjustment, fit copper & aluminum wire winding with 800mm max width. Stable & cost-effective transformer wire winding equipment.
Product Introduction
The GDY-1T semi-automatic coil winding machine is a heavy-duty industrial winding equipment tailored specifically for oil immersed transformer coil manufacturing. Optimized for medium and large transformer production scenarios, this copper wire winder delivers robust load-bearing performance and flexible operational adjustability, solving the winding demands of various thick wire and large-size transformer coils. This versatile winding equipment supports mainstream conductive materials including pure copper and aluminum wires with diverse specifications, widely applicable for standardized coil processing of oil immersed transformers and similar electromagnetic equipment. Adopting a human-centered semi-automatic control design, the machine integrates a high-precision digital turn counter and panel-mounted potentiometer for stepless speed regulation. Operators can freely adjust winding speed according to wire thickness and process requirements. Equipped with a foot pedal control module, it realizes instant forward and reverse rotation switching, greatly simplifying operational steps and improving overall production efficiency. Featuring solid mechanical structure, stable running status and low failure rate, it is an ideal cost-effective solution for medium-scale transformer manufacturing factories.
Core Product Highlights
-
Strong Load-Bearing Capacity: Built with reinforced mechanical frame structure, the machine achieves a maximum load capacity of 1000kg, perfectly adapting to heavy-duty winding work for large oil immersed transformer coils.
-
Dual Gear Speed Regulation: Equipped with two-speed gear transmission system, matching 0-200rpm adjustable speed range, realizing flexible switching between high-speed efficient winding and low-speed precise winding.
-
Wide Winding Coverage: The maximum winding width reaches 800mm, compatible with most conventional oil immersed transformer coil sizes, meeting diversified production customization needs.
-
Precision Counting & Stable Speed Control: Digital display counting system ensures accurate winding turn records; panel potentiometer enables smooth stepless speed adjustment without wire bouncing or coil deformation.
-
Labor-Saving Foot Pedal Operation: Independent foot pedal switch controls rotation direction conversion, freeing hands for auxiliary work and improving operation safety and convenience in continuous production.
-
Durable Industrial Configuration: Equipped with 3KW high-power winding motor and reinforced 40x40x1000mm winding shaft, ensuring long-term stable operation and strong structural durability.
Quick Configuration Overview
-
Applicable Materials: Copper wire, aluminum wire for transformer coil production
-
Max Winding Width: 800mm (extended effective winding area)
-
Rated Load Capacity: 1000kg heavy-duty load bearing
-
Matching Power: 3KW high-torque winding motor
-
Shaft Specification: 40x40x1000mm heavy-duty winding shaft
-
Speed Mode: Dual gear speed shifting + stepless speed regulation
Full Technical Specifications
Listed below are the standard technical parameters of the GDY-1T semi-automatic transformer coil winding machine. We support personalized non-standard customization to satisfy unique coil sizes, load demands and production process requirements from global clients.
|
Technical Item
|
Exact Specification
|
|
Machine Center Height
|
1000mm
|
|
Winding Shaft Size
|
40×40×1000mm
|
|
Flange Square Hole Dimension
|
40×40mm
|
|
Adjustable Winding Speed
|
0 ~ 200rpm
|
|
Speed Gear Quantity
|
2 Gears
|
|
Maximum Effective Winding Width
|
800mm
|
|
Counting Range
|
0 ~ 9999.9 Turns
|
|
Max Load Bearing Capacity
|
1000KG
|
|
Rated Motor Power
|
3KW
|
|
Total Machine Weight
|
500 kg
|
|
Overall Dimension (L×W×H)
|
2800×700×1400mm
|
Application Scenarios
The GDY-1T semi-automatic wire winding machine is specially designed for oil immersed transformer manufacturing, widely used in the production of power oil immersed transformers, distribution transformers and industrial voltage transformation equipment. It is perfectly suitable for mass winding processing of medium and large copper/aluminum wire coils, delivering stable processing quality and high production efficiency for transformer manufacturing enterprises.
Frequently Asked Questions
Q: What kind of transformers is this winding machine suitable for? A: It is professionally optimized for oil immersed transformers and supports coil production for most industrial and power distribution transformers with heavy-load and wide-width processing capabilities.
Q: Does this machine support speed fine-tuning? A: Yes. It adopts dual gear shifting plus stepless speed regulation via panel potentiometer, which can fine-tune the speed to adapt to different wire diameters and winding precision requirements.
Q: Is the counting data accurate during long-time operation? A: Equipped with a high-precision digital counter, the machine supports 0-9999.9 turn counting, ensuring stable and accurate data recording for long-term batch production.
