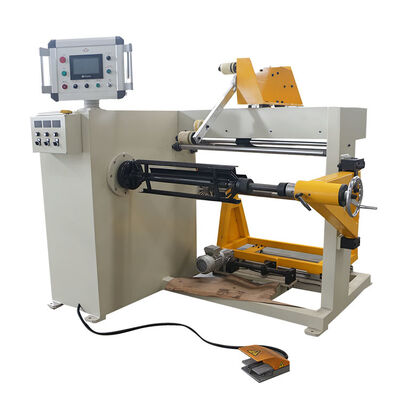

Max 800mm Winding Width Automatic Coil Winding Machine Flat & Round Copper Aluminum Wire Winder
Overview – ZPX800 Automatic Coil Winding Machine
The ZPX800 full-automatic coil winding machine is a versatile, heavy-duty winding solution engineered specifically for medium and large-size coil manufacturing. This kind of coil winding machine supports universal processing of copper and aluminum wire, flat rectangular and round wire, with a maximum winding width reaching 800mm. It perfectly adapts to high-standard production of transformers and other similar products. Powered by an upgraded PLC programmable control system and intelligent HMI touch screen, the coil winding machine realizes fully automated, high-precision layered winding. It supports one-click storage and recall of multiple production recipes, compatible with automatic continuous operation and manual intermittent fine-tuning modes. With frequency conversion speed regulation and constant tension control structure, it effectively eliminates wire overlapping, gaps, loosening and stretching defects, ensuring consistent coil uniformity and stable electrical performance in mass production.
Core Unique Advantages (Differentiated Features)
Different from ordinary single-function winding equipment on the market, the ZPX800 model coil winding machine adopts an upgraded universal winding structure, with comprehensive breakthroughs in compatibility, precision and operability, bringing higher production efficiency and lower failure rate for industrial manufacturers:
-
Full Material & Shape Compatibility: Unique adjustable wire guide and self-adaptive tension system, freely switching between copper/aluminum wire and flat/round wire processing without replacing accessories, realizing multi-scene production with one machine.
-
800mm Ultra-Wide Precise Winding: Optimized heavy-duty spindle and synchronous traversing mechanism, stably completing 800mm full-width coil winding. The layered arrangement is neat and compact, meeting the dimensional precision requirements of large power coils.
-
Intelligent Recipe Memory & Fast Switching: Supports custom storage of multiple coil parameter recipes. Frequent product switching only needs one-click recall, avoiding repeated parameter setting and greatly saving debugging time.
-
Dual-Mode Flexible Operation: Integrates fully automatic batch winding and manual intermittent fine winding, suitable for both standardized mass production and customized small-batch precision processing.
-
Stable & Low-Maintenance Structure: Frequency inverter stepless speed regulation ensures smooth operation without jitter. The reinforced mechanical frame resists long-term heavy-load operation deformation, extending equipment service life and reducing later maintenance costs.
-
Global Voltage Adaptability: Supports 380V/415V/440V three-phase power supply with customizable parameters, perfectly matching the power standards of different countries and regions for seamless factory integration.
Complete Technical Parameters
All parameters of the ZPX800 automatic coil winding machine adopt industrial standard configuration, and can be professionally customized according to customer’s wire specification, coil size and production environment requirements:
|
Specification Item
|
Detailed Technical Parameters
|
|
Equipment Model
|
ZPX800
|
|
Maximum Winding Width
|
800mm
|
|
Applicable Wire Materials
|
Copper Wire, Aluminum Wire
|
|
Applicable Wire Shapes
|
Round Wire, Flat (Rectangular) Wire
|
|
Control System
|
Advanced PLC Programmable Control + HMI Touch Screen
|
|
Operation Mode
|
Fully Automatic / Manual Intermittent Dual Mode
|
|
Winding Speed Control
|
Frequency Inverter Stepless Adjustable Speed
|
|
Power Supply Standard
|
3-Phase 380V/415V/440V (Customizable)
|
Professional Application Fields
With its strong compatibility and high-precision winding capability, the ZPX800 wide-width coil winding machine covers the whole industry chain of power electrical manufacturing, widely used in the following scenarios:
Working Principle & Operation Flow
The ZPX800 winding machine adopts PLC synchronous linkage control technology, realizing precise and intelligent full-process winding. The standardized working flow is stable and efficient:
-
Adaptive Wire Tensioning: Equipped with a universal tension control system. According to copper/aluminum, flat/round wire characteristics, it automatically adjusts tension force to avoid wire loosening, rebound or tensile deformation during operation.
-
Parameter Programming & Recipe Setting: Operators input core parameters including coil width, wire diameter, winding turns and pitch via the touch screen. Custom parameters can be saved as fixed recipes for repeated use.
-
Synchronous Automatic Winding & Traversing: The spindle rotation and traversing mechanism operate synchronously under PLC precise scheduling. The wire is arranged layer by layer without overlap or gap, realizing flat and compact coil forming.
-
Intelligent Stop & Automatic Counting: The system counts turns in real time. When reaching the preset value, the machine automatically decelerates and stops stably, preventing coil displacement caused by sudden stop and facilitating safe unloading.
Professional Buying Guide & Customization Tips
To match the most suitable equipment configuration for your production line and maximize production efficiency, please confirm the following core parameters before purchasing:
-
Wire Specification Matching: Confirm the maximum gauge of round wire and cross-section size of flat wire used in production to ensure matching of wire guide pulley and tensioning system.
-
Coil Load Requirements: For heavy 800mm ultra-wide coils, inform us of the maximum coil weight to customize high-torque motor and reinforced tailstock structure for stable heavy-load operation.
-
Local Power Voltage: Provide local industrial voltage and frequency standards (such as 380V 50Hz / 480V 60Hz) to complete power system customization and ensure plug-and-play use.
FAQ – Customer Common Questions
We have sorted out the most concerned questions of global buyers to help you quickly understand the equipment performance and after-sales service:
Q1: Can one machine switch between flat/round wire and copper/aluminum wire production freely?
A: Yes. The ZPX800 is equipped with a universal adaptive tension structure and adjustable wire guides. It can quickly complete parameter calibration and scene switching without replacing core parts, realizing multi-type wire compatible production with a single device.
Q2: Is PLC parameter programming difficult for new operators?
A: The English HMI touch screen features a simple and intuitive operation interface. It supports one-click recall of stored recipes. For new products, only basic parameter input is required. We provide detailed operation tutorials to help operators master it quickly.
Q3: What overseas technical support can you provide?
A: We provide full set of English user manuals, remote online debugging and lifelong technical consultation. For large overseas projects, we can arrange professional engineers to go to the site for equipment installation, commissioning and staff operation training.
Get Customized Quotation
If you have coil winding production demands for copper/aluminum, flat/round wire, our professional engineering team can provide targeted equipment configuration and customized solutions according to your product parameters. Send us your wire size, coil width and output requirements, and we will reply with a detailed quotation within 24 hours.
Meta Description
ZPX800 800mm width automatic coil winding machine supports flat & round copper/aluminum wire, PLC intelligent control, dual operation mode, ideal for transformer, reactor and new energy coil manufacturing.
