GDY-3T Semi-Automatic Winding Machine for Transformer Coil Manufacturing
Description of transformer coil winding machine GDY-3T
GDY-3T semi-automatic winding machine provides stable winding control, easy operation, and reliable performance for transformer coil production. The GDY-3T semi-automatic coil winding machine is designed for transformer coil manufacturing, offering stable performance, easy operation, and flexible production capability. This kind of coil winding machine is suitable for winding copper wire, aluminum wire, and other conductors used in transformer coils and electrical equipment. For transformer manufacturers, coil winding quality directly affects electrical performance, insulation reliability, temperature rise, and long-term service life. The GDY-3T coil winding machine helps operators improve winding accuracy and production efficiency while reducing the workload of manual winding. With a practical mechanical structure and semi-automatic control system, the GDY-3T coil winding machine is a cost-effective choice for factories producing distribution transformers, oil-immersed transformers, dry-type transformers, and customized electrical coils.
Key Advantages of GDY-3T Coil Winding Machine
| Feature |
Benefit |
| Semi-automatic operation |
Improves efficiency compared with manual winding |
| Stable winding performance |
Helps achieve consistent coil quality |
| Easy control system |
Simple for operators to learn and use |
| Strong machine structure |
Suitable for daily industrial production |
| Wide conductor compatibility |
Supports copper wire, aluminum wire, and other winding materials |
| Flexible application |
Suitable for different transformer coil requirements |
| Customizable configuration |
Can be adjusted according to production needs |
The GDY-3T semi-automatic winding machine can be used in various coil production processes, including:
| Application |
Use |
| Transformer coil winding |
Producing coils for power and distribution transformers |
| Oil-immersed transformer production |
Suitable for low-voltage and high-voltage coil winding |
| Dry-type transformer production |
Supports stable conductor winding and coil forming |
| Electrical coil manufacturing |
Used for customized coil production |
| Repair and maintenance workshops |
Suitable for transformer repair and coil replacement |
Why Choose GDY-3T?
The GDY-3T semi-automatic winding machine is built for manufacturers that require stable coil winding, simple operation, and dependable machine performance. Compared with manual winding, this kind of coil winding machine helps improve production speed and winding consistency. Compared with fully automatic machines, this kind of coil winding machine offers a more economical solution with greater operational flexibility. This coil winding machine can help factories reduce operator fatigue, minimize winding errors, and improve overall coil appearance. Its semi-automatic design allows operators to control key winding parameters while maintaining efficient production flow.
Custom Configuration Available
The GDY-3T coil winding machine can be customized according to customer requirements, including winding speed, winding torque, coil size, conductor type, control system, fixture design, and production line layout. To provide a suitable technical proposal, customers are encouraged to share coil drawings, conductor specifications, maximum coil size, winding process requirements, and workshop voltage.
Main parameters of transformer coil winding machine GDY-3T
Typical standard specifications of transformer coil winding machine GDY-3T are shown below and the coil winding machine can also be manufactured as requested.
|
Central Height:
|
1000mm
|
|
Distance Between Ends:
|
2000mm
|
|
Square Shaft Size:
|
50x50mm
|
|
Winding Speed:
|
0 ~ 40rpm
|
|
Maximum Transverse Length:
|
1800mm
|
|
Counting Range:
|
0 ~ 9999.9
|
|
Maximum Loading Capacity:
|
3000KG
|
|
Motor Power:
|
7.5KW
|
|
Colour:
|
Optional
|

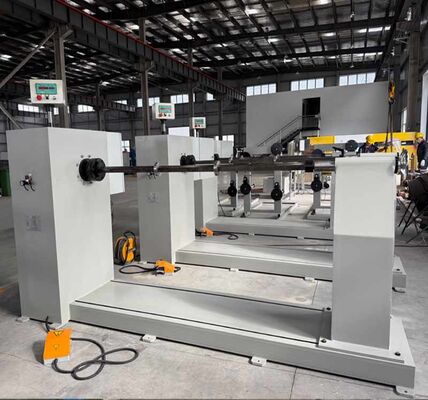

Fig 1: Transformer coil winding machine GDY-3T's full view
Fig 2: Transformer coil winding machine GDY-3T's control panel
FAQ
Q1 What is the GDY-3T coil winding machine used for?
The GDY-3T coil winding machine is used for semi-automatic winding of transformer coils and electrical coils. It is suitable for transformer manufacturers, coil production workshops, and repair facilities.
Q2 Is the GDY-3T coil winding machine a fully automatic machine?
A2 No. The GDY-3T coil winding machine is a semi-automatic winding machine. It improves winding efficiency while still allowing operators to control and adjust the winding process.
Q3 What materials can the GDY-3T wind?
A3 The machine can be used for copper wire, aluminum wire, and other conductors commonly used in transformer coil production.
Q4 Can the GDY-3T coil winding machine be customized?
A4 Yes. The machine can be customized according to coil size, conductor specifications, winding speed, control requirements, and factory production layout.
