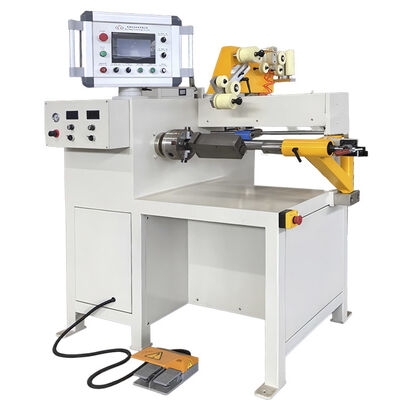

3kw Transformer Coil Winding Machine with 1000mm Center Height and 4-Jaw Chuck Transformer Coil Winder

CNC Automatic Transformer Coil Winding Machine Precision Wire Winder

CNC transformer coil winder with 1000mm center height and 4-jaw chuck. Handles copper/aluminum round & flat wire, preset turn counter up to 9999.9. CE certified, 12-month warranty, custom options available.

Product Description

Boost your coil fabrication throughput with this CNC automatic transformer coil winding machine, built for consistent, repeatable winding results in electrical component manufacturing. Built around a 1000 mm center height design, this coil winder accommodates a broad spectrum of transformer coil sizes, from compact intricate windings to large heavy-duty coils. The 4-jaw spindle chuck firmly locks winding moulds, speeding up mould changeover downtime for transformer workshops. Precision counting is central to stable coil quality. This kind of winding machine supports turn counting up to 9999.9, letting operators lock in exact winding parameters. This directly stabilizes coil electrical performance and keeps finished transformers within design tolerances. The coil winding machine works seamlessly with copper and aluminum conductors: round wire from 0.3 mm to 5.0 mm, plus flat wire up to 5×12 mm, giving you material flexibility for different transformer projects and cost planning. The winding machine features intuitive automated controls to lower manual work and human error. Its heavy-duty frame reduces long-term maintenance and extends service life.

Customisation is supported. OEM branding, custom colours and tailored winding specs are available to match your production line layout.

Key Features

• Center height: 1000 mm

• 4-jaw chuck for secure mould clamping

• Round wire range: 0.3–5.0 mm; Max flat wire: 5×12 mm

• Counting resolution: up to 9999.9 turns

• Compatible with copper & aluminum conductors

• CE certified, 12-month warranty

• Optional custom colour and OEM branding

Technical Specifications

• Type: CNC Automatic Transformer Coil Winding Machine

• Conductors: Copper / Aluminum wire

• Round wire diameter: 0.3 – 5.0 mm

• Max flat wire dimension: 5 × 12 mm

• Headstock: 4-jaw chuck

• Center height: 1000 mm

• Power supply: 3-phase 380V

• Colour: Customisable

Applications

This precision coil winding equipment is widely adopted to produce coils for distribution transformers, reactors and other electromagnetic assemblies. It fits small batch workshops as well as large-scale transformer production lines.

Support & Services

We supply full technical guidance including installation, calibration, operator training and troubleshooting. Critical spare parts are stocked for fast delivery to minimise production stops. Scheduled maintenance guidance is also provided to keep the machine operating steadily.

FAQ

Q: What is the MOQ? A: Minimum order quantity is 1 set.

Q: What certification does this machine hold? A: It is CE certified.

Q: What payment terms are accepted? A: T/T is available.

Q: How long is the delivery cycle? A: 35–40 working days.

Q: How is the machine packed? A: Export wooden case for overseas shipment.

Disclaimer: All technical data for reference only. Final specs subject to confirmed drawings.
