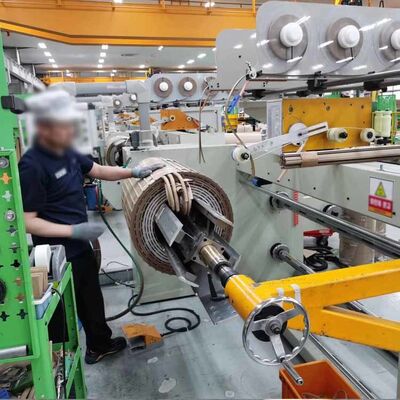

Heavy-Duty 7.5kw Automatic Coil Winding Machine PLC and HMI Controlled Transformer Coil Winding Machine

Heavy-Duty Automatic Transformer Coil Winding Machine PLC and HMI Controlled

ZPX1400 PLC transformer coil winder, 900mm center height, max coil weight 1000kg. Supports copper & aluminum round/rectangular wire, stepless speed, slow-start smooth operation, custom specs available.

Product Description

The ZPX1400 heavy-duty automatic coil winder is purpose-built for transformer and electromagnetic coil fabrication. Compatible with copper and aluminum conductors, the coil winding machine handles both round wire and rectangular flat wire to satisfy diverse transformer production requirements. This winding unit adopts a reliable PLC and HMI touchscreen control architecture, delivering straightforward parameter setup and intuitive operation for your workshop team. Operators can adjust rotation speed conveniently via the potentiometer integrated on the display panel, featuring stepless speed regulation ranging from 0 to 60 rpm. A key advantage of the ZPX1400 coil winding machine is its soft slow-start function. This design prevents sudden tension spikes on conductors and insulation materials, protecting wire integrity and guaranteeing stable, vibration-free operation during long production runs. It outputs consistent high torque and maintains excellent winding precision, ideal for manufacturing large, heavy transformer coils. It comes equipped with one insulation decoiler to streamline insulation laying during winding. The built-in 5-digit turn counter supports preset winding turns up to 9999.9, helping you standardize coil specs and cut manual counting errors. We support custom engineering beyond the listed standard parameters. Modifications can be made to match your unique coil dimensions and production workflow.

Key Features

• Soft slow start, shock-free operation

• Stepless speed adjustment 0–60 rpm

• PLC + HMI intelligent control, simple operation

• High torque output for heavy coils

• High winding precision, 5-digit preset counting

• Complete functional configuration for transformer winding

• 1 set insulation decoiler included

Technical Specifications

All standard data shown for reference only; custom design is available upon request.

• Model: ZPX1400 Heavy-Duty Transformer Coil Winding Machine

• Center Height: 900 mm

• Winding Shaft: 50×50×1700 mm

• Insulation Decoiler: 1 pc

• Winding Motor Power: 7.5 Kw

• Winding Speed: 0 ~ 60 rpm

• Speed Control: Stepless speed regulation

• Max Rectangular Wire Size: 5×14 mm

• Round Wire Diameter: Φ0.3 ~ 5.0 mm

• Max Winding Coil Height: 1400 mm

• Maximum Coil Weight: 1000 kg

• Counting: 5-digit counter

• Preset Max Turns: 9999.9

• Counting Range: 0 ~ 9999.9

Disclaimer: All technical figures are approximate reference values. Final specifications subject to confirmed drawings.

Automatic coil winding machine ZPX1400's front view
