Programmable Reactor Coil Winding Machine with 1000mm Winding Width and Dual-Motor Synchronous Drive

Programmable Reactor Coil Winding Machine 1000mm Winding Width Dual-Motor Synchronous Drive

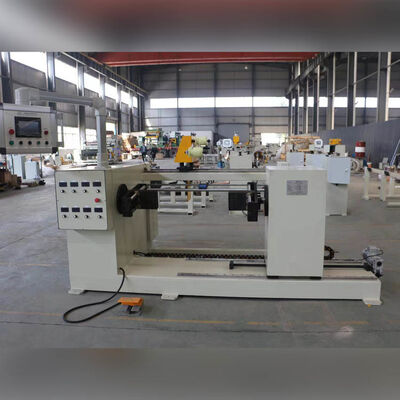

ZPX1000 core-clamping reactor coil winder with 1000mm winding width, dual-motor synchronous drive and servo wire guide. PLC+HMI control, handles copper & aluminum round/flat wire, ideal for new energy and power reactor production.

Product Overview

Engineered for high-volume manufacturing of wide-format reactor coils, the ZPX1000 programmable automatic winding machine delivers consistent, repeatable winding results for power reactor and inductance component production. The coil winding machine adopts a dual-motor synchronous spindle layout paired with servo traverse control, solving common pain points found on conventional single-drive winders including uneven torque, wire misalignment, jerky startup and unstable stopping performance. Supporting both copper and aluminum conductors in round and flat configurations, this core-clamping winding system runs on a proven PLC programmable controller integrated with a colour HMI touchscreen. Operators benefit from stepless speed regulation, soft-start ramping and steady traction throughout the winding cycle. Built for precision and long-term mechanical stability, it is a reliable automation solution for standardized batch production of reactors and related electromagnetic coils.

Core Advantages & Key Features

The ZPX1000 coil winding machine stands apart from basic winding equipment through its synchronized dual-chuck structure and servo-guided wire arrangement, bringing measurable gains in yield, stability and ease of operation:

• Dual-Motor Synchronous Spindles for Balanced Torque Dual independent drive motors synchronize the two clamping chucks, delivering matched torque across both ends of the workpiece. This eliminates core wobble and winding drift under heavy load conditions.

• Servo Wire Traverse System for Smooth Start & Stop High-precision servo motor governs the wire guide movement. Accelerate and decelerate gradually without wire jumping, overlapping or displacement, greatly improving coil forming quality.

• Broad Wire Compatibility Accommodates round wire from 0.3 mm to 5.0 mm and flat conductors up to 5×12 mm for copper or aluminium, covering most reactor coil design specifications.

• Robust Industrial Frame for Continuous Shifts Heavy-duty mechanical construction supports a maximum load of 1000 kg, powered by a 4.4 kW main drive motor. Low wear and minimal downtime make it suitable for non-stop factory production schedules.

• Intuitive HMI Operation & Recipe Storage Colour touchscreen interface simplifies parameter entry and program saving. New operators can master setup quickly with minimal training.

• 12-month Full Machine Warranty Global customers receive one-year factory warranty, backed by professional technical guidance and after-sales support.

Technical Specifications

All figures are standard reference values; customised modifications are available to match your production requirements.

Working Principle

The ZPX1000 coil winding machine uses a dual-spindle synchronous clamping design. Two chucks securely grip the reactor core, while synchronized motors rotate the workpiece to maintain balanced torque output. The servo wire guide tracks spindle rotation in real time, controlling wire path and lay pitch accurately. Operators input target turns and pitch parameters on the HMI. The controller executes the whole winding sequence automatically with soft start and precise stop. Manual intervention and human error are reduced, resulting in neatly arranged conductors, compact coil layers and consistent electrical characteristics for finished reactors.

Applications

This programmable winding equipment is built for medium and large reactor coil mass production. The coil winding machine serves power equipment manufacturers, new energy generation projects, industrial control and electrical engineering sectors. Typical products include filter reactors, power factor compensation reactors, inverter reactors and custom wide-width inductance coils. It is widely adopted as standard production machinery by mid-to-high-end electrical component factories.

FAQ

Q: Can this machine wind both flat wire and round wire reactor coils?

A: Yes. It supports copper and aluminum round wire (0.3–5.0 mm) as well as flat wire up to 5×12 mm. The wire guide and tension assembly can be adjusted rapidly to switch wire sizes for flexible batch changeover.

Q: What benefits does dual-motor synchronous drive offer compared to single-drive winders?

A: Synchronized torque prevents core shaking and winding offset during wide-width, heavy-load winding. Wire layers stay uniform with fewer gaps and misalignment, raising the pass rate of high-precision reactor coils.

Q: Is it friendly for inexperienced operators?

A: The colour touchscreen supports recipe saving and visual parameter setup. After short training, staff can configure programs and run the machine with one-click start and stop, lowering reliance on skilled workers.

Disclaimer: All technical data for reference only. Final specifications subject to confirmed drawings.
