Product Details:
Payment & Shipping Terms:
|
| Name: | Transformer Foil Winding Machine | Application: | Winding Strip Coil |
|---|---|---|---|
| Rotating Power: | 15kw | Rotating Speed: | 20 Rpm |
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Color: | Customizable | Warranty: | 1 Year |
| High Light: | Aluminium Strip lv foil winding machine,20 rpm Automatic lv winding machine,15kw TIG Process lv foil winding machine |
||
Automatic TIG Process Aluminium Strip Winder LV Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1200-2
LV transformer foil winding machine BRJ1200-2 is provided with 15kw Motor for driving the winding shaft and TIG welding machine for welding foil with bus bar together. This kind of transformer foil winding machine can wind copper foil with copper bus bar together and aluminium foil with aluminium bus bar together. Two pieces of foil decoilers and two insulation decoilers are provided for the transformer foil winding machine. Photoelectric sensors are used in the transformer foil winding machine to make sure the foil edge is neat when winding. In the transformer foil winding machine, pressing rollers are used to make the foil not reverse when the machine stops winding. The control system of the transformer foil winding machine is based on PLC , which can control the machine precisely. Touch screen interface makes the operation very easy and intuitive when operating the transformer foil winding machine.
Main Components of transformer foil winding machine
Main frame, Winding unit, Foil decoiler, Insulation decoiler, End-fill strip feeder, Cleaning system, Cutting system, Foil deburring system, Edge alignment system, Automatic welding unit, Electronic control system and Pneumatic system, etc.
Technical Parameters of transformer foil winding machine BRJ1200-2
Typical standard specifications of transformer foil winding machine BRJ1000-2 are shown below, however these can be easily modified as requested.
| Axial Length (foil width): | 1,200mm |
| Max. OD. of Finished Coil: | 1,000mm |
| Max. ID. of Finished Coil: | 130mm |
| Finished Coil Shape: | oval, circle and rectangular, etc |
| Conductor Foil Material: | Copper or Aluminum |
| Foil Thickness Min. and Max. (Aluminum): | 0.3 - 3.0 mm |
| Foil Thickness Min. and Max. (Copper): | 0.2 - 2.0 mm |
| Conductor Foil Material OD.: | 1,000mm |
| Conductor Foil Material ID.: | 500mm |
| Conductor Decoiler Diameter: | adjustable range 400-520mm |
| Winding Power: | 15KW |
| Winding speed: | 20 rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric rolling shear |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing automatic rectifying deviation |
| Rectification Precision: | ±0.5mm |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 - 9999.9 |

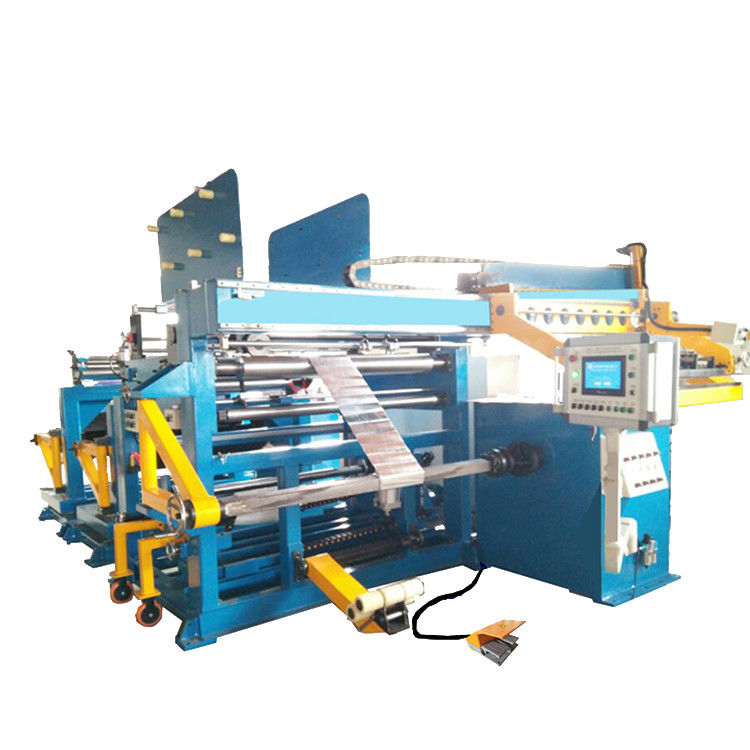

Fig 1: Transformer foil winding machine BRJ1200-2's front view

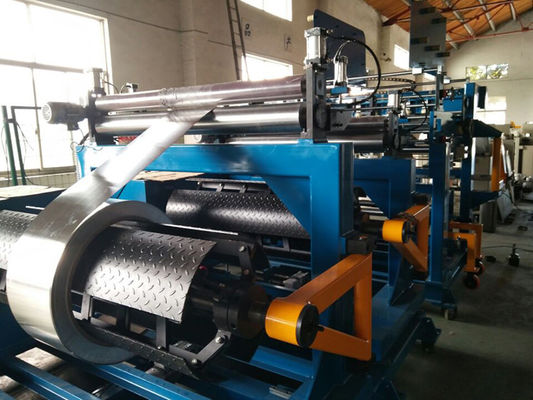

Fig 2: Transformer foil winding machine BRJ1200-2's side view
