Automatic Corrugated Fin Forming Machine For Transformer Oil Tank

Automatic Corrugated Fin Forming Machine For Transformer Oil Tank

Automatic Corrugated Fin Forming Machine For Transformer Oil Tank
Automatic Corrugated Fin Forming Machine For Transformer Oil Tank

Large Image :  Automatic Corrugated Fin Forming Machine For Transformer Oil Tank Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BWX1600-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 60 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Corrugated Fin Making Machine Plate Width: 300 ~ 1600mm
Fin Height: 50 ~ 400mm Fin Pitch: 45 ~ 60mm
Fin Length: ≤2000mm Color: Optional
Oil Groove: 4mm Welding Machine: 2 Sets
High Light:

Automatic Corrugated Fin Forming Machine

,

Oil Tank Corrugated Fin Making Machine

,

Automatic Corrugated Fin Making Machine

Automatic Corrugated Fin Forming Machine Making Fin For Transformer Oil Tank





Description of corrugated fin forming machine BWX1600-400



Automatic corrugated fin forming machine BWX1600-400 is mainly used to fold steel plate to make corrugated fins. The corrugated fins is used to make transformer oil tank. The full set of corrugated fin forming machine is composed of corrugated fin folding machine, automatic corrugated fin welding machine, hydraulic decoiler, hydraulic station and industrial oil cooler.





Main components of corrugated fin forming machine BWX1600-400



1. Corrugated fin forming machine

2. Welding machine

3. Decoiler

4. Oil cooler





Quick details of corrugated fin forming machine BWX1600-400



  • Corrugated fin forming machine
  • Steel plate width 300 ~ 1600mm
  • Steel plate thickness 0.5 ~ 1.75mm
  • One year warranty



Main parameters of corrugated fin forming machine BWX1600-400



Typical standard specifications of corrugated fin forming machine BWX1600-400 are shown below, however the fin forming machine can also be manufactured as requested.



Steel Plate Width: 300 ~ 1600mm
Steel Plate Thickness: 0.5 ~ 1.75mm
Corrugated Fin Height: 50 ~ 400mm
Corrugated Fin Pitch: 45 ~ 60mm
Corrugated Fin Length 2000mm, maximum
Fin Gap(oil groove): 4mm
Corrugated Fin Front Section Length: ≥30mm
Corrugated Fin Back Section Length: ≥30mm
Molding speed: 3 ~ 4 fins/min
Total Weight: 16000KG
Floor Space: 9m x 7m
Total Motor Power: 32kw
Voltage: 3-phase 380V 50Hz



Automatic Corrugated Fin Forming Machine For Transformer Oil Tank 0

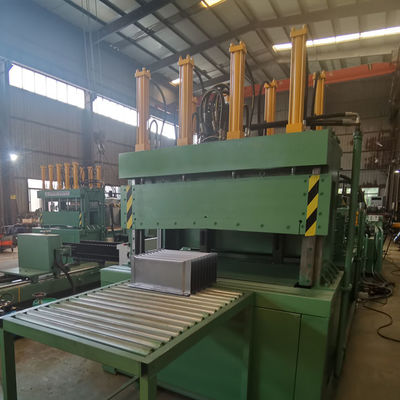

Fig 1: Corrugated fin forming machine BWX1600-400's forming unit



Automatic Corrugated Fin Forming Machine For Transformer Oil Tank 1

Fig 2: Corrugated fin forming machine BWX1600-400's welding machine



Automatic Corrugated Fin Forming Machine For Transformer Oil Tank 2

Automatic Corrugated Fin Forming Machine For Transformer Oil Tank 3Automatic Corrugated Fin Forming Machine For Transformer Oil Tank 4

Automatic Corrugated Fin Forming Machine For Transformer Oil Tank 5Automatic Corrugated Fin Forming Machine For Transformer Oil Tank 6

Automatic Corrugated Fin Forming Machine For Transformer Oil Tank 7Automatic Corrugated Fin Forming Machine For Transformer Oil Tank 8
