| Product Name: | Cold Welding Foil Winding Machine | Function: | Winding Foil |
|---|---|---|---|
| Foil Width: | Maximum 200mm | Foil Thickness: | 0.2 - 3mm |
| Motor Power: | 4kw | Decoiler: | One |
| Color: | As Per Requirements | Warranty: | 12 Months |
| Highlight: | Cu Foil Transformer Foil Winding Machine,Cold Welding Strip Winding Machine,Aluminium Strip Winding Machine |
||
Automatic Cold Welding Cu or Al Strip Film Winder Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ200
Cold welding transformer foil winding machine BRJ200 is a professional winding machine for winding copper or aluminium film strip to make transformer coil and other similar products. The foil winding machine can be used to handle one layer of copper or aluminium strip with max width 200mm and one layer of insulation paper. The foil winding machine adopts servo motor to drive, which assures the precise winding. The foil decoiler is used to place foil material, the expansible range of foil decoiler can be customized as per needs.
Quick details of transformer foil winding machine BRJ200
Technical parameters of transformer foil winding machine BRJ200
Typical standard specifications of foil winding machine BRJ200 are shown below, however, the foil winding machine can also be manufactured as requested.
| Foil Width: | 50 ~ 200mm |
| Maximum Wound Coil OD. : | 600mm |
| Conductor Foil Material: | Copper or aluminum |
| Cu Foil Thickness: | 0.2-2.0mm |
| Al Foil Thickness: | 0.3-3.0mm |
| Foil Material ID.: | 500mm |
| Foil Material OD.: | ≤ 1000mm |
| Foil Decoiler Number: | 1 pc |
| Foil Decoiler Length: | 250mm |
| Foil Decoiler Expanding Range: | Φ420 ~ Φ520mm |
| Rectifying Mode: | Photoelectric sensing |
| Rectifying Deviation Precision: | ±0.5mm |
| Cleaning Unit: | pneumatic |
| Insulation Paper Decoiler Number: | 1set |
| Insulation Paper Coil OD.: | ≤ 400mm |
| Insulation Paper Coil ID.: | 76mm |
| Insulation Decoiler Width: | 250mm |
| Insulation Paper Decoiler Shaft: | Expandable (pneumatic open/close action) |
| Winding Speed: | 0 ~60 RPM |
| Max. Working Torque: | 3,000N.m. |
| Winding Power: | 4kw |
| Cold Welding Device: | 1 set |
| Positioning Device: | 1set |
| Grinding Device: | 1 set |
| Cold Welding Mould: | 6 sets |
| Control system: | PLC |
| Operation Interface: | Touch screen |
| Counting Range: | 0 - 9999.9 |

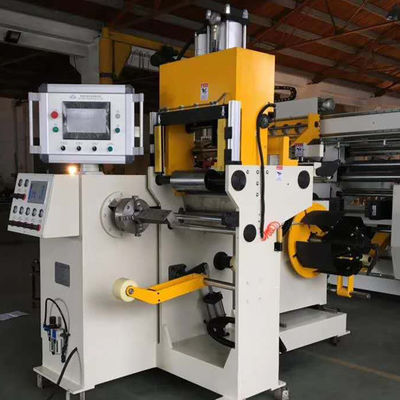

Fig 1: Transformer foil winding machine BRJ200's full view
Fig 1: Transformer foil winding machine BRJ200's side view
