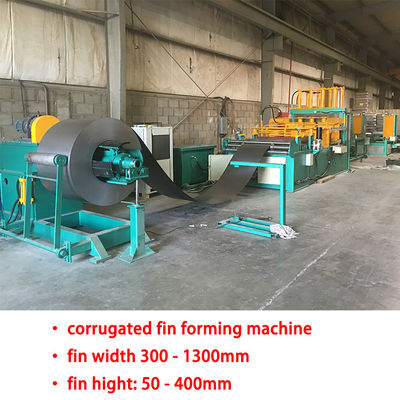

Corrugated Fin Forming Machine For Making Transformer Oil Tank

Corrugated Fin Forming Machine For Making Transformer Oil Tank

Corrugated Fin Forming Machine For Making Transformer Oil Tank
Corrugated Fin Forming Machine For Making Transformer Oil Tank

Large Image :  Corrugated Fin Forming Machine For Making Transformer Oil Tank Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BWX1300-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Corrugated Fin Forming Machine Strip Width: 300 ~ 1300mm
Fin Height: 50 ~ 400mm Fin Pitch: ≥40mm
Feeding Speed: 4 Fins/min Usage: Making Transformer Oil Tank
Warranty Period: 12 Months
High Light:

400mm Height Corrugated Fin Forming Machine

,

4 Fins/Min Corrugated Fin Forming Machine

,

Oil Tank Corrugated Fin Forming Machine

Corrugated Fin Forming Machine for Making Transformer Oil Tank





Description of Corrugated Fin forming machine BWX1300-400



Transformer corrugated fin forming machine BWX1300-400 is a professional equipment for producing corrugated fin to make transformer oil tank walls. The corrugated fin forming machine can adjust fin pitch and fin height according to the parameters preset, the fin quantity can be also preset. The corrugated fin forming machine is composed of guide mechanism, hydraulic forming unit, hydraulic cutting unit, etc. It is easy to operate, adjust and maintain.





Quick details of corrugated fin forming machine BWX1300-400

  • Steel coil width 300~1300mm
  • Sheet thickness 0.5~1.75mm
  • Fin width 300~1300mm
  • Fin height 50~400mm

Main parameters of corrugated fin forming machine BWX1300-400



Typical standard specifications of corrugated fin forming machine BWX1300-400 are shown below, however, the corrugated fin forming machine can also be manufactured as requested.

Item BWX1300-400
Steel Width: 300~1300mm
Steel Sheet Thickness: 0.5~1.75mm
Fin Width: 300~1300mm
Fin Height: 50~400mm
Distance Between Fins: >40mm
Fin Gap(oil groove): >4mm
Forming Speed: 3~4 fins/min
Power: 380V 30KW

Corrugated Fin Forming Machine For Making Transformer Oil Tank 0

Fig 1: Corrugated fin forming macihne BWX1300-400's side view



Corrugated Fin Forming Machine For Making Transformer Oil Tank 1

Fig 2: Corrugated fin forming machine BWX1300-400's decoiler



Corrugated Fin Forming Machine For Making Transformer Oil Tank 2Corrugated Fin Forming Machine For Making Transformer Oil Tank 3Corrugated Fin Forming Machine For Making Transformer Oil Tank 4Corrugated Fin Forming Machine For Making Transformer Oil Tank 5Corrugated Fin Forming Machine For Making Transformer Oil Tank 6
