Description of transformer foil winding machine BRJ800-2

Transformer foil winding machine BRJ800-2 is mainly used for winding copper or aluminium strip with maximum width 800mm, which can make cast resin transformer coil. Transformer foil winding machine can handle one or two layers of foil and one or two layers of insulation paper. With 15kw motor, the foil winding machine provide big torque to wind the foil with maximum width 800mm. TIG welding unit is also adopted to weld copper bar or aluminium bar with copper foil or aluminium foil together. With a touch screen, it is very easy to operate the foil winding machine.

Quick details of transformer foil winding machine  BRJ800-2

1) Two foil dereelers

2) Two insulation paper dereeleres

4) End-fill strip feeder

5) Cleaning unit

6) Deburring unit

7) Edge alignment system

8) TIG welding unit

Technical parameters of transformer foil winding machine BRJ800-2

Typical standard specifications of transformer foil winding machine BRJ800-2 are shown below, however these can be easily modified as requested.

• Maximum foil width 800mm
• Foil type copper foil or aluminium foil
• Foil roll inner diameter 500mm (optional)
• Foil roll outer diameter 1000mm(optional)
• Foil dereeler number 2 pcs
• Foil dereeler length 850mm
• Foil dereeler expanding range 420 - 520mm
• Winding shaft size 80x80x1150mm
• Cutting mode rolling cutter
• Insulation dereeler number 2 pcs
• Maximum insulation paper outer diameter 400mm
• Insulation paper inner diameter 76mm
• Insulation dereeler length 850mm
• Edge alignment photoelectric sensing
• Control system PLC
• HMI touch screen
• Winding motor 15kw
• Maximum winding speed 18rpm

Packing and Shipping

Seaworthy packing and one 40 feet container for shipping.

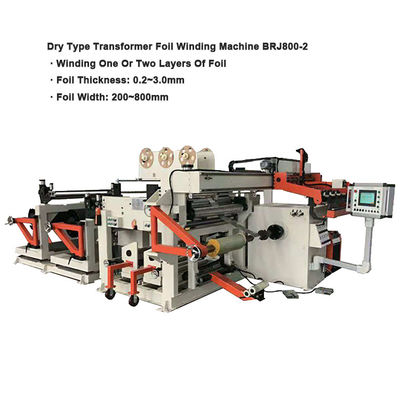

Fig 1: Transformer foil winding machine BRJ800-2's front view

Fig 2: Transformer foil winding machine BRJ800-2's side view
