| Name: | Transformer Foil Winding Machine | Usage: | Making Transformer Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Max. Foil Width: | 1200mm | Color: | As Requested |
| Winding Motor Power: | 15kw | Max. Winding Speed: | 18rpm |
| Highlight: | TIG Foil Winding Machine Transformer,Dry Type Foil Winding Machine Transformer,Dry Type Transformer Winder Machine |
||
TIG Welding Dry Type Transformer Foil Winding Machine Making Transformer Core
Description of transformer foil winding machine BRJ1200-2
Low voltage transformer foil winding machine BRJ1200-2 is mainly used to wind copper or aluminium foil with maximum width 1200mm. The transformer foil winding machine is provided with 15kw winding motor to drive the machine’s head for winding foil. TIG welding unit is adopted on the transformer foil winding machine for welding foil and bus bar together. With two foil dereelers and two insulation paper dereelers, the transformer foil winding machine can handle one or two layers of foil and one or two layers of insulation paper. Photoelectric sensors are adopted on the transformer foil winding machine to make sure the foil edge is neat when winding. The control system of the transformer foil winding machine is based on PLC , which can control the machine precisely. Touch screen interface makes the operations easy and intuitive when operating the transformer foil winding machine.
Main Components of transformer foil winding machine BRJ1200-2
Technical Parameters of transformer foil winding machine BRJ1200-2
Typical standard specifications of transformer foil winding machine BRJ1000-2 are shown below, however these can be easily modified as requested.
| Maximum Foil Width: | 1,200mm |
| Maximum Wound Coil: | 1,000mm |
| Wound Coil Shape: | oval, circle and rectangular, etc |
| Conductor Material: | Copper or Aluminum |
| Al Foil Thickness Min. and Max.: | 0.3 - 3.0 mm |
| Cu Foil Thickness Min. and Max.: | 0.2 - 2.0 mm |
| Maximum Conductor Material OD.: | 1,000mm |
| Conductor Material ID.: | 500mm |
| Conductor Decoiler Diameter: | adjustable range 400-520mm |
| Winding Power: | 15KW |
| Maximum Winding Speed: | 20 rpm |
| Welding Mode: | TIG |
| Cutting Mode: | rolling shear |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 - 9999.9 |

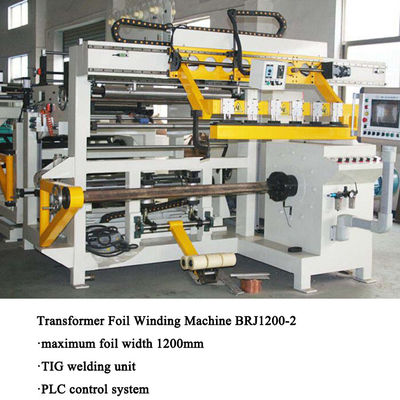

FIG 1: Transfomer foil winding machine's side view
Fig 2: Transformer foil winding machine BRJ1200-2's back view
