Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding

Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding

Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding
Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding

Large Image :  Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: BRJ1400-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Foil Winding Machine Usage: Winding Strip Coil
Winding Motor: 22kw Winding Speed: 18 Rpm
Cu Foil Thickness: 0.2 - 2.0mm Al Foil Thickness: 0.3 - 3.0mm
Deburring Unit: 2 Sets Cleaning Unit: 2 Sets
High Light:

Cast Resin Transformer Coil Winder

,

TIG Welding Transformer Winder Machine

,

Automatic Transformer Winder Machine

Automatic TIG Welding Copper Foil Winder Cast Resin Transformer Foil Winding Machine





Description of transformer foil winding machine

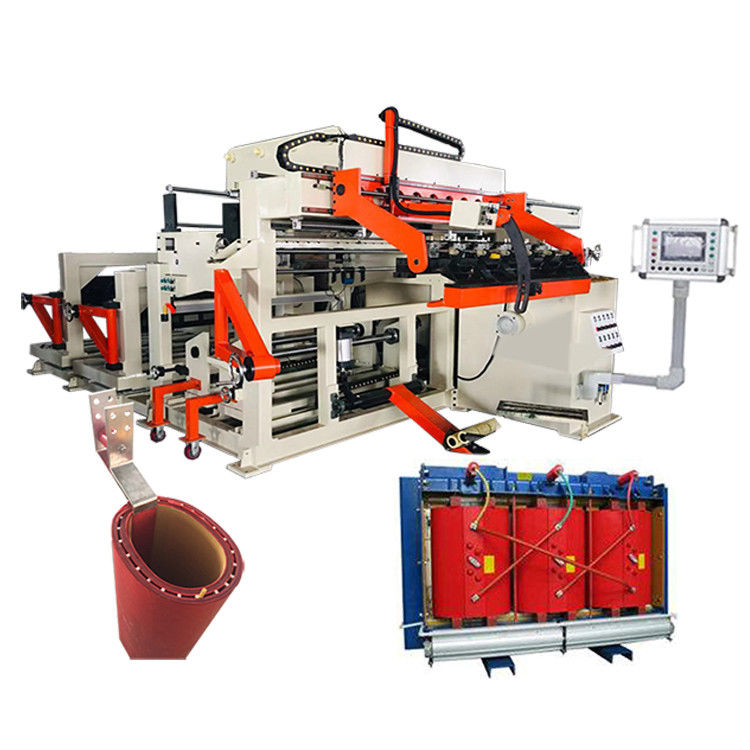

Low voltage cast resin transformer foil winding machine BRJ1400-2 is mainly used to wind copper or aluminium foil to make low voltage transformer foil coils and other similar products. This kind of transformer foil winding machine can handle one or two layers of foil conductor and one or two layers of insulation paper. The transformer foil winding machine is provided with TIG welding unit to weld foil and bus bar together. With photoelectric sensors, the transformer foil winding machine can make sure that the coil edges are straight and smooth when winding. It is easy to operate the transformer foil winding machine through a touch screen.





Main Components of transformer foil winding machine BRJ1400-2



1. Main frame

2. Winding unit

3. Foil decoiler

4. Insulation decoiler

5. End-filling strip feeder

6. Cleaning system

7. Cutting system

8. Foil deburring system

9. Edge alignment system

10. Automatic welding unit

11. Electronic control system

12. Pneumatic system





Technical Parameters of transformer foil winding machine BRJ1400-2



Typical standard specifications of transformer foil winding machine BRJ1400-2 are shown below, however these can be easily modified as requested.



Foil Width: 200 ~ 1,400mm
Maximum Wound Coil OD.: 1,000mm
Wound Coil Shape: oval, round and rectangular,etc.
Conductor Foil Material: Copper or Aluminum
Maximum Conductor Material OD.: 1,000mm
Conductor Material ID.: 500mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Diameter: adjustable range 400 ~ 520mm
Max. Coil Weight: 2,000KG
Winding Mandrel Size: 80×80×1750 mm
Welding Mode: TIG
Cutting Mode: Electric disc shear
Insulation Decoiler Number: 2 pcs
Maximum Insulation Material OD.: 400mm
Insulation Material ID.: 76mm
End-filling Strip Feeder: 8 pcs
Edge Alignment System: Photoelectric sensing
Electronic Control System: PLC
User Interface: 10inch (254mm) touch screen
Counting Turns Range: 0 - 9999.9
Total Weight: 8000Kg
Dimension(L*W*H) 5800*2850*2500mm



Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding 0

Fig 1: Transformer foil winding machine's side view

Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding 1

Fig 2: Transformer foil winding machine's back view

Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding 2



Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding 3

Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding 4

Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding 5

Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding 6

Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding 7

Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding 8

Copper Foil Cast Resin Transformer Winder Machine Automatic TIG Welding 9
