Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven

Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven

Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven
Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven

Large Image :  Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Application: Winding Coil
Winding Width: 0 - 800mm Winding Speed: 0- 160rpm
Color: Optional Warranty: One Year
Winding Motor: 4kw Servo Motor: 0.75kw
High Light:

Auto Transformer Coil Winding Machine

,

Oil Type Transformer Coil Winding Machine

,

Servo Motor Driven Wire Coil Winder

Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven Wire Guide





Description of transformer coil winding machine ZPX800



Transformer coil winding machine ZPX800 is one model of automatic winding equipment, which can be used to wind wire coils with maximum winding width 800mm. The transformer coil winding machine is mainly used to winding oil type transformer coil and other similar products. With servo motor driven wire guide, the transformer coil winding machine can lay the wire automatically. On the transformer coil winding machine, there are two limiters on the two ends for limiting the moving range of the wire guide. The transformer coil winding machine can wind round wire with 0.3 - 5.0mm and flat wire with maximum size 12x5mm. One touch screen is adopted on the coil winding machine, which make the machine be operated easily.





Main Features of transformer coil winding machine ZPX800



  • Slow starting,
  • Smooth running
  • Full function
  • High automation
  • Automatic laying wire
  • Counting the number of turns
  • Adjustable winding speed
  • Big pulling force



Main parameters of transformer coil winding machine ZPX800



Center Height from Floor: 900mm
Winding Shaft Size: 40x40x1100mm
Shaft mounting mode: Welding on flange or demountable or 4-jaw chuck (optional)
Max. Winding Width: 800mm
Winding Motor Power: 4kw
Winding Speed: 0 ~ 160 rpm
Speed Regulation: stepless
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: 0.3-5.0mm
Max. Rotating Diameter: 800mm
Max. Capacity: 700kg
Min. Spread Pitch: 0.01mm
Counting Mode: 5-digit counting
Counting Range: 0 - 9999.9



Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven 0

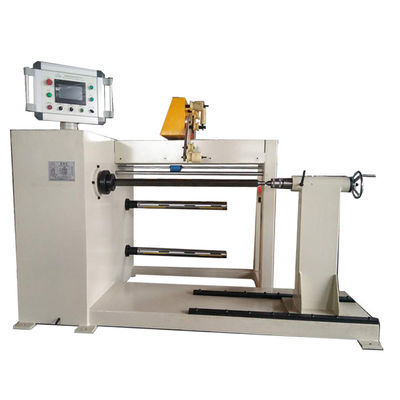

Fig 1: Transformer coil winding macihne's front view

Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven 1

Fig 2:Transformer coil winding machine's wire guide

Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven 2Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven 3Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven 4Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven 5Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven 6Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven 7

Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven 8

Oil Type Transformer Coil Winding Machine PLC Control Servo Motor Driven 9
