Automatic Unicore Silicon Steel Cutting Machine 1 Mpa

Automatic Unicore Cutting Machine Silicon Steel Cutting Machine

Introduction of silicon steel cutting machine UCM400

Silicon steel cutting machine UCM400 is one kind of unicore cutting machine, the cutting machine is mainly used to cut silicon steel to make rectangle open core for transformer. This machine can cut one strip with maximum width 400mm or two strips with maximum width 190mm at once. This kind of cut core can be used in oil transformers,dry transformers and traction transformers with high voltage 10～35kV and capacity 30KVA～3150KVA. The blades are made of cemented carbide.The supply coil dereeler adopts hydraulic expanding for putting and fixing the silicon steel roll easily. With a touch screen, it is very easy to operate the machine.

Main parts of silicon steel cutting machine UCM400

1. Main machine

2. Single head steel coil dereeler

3. Floor support plate

4. One set of cutter

Main parameters of silicon steel cutting machine UCM400

Typical standard specifications of UCM400 are shown below, however the cutting machine can also be manufactured as requested.

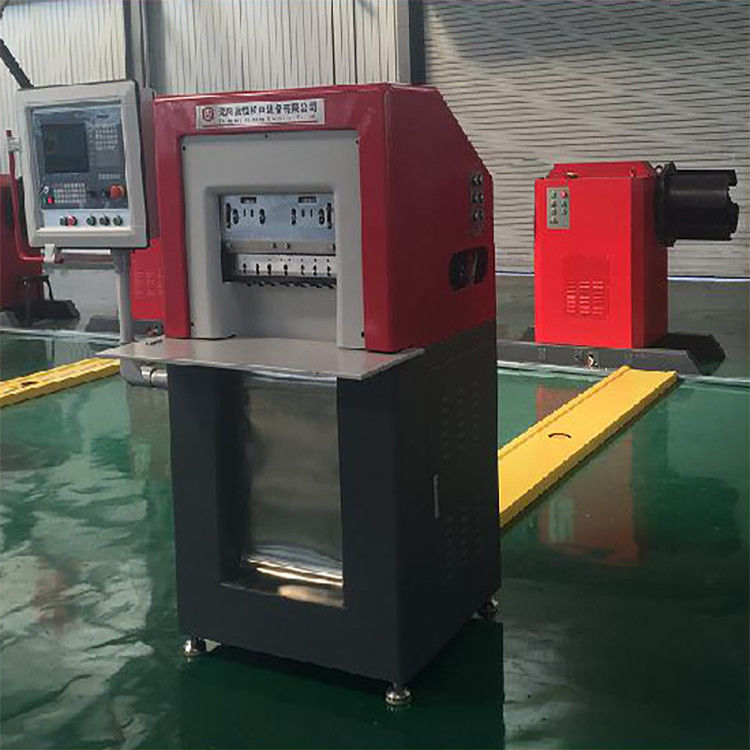

Fig 1:Unicore cutting machine UCM400's full view

Fig 2: Unicore cutting machine UCM400's packing
