Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transformer Coil Winding Machine | Usage: | Winding Coil |
|---|---|---|---|
| Conductor: | Aluminium Or Copper Wire | Conductor Type: | Round Or Flat Wire |
| Round Wire: | ∅0.3 ~ ∅4.0mm | Flat Wire Size: | Maximum 3x10mm |
| Color: | Customizable | Warranty: | 12 Months |
| High Light: | Programmable Auto Coil Winding Machine,Oil Type Transformer Coil Winding Machine,Oil Transformer Auto Coil Winding Machine |
||
Programmable Automatic Coil Winding Machine Máquina de bobinado Making Oil Type Transformer
Description of automatic coil winding machine ZPX400
Automatic coil winding machine ZPX400 is one of transformer coil winding machines. The coil winding machine can be used to wind transformer wire coil or other similar products. The round wire or flat wire can be wound with the automatic coil winding machine. With a touch screen, the parameters of the automatic coil winding machine can be set for winding different kinds of coil. The foot pedal can start or stop the machine and can switch the rotating direction, forward and reverse. The automatic coil winding machine features high automation, easy operation and so on.
Quick details of automatic coil winding machine ZPX400
Main parameters of automatic coil winding machine ZPX400
| Center height: | 900mm |
| Square Shaft Size: | 40x40x700mm |
| Maximum Winding Width: | 400mm |
| Servo Motor Power: | 0.75kw |
| Rotating Speed: | 0 ~ 200 rpm |
| Motor Power: | 3kw |
| Regulating Speed: | stepless speed regulation |
| Flat Wire Size: | Maximum 5X12mm |
| Round Wire Diameter: | Φ0.3 ~ Φ5.0mm |
| Maximum Rotating Diameter: | Φ800mm |
| Maximum Capacity: | 500kg |
| Minimum Spread Pitch: | 0.01mm |
| Counting: | 5-digit counting |
| Maximum Turns Preset: | 9999.9 |
| Counting Range: | 0 ~ 9999.9 |

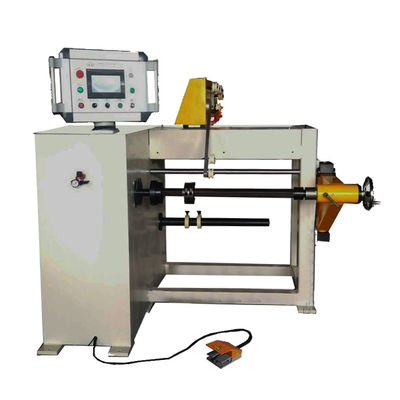

Fig 1: Automatic coil winding machine ZPX400's front view
Fig 2: Automatic coil winding machine ZPX400's wire guide
