| Name: | Transformer Foil Winding Machine | Application: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Max. Foil Width: | 800mm | Color: | As Requested |
| Winding Power: | 15kw | Winding Speed: | 20rpm |
| High Light: | PLC Foil Winding Machine,Dry Type Foil Winding Machine,Duplex Layer Transformer Foil Winding Machine |
||
PLC Control Duplex Layer Máquina de enrollar láminas Dry Type Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ800-2
Transformer foil winding machine BRJ800-2 is one kind of copper or aluminium foil winders, i.e. Máquina de enrollar láminas, which is mainly used to make cast resin transformer coil. The transformer foil winding machine is driven by a 15kw motor.The transformer foil winding machine driven by the big power motor can handle one or two layers of copper or aluminium foil strip and one or two layers of insulation paper. With TIG welding unit, the foil and bus bar can be welded together. Burr removal unit and cleaning unit are driven by pneumatic. It is very easy to operate the transformer foil winding machine.
Main components of transformer foil winding machine BRJ800-2
1) Main iron frame
2) Winding unit
3) Foil conductor decoiler
4) Layer insulation decoiler
5) End-fill strip holder
6) Dirt removal device
7) Rolling shear
8) Burr removal unit
9) Edge alignment system
10) Automatic welding unit
11) Electronic control system
12) Pneumatic system
Technical parameters of transformer foil winding machine BRJ800-2
Typical standard specifications of transformer foil winding machine BRJ800-2 are shown below, however these can be modified as requested.

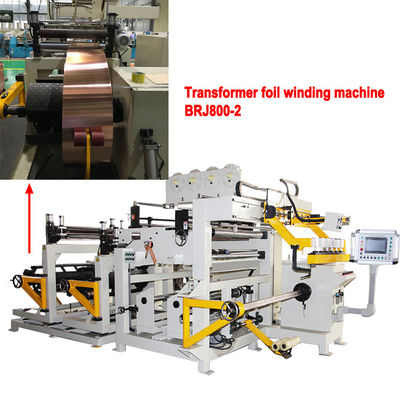

Fig 1: Transformer foil winding machine BRJ800-2's front view
Fig 2: Transformer foil winding machine BRJ800-2's back view
