Two Wire Guides Automatic Transformer Winding Machine For Coil

Two Wire Guides Automatic Transformer Coil Winding Machine Wire Máquina de bobinado

Description of transformer coil winding machine ZPX500-2

Transformer coil winding machine ZPX500-2 is one model of high effective winder, which can be used to wind two coils at once. The transformer coil winding machine can be used to wind both round wire and flat wire. The wire guide is driven by a servo motor. Servo motor can guarantee the precision of the wire guide’s moving. With a touch screen, the parameters of products can be easily input. It is very easy to operate the transformer coil winding machine.

Main features of transformer coil winding machine ZPX500-2

• slow starting
• smooth running
• full function
• high automation
• Easy to operate
• Humanized design
• Touch screen

Main parameters of transformer coil winding machine ZPX500-2

Typical standard specifications of transformer coil winding machine ZPX500-2 are shown below, however these can be modified as requested.

• Center height 900mm
• Maximum coil wound 2 pcs
• Maximum per coil height 500mm
• Maximum finished coil OD Φ800mm
• Winding speed 0 ~ 160rpm
• Round wire Φ0.3 ~ Φ5.0mm
• Maximum flat wire 5x12mm
• Counting range 0-9999.99
• Program number more than 50 pcs

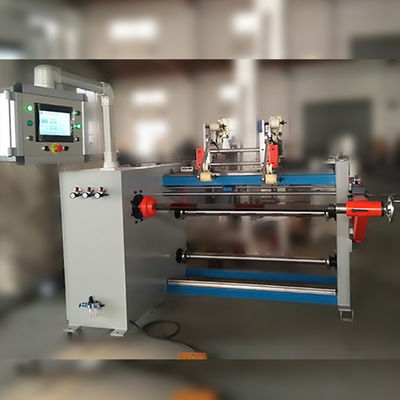

Fig 1: Transformer coil winding machine ZPX500-2's front view

Fig 2: Transformer coil winding machine ZPX500-2's wire guide
