Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Coil Winding Machine | Winding Width: | 0 ~ 1200mm |
|---|---|---|---|
| Motor Power: | 5.5kw | Rotating Speed: | 0 ~ 80rpm |
| Servo Motor: | 0.75kw | Wire Guide: | 1 Pc |
| Color: | As Requested | Warranty: | 12 Months |
| High Light: | High Torque Copper Coil Winding Machine,High Torque Automatic Coil Winding Machine,Auto Copper Wire Winding Machine |
||
High Torque Transformer Copper Wire Winder Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX1200
Automatic transformer coil winding machine ZPX1200 is a special equipment for winding transformer wire coil and other similar products. The automatic coil winding machine, i.e. Máquina de bobinado, can wind wire coil with height 1200mm. The kind of automatic coil winding machine is provided with wire guide driven by servo motor, touch screen, and so on. The automatic coil winding machine can be used to wind round wire or rectangle wire and copper wire or aluminium wire. With control system based on PLC and the touch screen, it is very easy to operate the automatic coil winding machine.
Features of automatic coil winding machine ZPX1200
Main Parameters of automatic coil winding machine ZPX1200
The following is the standard specifications of automatic coil winding machine ZPX1200, however, the machine can also be manufactured as requested.
| Center Height From Floor: | 900mm |
| Winding Square Shaft Size: | 50x50x1500mm |
| Maximum Winding Width: | 1200mm |
| Winding Power: | 5.5kw |
| Winding Speed: | 0 ~ 160 rpm |
| Regulation: | stepless speed regulation |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire Diameter: | Φ0.3mm ~ Φ5.0mm |
| Maximum wound Coil OD.: | Φ800mm |
| Maximum Capacity: | 800kg |
| Minimum Spread Pitch: | 0.01mm |
| Counting Mode: | 5-digit counting |
| Max. Numbers of Turns Preset: | 9999.9 |
| Counting Turn Range: | 0 ~ 9999.9 |

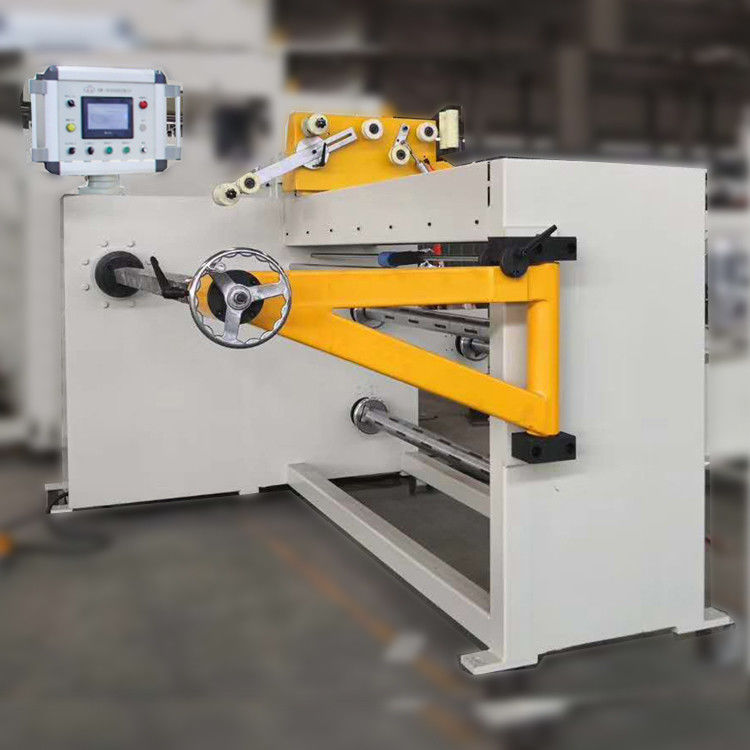

Fig 1: Automatic coil winding machine ZPX1200's front view
Fig 2: Automatic coil winding macihne ZPX1200's side view
