Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized

Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized

Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized
Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized

Large Image :  Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Automatic Coil Winding Machine Application: Winding Transformer Coil
Wire Type: Round Or Flat Wire Material: Cu Or Al
Round Wire Size: 0.3 ~ 5.0mm Flat Wire Size: 5x12mm
Winding Power: 7.5kw Winding Speed: 60rpm
High Light:

Big Sized Automatic Coil Winding Machine

,

Heavy Duty Automatic Coil Winding Machine

,

Oil Type Automatic Coil Winding Machine

Heavy Duty Big Sized Coil Winder Oil Type Transformer Automatic Coil Winding Machine





Description of Automatic Coil Winding Machine ZPX1400



Automatic big sized coil winding machine ZPX1400 is one kind of wire winding machines. This kind of automatic coil winding machine, Máquina de bobinado, is mainly used to wind wire coils with copper or aluminium wire. The wound coil can be used to make transformer and other similar products. The automatic coil winding machine can be used to wind the coil with maximum height 1400mm and can be used to wind not only round wire but also flat wire. The winding machine’s control system is based on PLC, which guarantees the automatic coil winding machine high automation and easy to use. With different parameters input, the automatic coil winding machine can be used to wind corresponding specifications of coils.





Main Features of automatic coil winding machine ZPX1400

  • slow starting
  • smooth running
  • full function
  • high automation
  • High torque
  • High precision



Technical Parameters of automatic coil winding machine ZPX1400



Typical standard specifications of automatic coil winding machine ZPX1400 are shown below, however the machine can also be manufactured as requested.

Center Height: 900mm
Winding Shaft Size: 50x50x1700mm
Insulation Decoiler Quantity: 1 pc
Winding Power: 7.5Kw
Winding Speed: 0 ~ 60 Rpm
Speed Regulation: stepless speed regulation
Maximum Rectangular Wire Size: 5x14mm
Round Wire Diameter: Φ0.3 ~ 5.0mm
Maximum Wound Coil Height: 1400mm
Maximum Coil Weight: 1000kg
Counting Mode: 5-digit counting
Max. Turns Preset Number: 9999.9
Counting Range: 0 ~ 9999.9

Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized 0

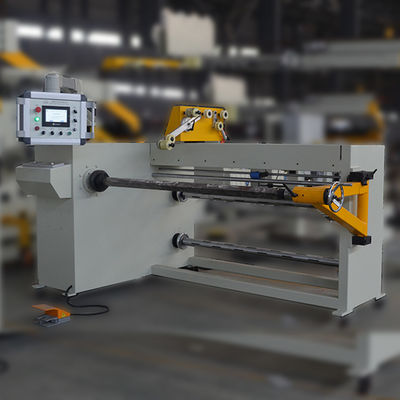

Fig 1: Automatic coil winding machine ZPX1400's front view



Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized 1

Fig 2: Automatic coil winding machine ZPX1400's insulation decoiler



Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized 2Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized 3Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized 4Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized 5Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized 6Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized 7Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized 8Oil Type Transformer Automatic Coil Winding Machine Heavy Duty Big Sized 9
