| Product Name: | Tranformer Foil Winding Machine | Usage: | Winding Dry Type Transformer Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Winding Speed: | 0 ~ 16rpm | Motor Power: | 30kw |
| Color: | Optional | Warranty: | 12 Months |
| High Light: | Low Voltage Transformer Foil Winding Machine,2 Layers Transformer Foil Winding Machine,TIG Welding Transformer Foil Winding Machine |
||
TIG Welding Low Voltage Transformer Foil Winding Machine Winding Two Layers Copper Foil
Introduction of transformer foil winding machine BRJ1600-2
Dry type transformer foil winding machine BRJ1600-2 is a heavy duty transformer making equipment for winding foil coil to manufacture cast resin transformer. This kind of transformer foil winding machine can wind copper or aluminium foil with maximum width 1600mm and wind insulation paper. 30kw motor are adopted to drive the machine, which can wind one or two layers of foil and one or two layers of insulation paper. The foil winding machine can correct the position of foil with photoelectric sensors. With PLC control system, the foil winding machine can wind the foil automatically according to the parameters input.
Features of transformer foil winding machine BRJ1600-2
Main Parameters of transformer foil winding machine BRJ1600-2
The following is the standard specifications of transformer foil winding machine BRJ1600-2, however, the foil winding machine can also be manufactured as requested.
| Axial Length (foil width): | 350 ~ 1,600mm |
| Finished Coil OD.: | ≤1,000mm |
| AL Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Conductor Material OD.: | ≤1,000mm |
| Conductor Material ID.: | 500mm |
| Foil Decoiler Number: | 2 pcs |
| Insulation Decoiler Number: | 2 pcs |
| Winding Power: | 30kw |
| Winding Speed: | 0 ~ 16rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic control |
| Cleaning Foil Device: | Pneumatic control |
| Edge Alignment System: | Photoelectric sensing |
| Counting Turns Range: | 0 ~ 9999.9 |

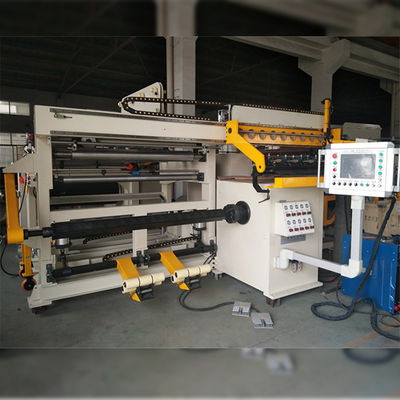

Fig 1: Transformer foil winding machine BRJ1600-2's front view
Fig 2: Transformer foil winding machine BRJ1600-2's back view
