| Product Name: | Corrugated Fin Forming Machine | Sheet Width: | 300 ~ 1300mm |
|---|---|---|---|
| Fin Height: | 50 ~ 400mm | Fin Pitch: | 40 ~ 60mm |
| Feeding Speed: | 4 Fins/min | Machine Color: | Customized |
| Function: | Making Transformer Oil Tank | Warranty: | 12 Months |
| High Light: | Making Transformer Fin Forming Machine,4 Fins/Min Fin Forming Machine,Corrugated Tank Fin Forming Machine |
||
Corrugated Fin Forming Machine Making Transformer Corrugated Tank Fin
Corrugated fin forming machine BWX1300-400 is one kind of professional equipment, which is mainly used to making transformer oil tank’s corrugated fins. Before running the machine, fin pitch, fin height and fin quantity made can be preset. The main components of corrugated fin making machine include guide mechanism, hydraulic forming unit, hydraulic cutting unit, etc. It is easy to operate, adjust, and maintain.
Quick details of corrugated fin making machine BWX1300-400
Main parameters of corrugated fin making machine BWX1300-400
Typical standard specifications of corrugated fin making machine BWX1300-400 are shown below, however, the corrugated fin making machine can also be manufactured as requested.
| Item | BWX1300-400 |
| Steel Coil Width: | 300～1300mm |
| Thickness of sheet: | 0.5～1.75mm |
| Fin Width: | 300～1300mm |
| Fin Height: | 50～400mm |
| Distance between fins: | >40mm |
| Fin Gap(oil groove): | >4mm |
| Forming Speed: | 3～4 fins/min |
| Power: | 30KW |

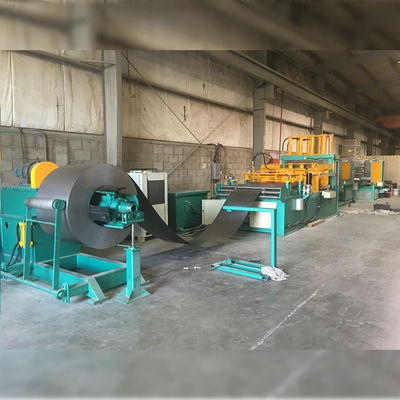

Fig 1: Corrugated fin forming macihne BWX1300-400's side view
Fig 2: Corrugated fin forming machine BWX1300-400's decoiler
