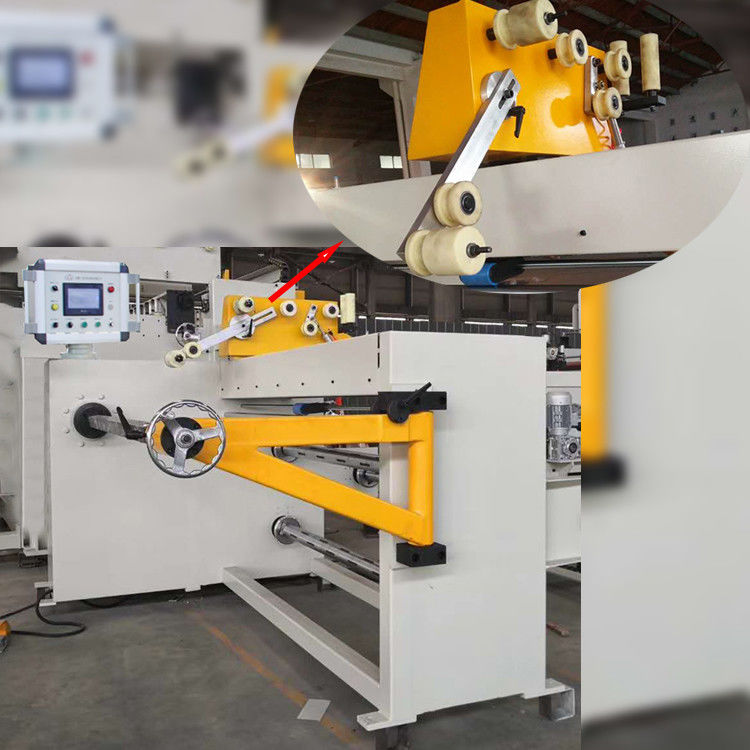

Transformer Automatic Coil Winding Machine With Wire Guide

Transformer Automatic Coil Winding Machine With Wire Guide

Transformer Automatic Coil Winding Machine With Wire Guide
Transformer Automatic Coil Winding Machine With Wire Guide

Large Image :  Transformer Automatic Coil Winding Machine With Wire Guide Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Automatic Coil Winding Machine Max. Winding Width: 1200mm
Power: 5.5kw Winding Speed: 0 ~ 80rpm
Servo Motor: 0.75kw Wire Guide: 1 Pc
Color: As Requested Warranty: 12 Months
High Light:

1200mm Automatic Coil Winding Machine

,

Coil Winding Machine With Wire Guide

,

Automatic Coil Winding Machine 80rpm

Automatic Coil Winding Machine For Making Transformer Coil With Wire Guide





Description of automatic coil winding machine ZPX1200



Automatic coil winding machine ZPX1200 is a special equipment for winding transformer wire coils and other similar products. The automatic coil winding machine can wind wire coil with maximum height 1200mm. The kind of automatic coil winding machine is provided with wire guide driven by servo motor, a touch screen, coil stand and so on. With control system based on PLC and the touch screen, it is very easy to operate the automatic coil winding machine. The automatic coil winding machine features slow starting, smooth running, big pulling force and so on.





Features of automatic coil winding machine ZPX1200

  • slow starting
  • smooth running
  • different color
  • big power
  • customizable
  • 12 months warranty



Main Parameters of automatic coil winding machine ZPX1200



The following is the standard specifications of automatic coil winding machine ZPX1200, however, the machine can also be manufactured as requested.



Center Height From Floor: 900mm
Winding Square Shaft Size: 50x50x1500mm
Maximum Winding Width: 1200mm
Winding Power: 5.5kw
Winding Speed: 0 ~ 160 rpm
Regulation: stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: Φ0.3mm ~ Φ5.0mm
Maximum wound Coil OD.: Φ800mm
Maximum Capacity: 800kg
Minimum Spread Pitch: 0.01mm
Counting Mode: 5-digit counting
Max. Numbers of Turns Preset: 9999.9
Counting Turn Range: 0 ~ 9999.9



Transformer Automatic Coil Winding Machine With Wire Guide 0

Fig 1: Automatic coil winding machine ZPX1200's front view



Transformer Automatic Coil Winding Machine With Wire Guide 1

Fig 2: Automatic coil winding macihne ZPX1200's side view



Transformer Automatic Coil Winding Machine With Wire Guide 2

Transformer Automatic Coil Winding Machine With Wire Guide 3

Transformer Automatic Coil Winding Machine With Wire Guide 4Transformer Automatic Coil Winding Machine With Wire Guide 5Transformer Automatic Coil Winding Machine With Wire Guide 6Transformer Automatic Coil Winding Machine With Wire Guide 7Transformer Automatic Coil Winding Machine With Wire Guide 8Transformer Automatic Coil Winding Machine With Wire Guide 9Transformer Automatic Coil Winding Machine With Wire Guide 10
