Low Voltage Transformer Foil Winding Machine

Low Voltage Transformer Foil Winding Machine

Low Voltage Transformer Foil Winding Machine
Low Voltage Transformer Foil Winding Machine

Large Image :  Low Voltage Transformer Foil Winding Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: BRJ800-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD35000 ~ 45000
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Foil Winding Machine Application: Winding Foil Coil
Cu Foil Thickness: 0.2 ~ 2.0mm Al Foil Thickness: 0.3 ~ 3.0mm
Max. Foil Width: 800mm Color: As Requested
Winding Power: 15kw Winding Speed: 20rpm
High Light:

Transformer Foil Winding Machine Low Voltage

,

Copper Foil Winding Machine Transformer

,

Alu Transformer Foil Winding Machine

Low Voltage Transformer Foil Winding Machine Winding Copper Foil And Aluminium Foil



Description of transformer foil winding machine BRJ800-2



Transformer foil winding machine BRJ800-2 is a special winding equipment for winding copper or aluminium foil to make cast resin transformer coil. The kind of transformer foil winding machine is provided with 15kw motor, which provides big torque to wind one or two layers of foil with maximum width 800mm. With TIG welding, the foil winding machine can weld foil and bus bar together. The parameters of the wound coil can be input through a touch screen. The transformer foil winding machine features slow starting, smooth running, high automation, full function, strong pulling force, easy operation and so on.



Quick details of transformer foil winding machine BRJ800-2



1) Two foil decoilers

2) Two insulation paper decoilers

4) End-fill strip feeders

5) Cleaning system

6) Deburring system

7) Edge alignment system

8) Automatic welding unit



Technical parameters of transformer foil winding machine BRJ800-2



Typical standard specifications of transformer foil winding machine BRJ800-2 are shown below, however the machine can also be manufactured as requested.



Foil Width: 200 ~ 800mm
Finished Coil Shape: oval, circle and rectangle
Supply Material OD.: 1,000mm
Supply Material ID.: 500mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 850mm
Foil Decoiler Expansion Range: 420 ~ 520mm
Winding Shaft Size: 80×80×1150 mm
Cutter: Electric disc shear
Insulation Decoiler Number: 2 pcs
Max. Insulation Material OD.: 400mm
Insulation Material ID.: 75mm
Max. Insulation Material Width: 850mm
Edge Alignment System: Photoelectric sensing
Control System: PLC
User Interface: 10inch (254mm) touch screen
Counting Turns Range: 0 ~ 9999.9
Winding Power: 15kw
Winding Speed: 0 ~ 20rpm



Low Voltage Transformer Foil Winding Machine 0

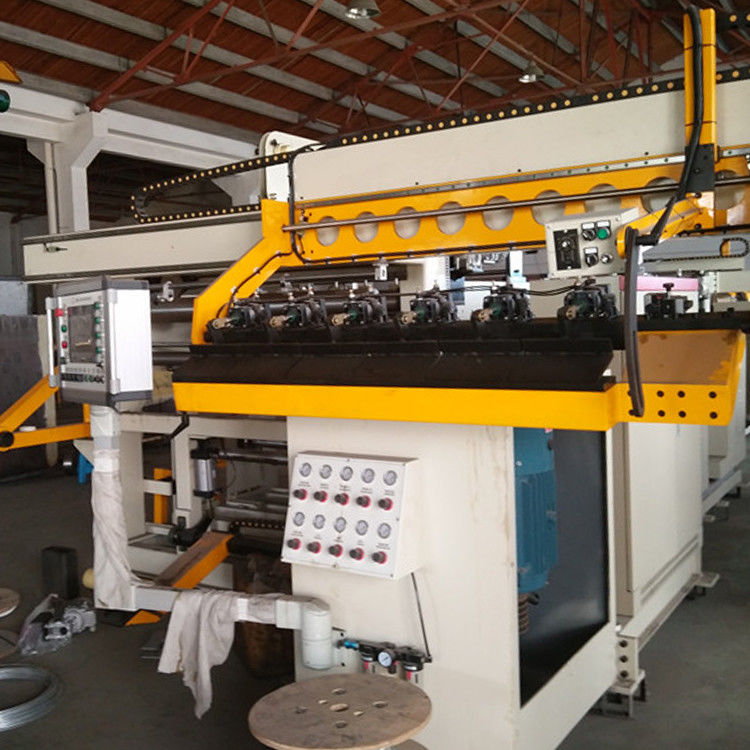

Fig 1: Transformer foil winding machine BRJ800-2's front view



Low Voltage Transformer Foil Winding Machine 1

Fig 2: Transformer foil winding machine BRJ800-2's back view



Low Voltage Transformer Foil Winding Machine 2Low Voltage Transformer Foil Winding Machine 3Low Voltage Transformer Foil Winding Machine 4Low Voltage Transformer Foil Winding Machine 5

Low Voltage Transformer Foil Winding Machine 6Low Voltage Transformer Foil Winding Machine 7Low Voltage Transformer Foil Winding Machine 8Low Voltage Transformer Foil Winding Machine 9
