| Name: | Transformer Foil Winding Machine | Function: | Making Transformer Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Max. Foil Width: | 1200mm | Color: | As Requested |
| Motor Power: | 15kw | Winding Speed: | 0 ~ 18rpm |
| High Light: | 1200mm Width Transformer Foil Winding Machine,Transformer Foil Winding Machine PLC Control,Copper Strip Transformer Foil Winding Machine |
||
PLC Control LV Transformer Foil Winding Machine Winding 1200mm Width Copper Strip
Description of transformer foil winding machine BRJ1200-2
Low voltage transformer foil winding machine BRJ1200-2 is a professional equipment to wind conductor foil coils to make dry type transformer coils and other similar products. The transformer foil winding machine is provided with big power main winding motor, foil decoilers, insulation decoilers, photoelectric sensor and cutter etc. The transformer foil winding machine can wind one or two layers of foil with maximum width 1200mm. With TIG welding unit, the transformer foil winding machine can weld conductor film with bus bar together. With one touch screen, it is very easy to operate the transformer foil winding machine.
Main components of transformer foil winding machine BRJ1200-2
Technical parameters of transformer foil winding machine BRJ1200-2
Typical standard specifications of transformer foil winding machine BRJ1200-2 are shown below, however, the transformer foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,200mm |
| Max. Finished Coil OD: | Φ1,000mm |
| Min. Finished Coil ID: | Φ130mm |
| Finished Coil Shape: | oval, circle and rectangular, etc |
| Conductor Foil Material: | Copper or Aluminum |
| Foil Thickness Min. and Max. (Aluminum): | 0.3 ~ 3.0 mm |
| Foil Thickness Min. and Max. (Copper): | 0.2 ~ 2.0 mm |
| Conductor Foil Material OD.: | Φ1,000mm |
| Conductor Foil Material ID.: | Φ500mm |
| Conductor Decoiler Diameter: | Φ400 ~ 520mm |
| Winding Power: | 15KW |
| Winding speed: | 0 ~ 20 rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric rolling shear |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing automatic rectifying deviation |
| User Interface: | 10inch (254mm) touch screen |
| Counting Range: | 0 ~ 9999.9 |

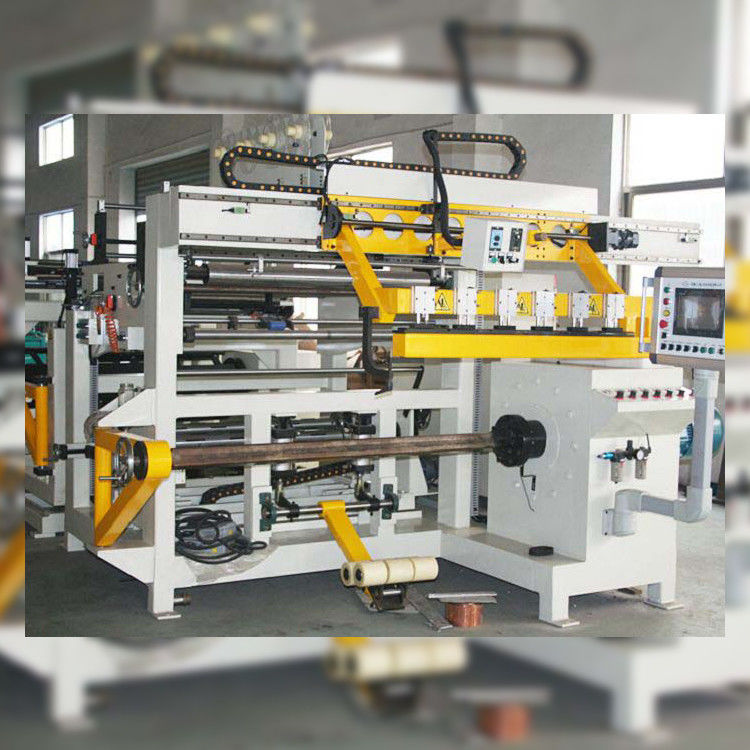

FIG 1: Transfomer foil winding machine's side view
Fig 2: Transformer foil winding machine BRJ1200-2's back view
