Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil

Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil

Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil
Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil
video play

Large Image :  Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPX400-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Coil Winding Machine Function: Winding Wire Coil
Winding Width: 0 ~ 400mm Coil Height: Max. 400 Per Coil
Motor Power: 11kw Winding Speed: 0 ~ 160rpm
Wire Guide: 3 Pcs Servo Motor: 1 Pc
High Light:

Three Wire Transformer Making Equipment

,

160rpm Transformer Making Equipment

,

3 Wire Transformer Coil Winding Machine

Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil


Description of transformer coil winding machine ZPX400-3

Transformer coil winding machine ZPX400-3 can be used to wind three coils with maximum height per coil 400mm at once, which improves significantly the production effectiveness of the machine. The transformer coil winding machine can be used to wind copper and aluminium flat wires and round wires. The transformer coil winding machine is provided with three wire guide unit and the unit is driven by a servo motor. With a touch screen and PLC control system, the transformer coil winding machine can be operated easily.


Main features of transformer coil winding machine ZPX400-3

  • Counting turns with reverse counting
  • Widely used, can be used to wind different specifications of wire
  • PLC control system guarantees the machine’s action precise
  • Driven by AC servo motor guarantees excellent start and stop action of wire guide
  • Simple operation, accuracy and reliability, touch screen is very intuitional
  • Full function, having many functions, such as counting, memory, counting reverse, etc.
  • High automation, programmable feature guarantees high automation
  • Slow starting, this is for safe


Technical Parameters of transformer coil winding machine ZPX400-3

Typical standard specifications of transformer coil winding machine ZPX400-3 are shown below, however, the transformer coil winding machine can also be manufactured as requested.

Center Height: 900 mm
Rotating Shaft Size: 40x40x1500 mm
Shaft Connecting Mode: dismountable
Round Wire Diameter: Φ0.3mm ~ Φ4.0 mm
Max. Flat Wire Size: 5x12 mm
Max Rotating Diameter: 800 mm
Max. Each Finished Coil Height: 400 mm
Insulation Decoiler Number: 1 pc
Winding Motor: 11 kw
Winding Speed: 0 ~ 160 rpm
Maximum Finished Coil Number: 3 pcs
Control system: PLC
Spread Pitch min.: 0.01 mm
Counter: 5-digit counting
Counting Range: 0 ~ 9999.9


Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil 0

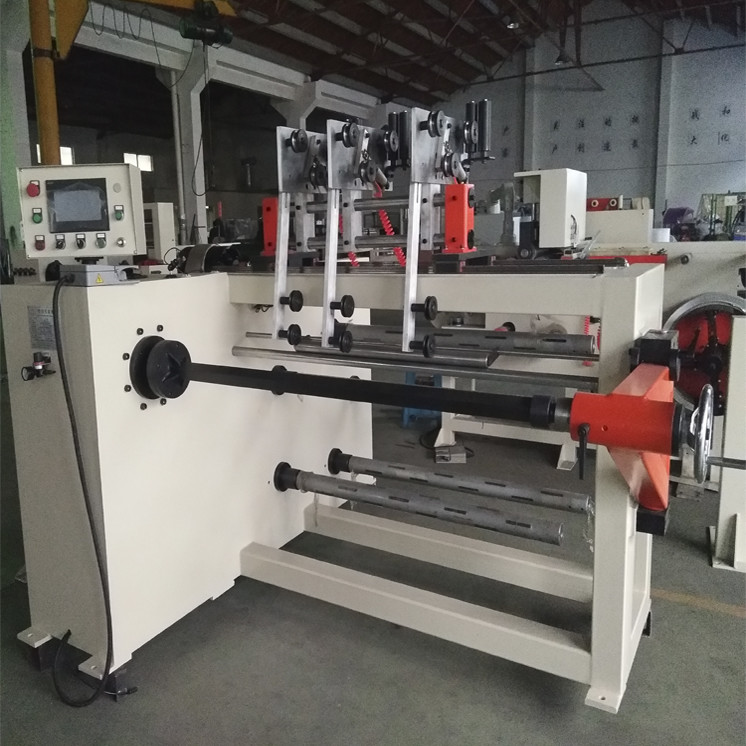

Fig 1: Transformer coil winding machine ZPX400-3's front view

Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil 1rr
Fig 2: Transformer coil winding machine ZPX400-3's wire guide

Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil 2Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil 3Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil 4Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil 5
Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil 6Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil 7Automatic Three Wire Guides Transformer Coil Winding Machine Making Wire Coil 8
