| Product Name: | Copper Foil Winding Machine | Function: | Winding Copper Foil Coil |
|---|---|---|---|
| Al Foil Thickness: | 0.3 ~ 3.0mm | Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Condition: | New | Warranty: | 12 Month |
| Material: | Steel | Speed: | 0 ~ 26 Rpm |
| High Light: | Single Layer Foil Winder,Copper Foil Automatic Winder,Low Voltage Transformer Foil Winder |
||
Automatic Single Layer Low Voltage Transformer Copper Foil Winding Machine
Description of copper foil winding machine BRJ600
Copper foil winding machine BRJ600 is one kind of professional transformer coil making machine, which is mainly used to wind copper foil or aluminium foil to make low voltage cast resin transformer coils and other similar products. The copper foil winding machine can handle one layer of copper foil or aluminium foil and one or two layers of insulation paper. With TIG welding unit, the copper foil winding machine can weld foil with bus bar together. With PLC control system and a touch screen, the copper foil winding machine can be operated easily. The copper foil winding machine features slow starting, big torque, smooth running and so on.
Quick detail of copper foil winding machine
Technical Parameters of copper foil winding machine BRJ600
Typical standard specifications of copper foil winding machine BRJ600 are shown below, however, the copper foil winding machine can also be manufactured as requested.
| Foil width: | 200 ~ 600mm |
| Max. Finished Coil OD: | Ø800mm |
| Finished Coil Shape: | oval, circle and rectangular,etc. |
| Conductor Foil Material OD.: | Ø1,000mm, maximum |
| Conductor Foil Material ID.: | Ø500mm |
| Foil Decoiler Number: | 1 pc |
| Foil Decoiler Length: | 650mm |
| Winding Mandrel Size: | 80×80×950 mm |
| Welding Mode: | TIG |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material Width: | 650mm |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 - 9999.9 |

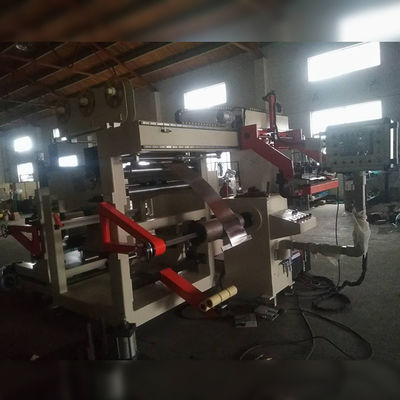

Fig 1: Copper foil winding machine BRJ600's front view
Fig 2: Copper foil winding machine BRJ600's back view
