TIG Welding Low Voltage Transformer Copper Foil Winding Machine Customizable

TIG Welding Low Voltage Transformer Copper Foil Winding Machine Customizable

TIG Welding Low Voltage Transformer Copper Foil Winding Machine Customizable
TIG Welding Low Voltage Transformer Copper Foil Winding Machine Customizable

Large Image :  TIG Welding Low Voltage Transformer Copper Foil Winding Machine Customizable Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: BRJ1000-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Copper Foil Winding Machine Usage: Winding Foil Coil
Cu Foil Thickness: 0.2 - 2.0mm Al Foil Thickness: 0.3 - 3.0mm
Foil Width: 200 - 1000mm Foil Decoiler: 2 Sets
Color: Optional Warranty: One Year
High Light:

Copper Foil Winding Machine PLC Control

,

Transformer Foil Winding Machine PLC Controlled

,

Customizable Copper Foil Winding Machine

PLC Control TIG Welding Customizable Low Voltage Transformer Copper Foil Winding Machine





Description of copper foil winding machine BRJ1000-2



Copper foil winding machine BRJ1000-2 is one of customizable winding equipment for winding copper or aluminium foil to make cast resin transformer’s coils and other similar products. The foil thickness of the copper foil winding machine can be from 0.2 mm to 3.0mm. The copper foil winding machine is provided with two foil decoilers and two insulation decoilers, which make the winding machine can wind one or two layers of foil conductor and one or two layers of insulation paper. With control system based on PLC and a touch screen, the copper foil winding machine can be operated easily.





Main components of copper foil winding machine BRJ1000-2

  • Main frame
  • Winding unit
  • Foil decoiler
  • Insulation decoiler
  • End-fill strip feeder
  • Foil deburring system
  • Edge alignment system
  • Automatic welding unit



Technical parameters of copper foil winding machine BRJ1000-2



Typical standard specifications of copper foil winding machine BRJ1000-2 are shown below, however, the winding machine can also be manufactured as requested.



Max. foil width: 1,000mm
Max. Rotating Diameter: 1,000mm
Wound Coil Shape: oval, circle and rectangular, etc
Conductor Material: Copper or Aluminum
Al Foil Thickness: 0.3 - 3.0 mm
Cu Foil Thickness: 0.2 - 2.0 mm
Conductor Material OD.: 1,000mm
Conductor Material ID.: 500mm
Foil Decoiler Diameter: adjustable range 400-520mm
Winding Power: 15KW
Winding Speed: 0 ~ 20 rpm
Welding: TIG
Cutting: Electric rolling shear
Insulation Decoiler Shaft: Expandable, pneumatic
End-fill Strip Feeder: 8 pcs
Edge Alignment System: Photoelectric sensing
User Interface: 10inch (254mm) touch screen
Counting Turns Range: 0 - 9999.9



TIG Welding Low Voltage Transformer Copper Foil Winding Machine Customizable 0

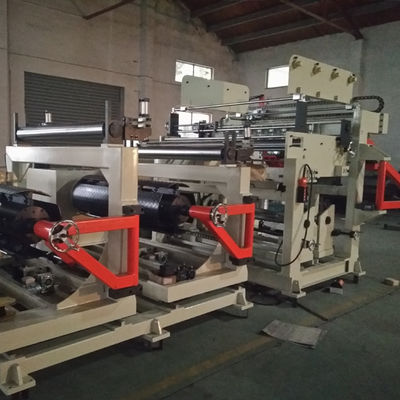

Fig 1: Copper foil winding machine BRJ1000-2's front view
