Automatic Wire Winder Small Transformer Coil Winding Machine PLC Control
Description of transformer coil winding machine ZPX250
Automatic Transformer Coil Winding Machine ZPX250 is one of automatic wire winders. The transformer coil winding machine is for winding small coils and other similar products. One 2.2kw motor is adopted in the transformer coil winding to drive the winding shaft to rotate. One 750w servo motor is used to drive the wire guide of the coil winding machine. The transformer coil winding machine is provided with main winding motor, servo motor, VFD, and so on. With the control system based on PLC, the transformer coil winding machine can run automatically as per the preset parameters.
Quick detail of transformer coil winding machine ZPX250
1)Maximum winding width 250mm
2)Center height 900mm
3)Winding power 2.2kw
4)Maximum winding speed 200rpm
5)Machine’s color can be customized
6)Warranty period 12 months
Technical parameters of transformer coil winding machine ZPX250
Typical standard specifications of transformer coil winding machine ZPX250 are shown below, however, the transformer coil winding machine can also be manufactured as requested.
| Center Height: | 900mm |
| Tailstock: | Live center |
| Winding Power: | 2.2kw |
| Rotating Speed: | 0 ~ 150 rpm |
| Speed Regulation: | Various stepless |
| Control System: | Based on PLC |
| Round Wire: | Ø0.3 ~ 4.0mm |
| Max. Flat Wire: | 2x8mm |
| Max Winding Width: | 250mm |
| Max Rotation Diameter: | Ø400mm |
| Automatic Wire Laying Function: | Min. Spread Pitch: 0.01mm |
| Basic Function: | 5-digit counting, |
| Counting Range: | 0 ~ 9999.9 |
| Saved Winding Programs Number: | more than 50 pcs |
| Machine Weight: | 500kg or so |
| Machine Dimension(LxWxH): | 1200x900x1500mm |

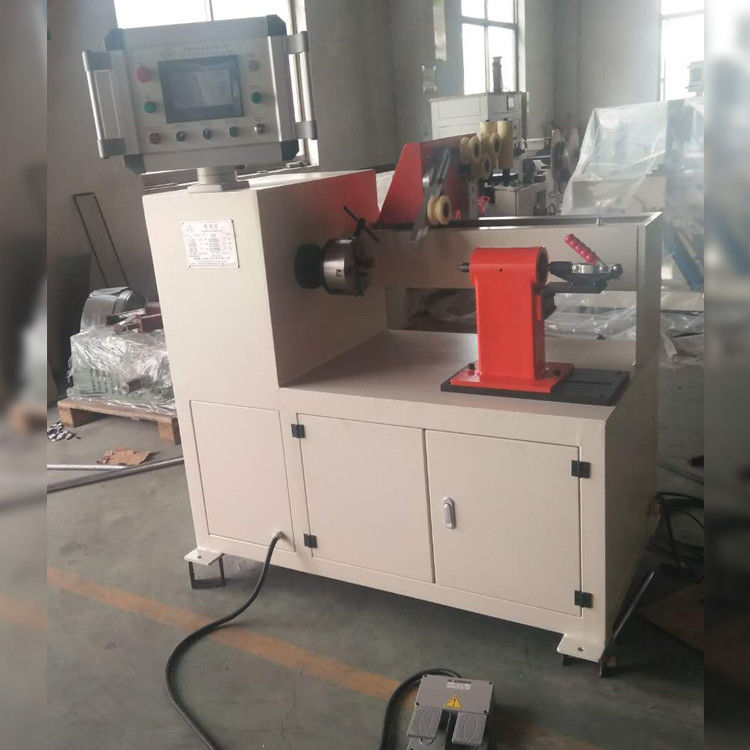

Fig 1: Automatic coil winding machine ZPX250's full view
Fig 2: Automatic coil winding machine ZPX250's wire guide
