Programmable PLC Control Wire Winder Automatic 60 Rpm

Programmable PLC Control Wire Winder Automatic 60 Rpm

Programmable PLC Control Wire Winder Automatic 60 Rpm
Programmable PLC Control Wire Winder Automatic 60 Rpm

Large Image :  Programmable PLC Control Wire Winder Automatic 60 Rpm Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Coil Winding Machine Usage: Winding Transformer Coil
Wire Type: Round Or Flat Wire Wire Material: Cu Or Al Wire
Round Wire Diameter: 0.3 ~ 5.0mm Flat Wire Size: 5x12mm, Maximum
Motor Power: 7.5kw Rotating Speed: 60rpm
High Light:

Programmable Wire Winder

,

PLC Control Wire Winder

,

Programmable Automatic Coil Winder

Programmable PLC Control Wire Winder Automatic Coil Winding Machine





Description of automatic coil winding machine ZPX1400



Automatic coil winding machine ZPX1400 is a special wire winder for winding wire coils. This kind of coils can be served as transformer coils and other similar products. This kind of automatic coil winding machine can be used to wind both copper wires and aluminium wires with different sizes. With PLC control system, the coil winding machine can guarantee high automation and easy operation. With different parameters input via a touch screen, the automatic coil winding machine can be used to wind different specifications of coils. The automatic coil winding machine features slow starting, smooth running and high automation etc.





Main features of automatic coil winding machine ZPX1400



  • slow starting
  • smooth running
  • full function
  • high automation
  • High torque
  • High precision



Technical parameters of automatic coil winding machine ZPX1400



Typical standard specifications of automatic coil winding machine ZPX1400 are shown below, however the machine can also be manufactured as requested.

Center Height: 900mm
Winding Shaft Size: 50x50x1700mm
Insulation Decoiler Quantity: 1 pc
Winding Power: 7.5Kw
Winding Speed: 0 ~ 60 Rpm
Speed Regulation: stepless speed regulation
Maximum Rectangular Wire Size: 5x14mm
Round Wire Diameter: Φ0.3 ~ 5.0mm
Maximum Wound Coil Height: 1400mm
Maximum Coil Weight: 1000kg
Counting Mode: 5-digit counting
Max. Turns Preset Number: 9999.9
Counting Range: 0 ~ 9999.9



Programmable PLC Control Wire Winder Automatic 60 Rpm 0

Fig 1: Automatic coil winding machine ZPX1400's front view



Programmable PLC Control Wire Winder Automatic 60 Rpm 1

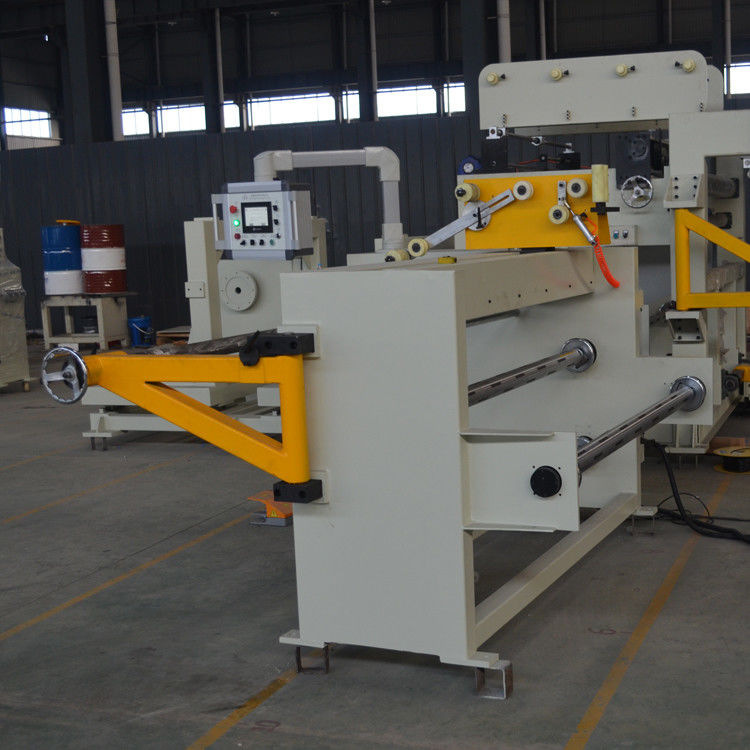

Fig 2: Automatic coil winding machine ZPX1400's insulation decoiler



Programmable PLC Control Wire Winder Automatic 60 Rpm 2Programmable PLC Control Wire Winder Automatic 60 Rpm 3Programmable PLC Control Wire Winder Automatic 60 Rpm 4Programmable PLC Control Wire Winder Automatic 60 Rpm 5Programmable PLC Control Wire Winder Automatic 60 Rpm 6Programmable PLC Control Wire Winder Automatic 60 Rpm 7Programmable PLC Control Wire Winder Automatic 60 Rpm 8Programmable PLC Control Wire Winder Automatic 60 Rpm 9
