| Product Name: | Transformer Foil Winding Machine | Usage: | Making Transformer Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Max. Foil Width: | 1200mm | Color: | As Requested |
| Motor Power: | 15kw | Winding Speed: | 0 ~ 18rpm |
| High Light: | Cast Resin Transformer Winder,Cast Resin Transformer Foil Winding Machine,Transformer Winder Low Voltage |
||
Copper Foil Winder Low Voltage Cast Resin Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1200-2
Cast resin transformer foil winding machine BRJ1200-2 is one kind of special winders and is mainly used to wind copper foil or aluminium foil to make transformer coils and other similar products. The transformer foil winding machine is composed of motor, foil decoilers, insulation decoilers, correct system, welding unit and so on. The transformer foil winding machine features slow starting, smooth running and easy operation etc.
Main components of transformer foil winding machine BRJ1200-2
Technical parameters of transformer foil winding machine BRJ1200-2
Typical standard specifications of transformer foil winding machine BRJ1200-2 are shown below, however, the transformer foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,200mm |
| Max. Finished Coil OD: | Φ1,000mm |
| Min. Finished Coil ID: | Φ130mm |
| Finished Coil Shape: | oval, circle and rectangular, etc |
| Conductor Foil Material: | Copper or Aluminum |
| Foil Thickness Min. and Max. (Aluminum): | 0.3 ~ 3.0 mm |
| Foil Thickness Min. and Max. (Copper): | 0.2 ~ 2.0 mm |
| Conductor Foil Material OD.: | Φ1,000mm |
| Conductor Foil Material ID.: | Φ500mm |
| Conductor Decoiler Diameter: | Φ400 ~ 520mm |
| Winding Power: | 15KW |
| Winding speed: | 0 ~ 20 rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric rolling shear |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing automatic rectifying deviation |
| User Interface: | 10inch (254mm) touch screen |
| Counting Range: | 0 ~ 9999.9 |

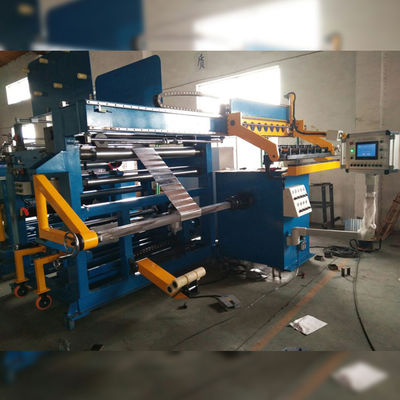

FIG 1: Transfomer foil winding machine's side view
