Corrugated Fin Forming Machine To Make Oil Tank Shell

Corrugated Fin Forming Machine To Make Oil Tank Shell

Corrugated Fin Forming Machine To Make Oil Tank Shell
Corrugated Fin Forming Machine To Make Oil Tank Shell

Large Image :  Corrugated Fin Forming Machine To Make Oil Tank Shell Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: BWX1300-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Corrugated Fin Forming Machine Sheet Width: 300 ~ 1300mm
Fin Height: 50 ~ 400mm Fin Pitch: 45 ~ 60mm
Feeding Speed: 3 ~ 4 Fins/min Color: Customized
Usage: Making Corrugated Fins Warranty: 12 Months
High Light:

4fins/min Corrugated Fin Forming Machine

,

Oil Tank Shell Forming Machine

,

Corrugated Fin Forming Machine 400mm Height

Factory Direct Selling Corrugated Fin Forming Machine To Make Oil Tank Shell



Introduction of corrugated fin forming machine BWX1300-400

Corrugated fin forming machine BWX1300-400 is mainly used to make corrugated fins. This kind of corrugated fins can be used to make transformer oil tanks and other similar products. After presetting some parameters, such as fin pitch, fin height and fin quantity, etc, the corrugated fin forming machine can make the fins automatically. The corrugated fin making machine is composed of guide mechanism, hydraulic forming unit, hydraulic cutting unit, etc. The corrugated fin forming machine features easy operation, smooth running and so on.





Quick details of corrugated fin forming machine BWX1300-400

  • Steel coil width 300~1300mm
  • Sheet thickness 0.5~1.75mm
  • Fin width 300~1300mm
  • Fin height 50~400mm



Main parameters of corrugated fin forming machine BWX1300-400



Typical standard specifications of corrugated fin making machine BWX1300-400 are shown below, however, the corrugated fin making machine can also be manufactured as requested.

Item BWX1300-400
Steel Coil Width: 300~1300mm
Thickness of sheet: 0.5~1.75mm
Fin Width: 300~1300mm
Fin Height: 50~400mm
Distance between fins: >40mm
Fin Gap(oil groove): >4mm
Forming Speed: 3~4 fins/min
Power: 30KW



Corrugated Fin Forming Machine To Make Oil Tank Shell 0

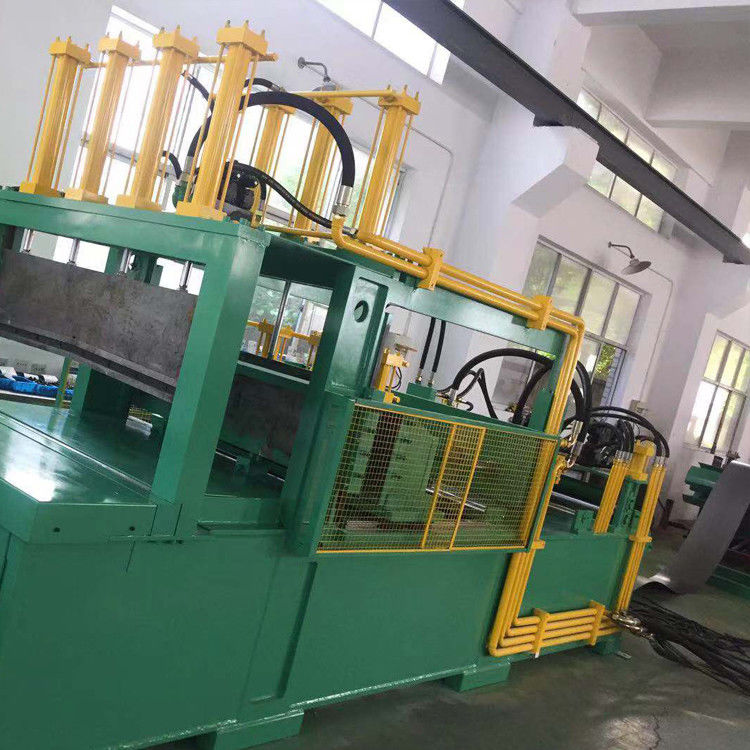

Fig 1: Corrugated fin forming macihne BWX1300-400's side view



Corrugated Fin Forming Machine To Make Oil Tank Shell 1

Fig 2: Corrugated fin forming machine BWX1300-400's decoiler



Corrugated Fin Forming Machine To Make Oil Tank Shell 2Corrugated Fin Forming Machine To Make Oil Tank Shell 3Corrugated Fin Forming Machine To Make Oil Tank Shell 4Corrugated Fin Forming Machine To Make Oil Tank Shell 5Corrugated Fin Forming Machine To Make Oil Tank Shell 6
