Electrical Cast Resin Transformer Foil Winding Machine With Maximum Speed 16rpm

Electrical Foil Winder Machine Cast Resin Transformer Foil Winding Machine

Introduction of transformer foil winding machine BRJ1600-2

Transformer foil winding machine BRJ1600-2 is one kind of conductor foil winder. This kind of transformer foil winding machine is for making cast resin transformer foil coils. With two sets of foil dereelers, two layers of copper foil or aluminium foil can be handled with this kind of transformer foil winding machine. The transformer foil winding machine is with two pneumatic expansible mandrel for placing insulation paper, which can make the transformer foil winding machine to wind one or two layers of insulation paper. The transformer foil winding machine features big torque provided by one big power motor with 30kw, smooth running, and easy operation, etc.

Features of transformer foil winding machine BRJ1600-2

• Slow starting, when the machine starts, the winding speed is very slow for safety
• Running smooth, the machine runs smoothly during running
• High automation, control system based on PLC makes the machine high automation
• Full function
• Big power, the machine is with 30kw motor
• Neat foil edge, de-burring unit make the foil edge neat
• Tight winding, big tension guarantees tight winding
• Easy operation

Main parameters of transformer foil winding machine BRJ1600-2

The following is the standard specification of transformer foil winding machine BRJ1600-2, however, the transformer foil winding machine can also be manufactured as requested.

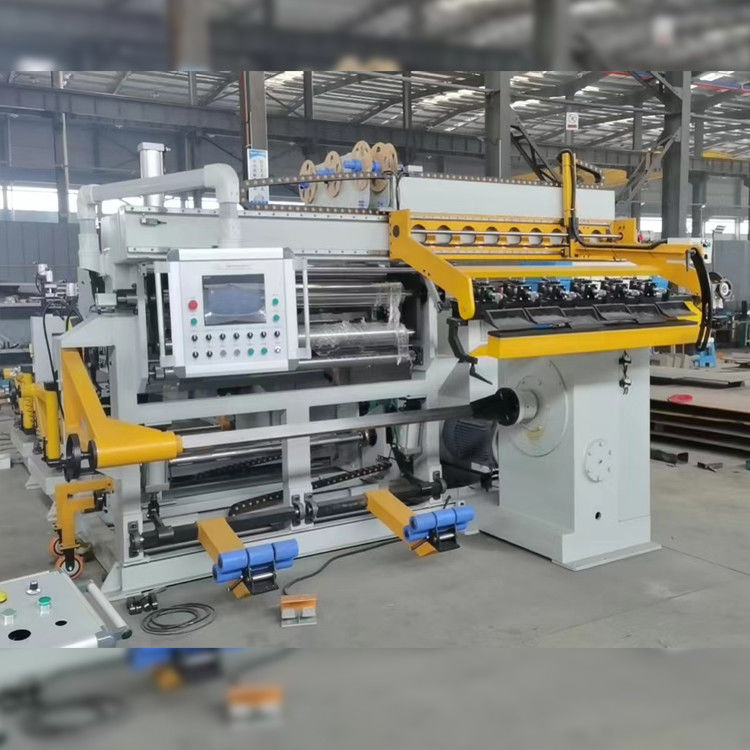

Fig 1: Transformer foil winding machine BRJ1600-2's front view


Fig 2: Transformer foil winding machine BRJ1600-2's back view
