| Name: | Cold Welding Foil Winding Machine | Usage: | Winding Foil |
|---|---|---|---|
| Foil Width: | Maximum 200mm | Foil Thickness: | 0.2 ~ 3mm |
| Motor Power: | 4kw | Decoiler: | One Set |
| Color: | As Per Requirements | Warranty: | 12 Months |
| High Light: | 4kw transformer foil winding,cold pressure welding transformer foil winding,1 decoiler transformer foil winding machine |
||
Transformer Making Equipment Cold Pressure Welding Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ200
Transformer foil winding machine BRJ200 is one kind of transformer making equipment. The kind of transformer foil winding machine is mainly used to wind copper or aluminium foil coils. The coils can be used for making cast resin transformer or other similar products. The transformer foil winding machine is provided with cold pressure welding unit for welding different material together, such as welding aluminium foil and copper bus bar together. With one touch screen and HMI, it is very easy to operated the transformer foil winding machine. The foil winding machine features slow staring, accurate moving, high automation and so on.
Quick details of transformer foil winding machine BRJ200
Technical parameters of transformer foil winding machine BRJ200
Typical standard specifications of transformer foil winding machine BRJ200 are shown below, however, the machine can also be manufactured as requested.
| Max. Foil Width: | 200mm |
| Finished Coil OD. : | 600mm |
| Wound Coil Shape: | Round, Oval and Rectangle etc. |
| Conductor Material: | Copper or aluminum |
| Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~ 3.0mm |
| Foil Material ID.: | 500mm |
| Maximum Foil Material OD.: | 1000mm |
| Foil Decoiler Number: | 1 pc |
| Foil Decoiler Expanding Range: | Φ420 ~ Φ520mm |
| Max Coil Weight: | 750kg |
| Rectifying Mode: | Photoelectric sensing |
| Rectifying Deviation Precision: | ±0.5mm |
| Cleaning Unit: | pneumatic |
| Insulation Paper Decoiler Number: | 1set |
| Maximum Insulation Paper Coil OD.: | 400mm |
| Insulation Paper Coil ID.: | 76mm |
| Insulation Paper Decoiler Shaft: | Expandable (pneumatic open/close action) |
| Winding Speed: | 0 ~ 60 RPM |
| Max. Working Torque: | 3,000N.m. |
| Winding Power: | 4kw |
| Welding Pressure: | 200 KN |
| Cold Welding Device: | 1 set |
| Positioning Device: | 1set |
| Grinding Device: | 1 set |
| Cold Welding Mould: | 6 sets |
| Control system: | PLC |
| Operation Interface: | Touch screen |
| Counting Range: | 0 ~ 9999.9 |

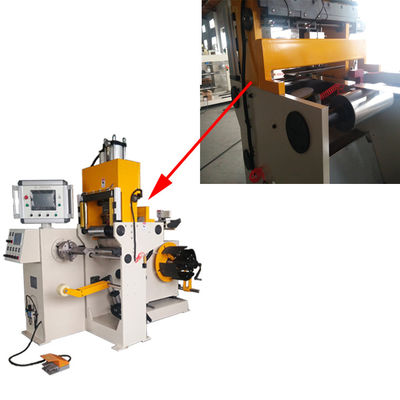

Fig 1: Transformer foil winding machine BRJ200's full view
Fig 1: Transformer foil winding machine BRJ200's side view
