Name: Transformer Oil Tank Shell Corrugated Fin Forming Machine Equipment Automatic
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: BWX1600-400
Price: 26,000.00 USD
Availability: InStock

Transformer Oil Tank Shell Corrugated Fin Forming Machine Equipment Automatic

MOQ

negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Corrugated Fin Making Machine

Sheet Width: 300 ~ 1600mm

Finished Fin Height: 50 ~ 400mm

Finished Fin Pitch: 45 ~ 60mm

Finished Fin Length: ≤2000mm

Color: Optional

Oil Groove: 4mm

Welder: 2 Sets

Highlight:

300mm width corrugated fin forming machine

corrugated fin forming machine automatic

transformer oil tank shell corrugated fin machine

Basic Infomation

Place of Origin: China

Brand Name: STT

Certification: CE

Model Number: BWX1600-400

Payment & Shipping Terms

Packaging Details: seaworthy packing

Delivery Time: 60 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per year

Gallery

Transformer Oil Tank Shell Corrugated Fin Forming Machine Equipment Automatic

Product Description

Corrugated Fin Forming Machine Automatic Transformer Oil Tank Shell Equipment

Description of corrugated fin forming machine BWX1600-400

Corrugated fin forming machine BWX1600-400 is one kind special equipment for making corrugated fins. This kind of corrugated fins can be used to make transformer oil tank and other similar products. The full set of corrugated fins forming machine is composed of fin folding machine, corrugated fin welder, hydraulic decoiler and industrial oil cooler. The steel plate is folded to corrugated fins and then being welded, then the welded fins can be used to make transformer oil tanks. The corrugated fin forming machine features high automation, easy operation and so on.

Main components of corrugated fin forming machine BWX1600-400

Corrugated fin forming machine
Welding machine
Decoiler
Oil cooler

Quick details of corrugated fin forming machine BWX1600-400

Corrugated fin forming machine
Steel plate width 300 ~ 1600mm
Steel plate thickness 0.5 ~ 1.75mm
One year warranty

Main parameters of corrugated fin forming machine BWX1600-400

Typical standard specifications of corrugated fin forming machine BWX1600-400 are shown below, however, the fin forming machine can also be manufactured as requested.

Steel Plate Width:	300 ~ 1600mm
Steel Plate Thickness:	0.5 ~ 1.75mm
Corrugated Fin Height:	50 ~ 400mm
Corrugated Fin Pitch:	45 ~ 60mm
Corrugated Fin Length	2000mm, maximum
Fin Gap (oil groove):	4mm
Corrugated Fin Front Section Length:	≥30mm
Corrugated Fin Back Section Length:	≥30mm
Molding speed:	3 ~ 4 fins/min
Total Weight:	16000KG
Floor Space:	9m x 7m
Total Motor Power:	32kw

Transformer Oil Tank Shell Corrugated Fin Forming Machine Equipment Automatic 0

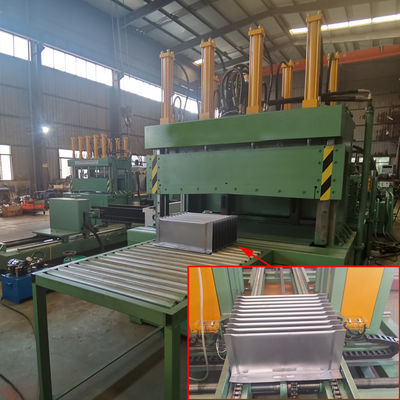

Fig 1: Corrugated fin forming machine BWX1600-400's forming unit

Transformer Oil Tank Shell Corrugated Fin Forming Machine Equipment Automatic 1

Fig 2: Corrugated fin forming machine BWX1600-400's welding machine

Transformer Oil Tank Shell Corrugated Fin Forming Machine Equipment Automatic 2

Transformer Oil Tank Shell Corrugated Fin Forming Machine Equipment Automatic 5
