Description of transformer coil winding machine ZPX800

Transformer coil winding machine ZPX800 is a special wire conductor winder. This kind of transformer coil winding machine can be used to wind wire coils and the wound coils can be used to make transformer coils or other similar products. This kind of transformer coil winding machine can wind both round wires and flat wires. The transformer coil winding machine can be used to wind both copper wires and aluminium wires. The maximum height of the coil the transformer coil winding machine can be used to wind is 800mm. With one 4kw winding motor, the transformer coil winding machine can provide enough torque to drive the winding shaft. With a control system based on PLC and a touch screen, the transformer coil winding machine can provide rich functions through different programs and be operated easily. The transformer coil winding machine features slow starting, smooth running and big torque etc.

Main Features of transformer coil winding machine ZPX800

• Slow starting
• Smooth running
• Full functions
• High automation
• Automatic laying wire
• Counting the number of turns
• Adjustable winding speed
• Big pulling force

Main parameters of transformer coil winding machine ZPX800

The following is the standard specifications of transformer coil winding machine ZPX800, however, the coil winding machine can also be manufactured as requested.

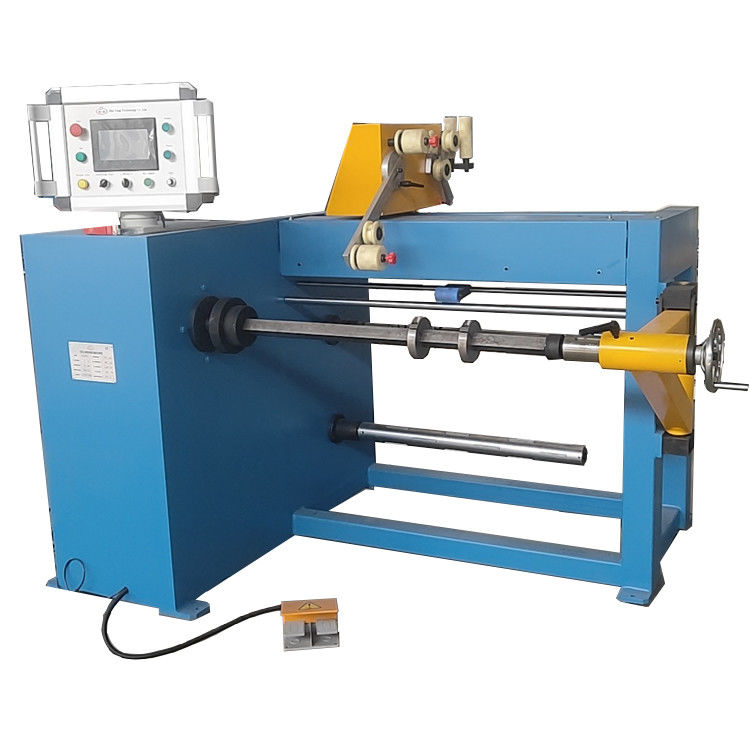

Fig 1: Transformer coil winding macihne's front view

Fig 2:Transformer coil winding machine's wire guide
