Home ProductsAutomatic Coil Winding Machine

Vertical Flat Wire Coil Winder Automatic Customizable

Vertical Flat Wire Coil Winder Automatic Customizable

Vertical Flat Wire Coil Winder Automatic Customizable
Vertical Flat Wire Coil Winder Automatic Customizable

Large Image :  Vertical Flat Wire Coil Winder Automatic Customizable Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: LR200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Vertical Winding Machine Usage: Winding Flat Wire Coil
Wire Conductor: Aluminium Or Copper Wire Conductor Type: Flat Wire
Flat Wire Size: Maximum 4x10mm Machine Color: Customizable
Warranty: 12 Months Coil Stand: 1 Pc
High Light:

Flat Wire Coil Winder

,

Vertical Wire Coil Winder

,

Flat Automatic Coil Winding Machine

Vertical Flat Wire Coil Winder Automatic Coil Winding Machine





Introduction of automatic coil winding machine LR200



Automatic flat wire coil winding machine is a professional equipment for winding flat copper or aluminum wire. The wire raw materials include enameled flat copper wire, enameled flat aluminum wire, bare flat copper wire, bare flat aluminum wire, silk covered flat copper wire, silk covered flat aluminum wire, paper covered flat copper wire, and paper covered flat aluminum wire, etc. The machine bends wire when winding, which guarantees the finished coil not deformed. These finished coils can be used in reactors and other similar products. It features high automatic, slow starting, smooth running, high automation, strong rotating force, and easy to operate, etc.





Main components of automatic coil winding machine LR200



  1. Main Frame
  2. Touch screen
  3. Electrical Control Cabinet
  4. Pneumatic System
  5. Foot Pedal



Main parameters of automatic coil winding machine LR200



Typical standard specifications of LR200 are shown below, however these can be easily modified as requested.

Center Height: 800mm
Max. Coil Length: 200mm
Winding Power: 2.5kw
Bending Speed: 5~500 times/min.
Max. Flat Wire: 12.5x3.15mm (section area less than 40mm2)
Max. Rectangle Diagonal: 200mm
Feeding Stoke: 200mm
Pitch: adjustable
Programming Type: PLC
User Interface: touch screen





Vertical Flat Wire Coil Winder Automatic Customizable 0

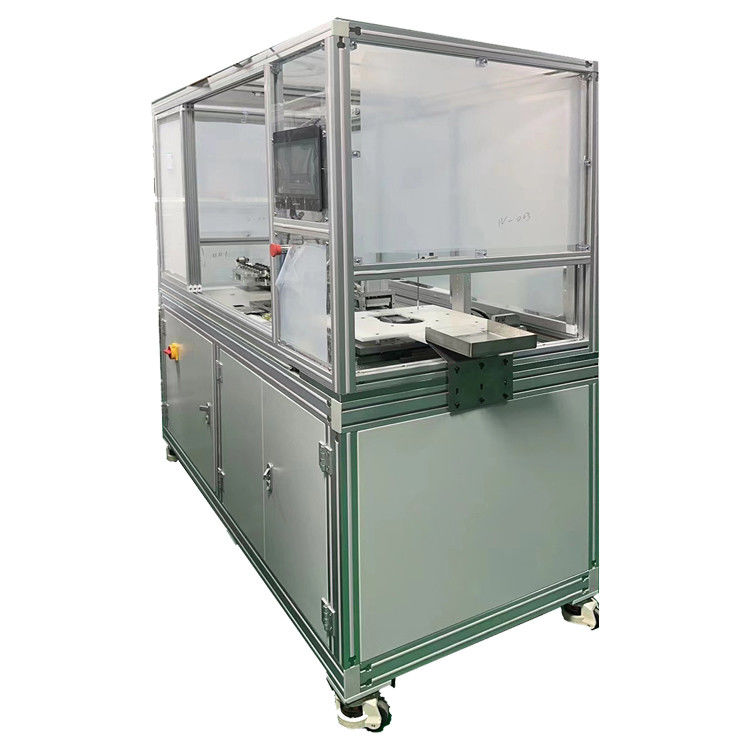

Fig 1: Automatic coil winding machine LR200's front view



Vertical Flat Wire Coil Winder Automatic Customizable 1

Fig 2: Automatic coil winding machine LR200's coil stand



Vertical Flat Wire Coil Winder Automatic Customizable 2Vertical Flat Wire Coil Winder Automatic Customizable 3Vertical Flat Wire Coil Winder Automatic Customizable 4Vertical Flat Wire Coil Winder Automatic Customizable 5Vertical Flat Wire Coil Winder Automatic Customizable 6Vertical Flat Wire Coil Winder Automatic Customizable 7Vertical Flat Wire Coil Winder Automatic Customizable 8Vertical Flat Wire Coil Winder Automatic Customizable 9Vertical Flat Wire Coil Winder Automatic Customizable 10
