| Name: | Transformer Foil Winding Machine | Function: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Max. Foil Width: | 800mm | Color: | As Requested |
| Winding Power: | 15kw | Winding Speed: | 20rpm |
| Highlight: | Transformer Foil Winding Machine With Cutter,Automatic PLC Control Foil Winding Machine,800mm Transformer Foil Winder |
||
Automatic PLC Control Low Voltage Transformer Foil Winding Machine With Cutter
Description of transformer foil winding machine BRJ800-2
Transformer foil winding machine BRJ800-2 is a special equipment, which can be used to wind conductor aluminium foil or conductor copper foil to make dry type transformer coil. This model of the foil winder equipment is equipped two foil decoilers and two insulation paper decoilers, which makes the foil winding machine can wind one or two layers of foil and one or two layers of insulation paper. Moreover, the transformer foil winding machine is provided with photoelectric senors to make the foil edge neat when the foil is wound. With the touch screen and HMI, the transformer foil winding machine is very easy to be operated.
Quick details of transformer foil winding machine BRJ800-2
1) Two foil decoilers
2) Two insulation paper decoilers
4) End-fill strip feeders
5) Cleaning system
6) Deburring system
7) Edge alignment system
8) Automatic welding unit
Technical parameters of transformer foil winding machine BRJ800-2
Typical standard specifications of transformer foil winding machine BRJ800-2 are shown below, however the machine can also be manufactured as requested.
| Foil Width: | 200 ~ 800mm |
| Finished Coil Shape: | oval, circle and rectangle |
| Supply Material OD.: | 1,000mm |
| Supply Material ID.: | 500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 850mm |
| Foil Decoiler Expansion Range: | 420 ~ 520mm |
| Winding Shaft Size: | 80×80×1150 mm |
| Cutter: | Electric disc shear |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material OD.: | 400mm |
| Insulation Material ID.: | 75mm |
| Max. Insulation Material Width: | 850mm |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |
| Winding Power: | 15kw |
| Winding Speed: | 0 ~ 20rpm |

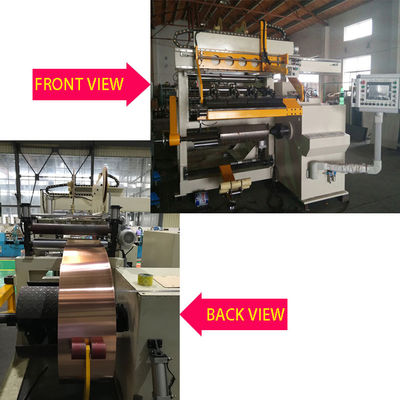

Fig 1: Transformer foil winding machine BRJ800-2's front view
Fig 2: Transformer foil winding machine BRJ800-2's back view
