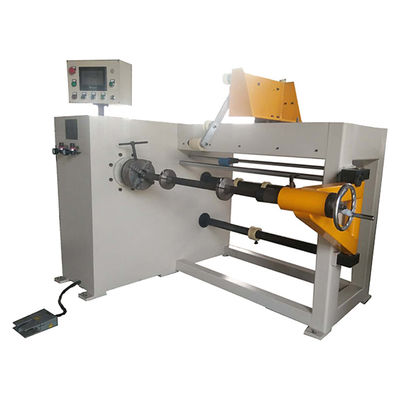

4kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width

4kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width

4kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width
4kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width

Large Image :  4kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPX800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Prodcut Name: Automatic Coil Winding Machine Power: 4kw
Winding Speed: 0 ~ 160rpm Conductor Type: Flat Or Round Wire
Control System: PLC Display Mode: Touch Screen
Tension Control: Pneumatic Winding Direction: Forward/Reverse
Winding Method: Single/Double/Triple Wire Diameter: 0.3~ 5.0mm
High Light:

Automatic Coil Winding Machine 4kw

,

Double Automatic Coil Winding Machine

,

800mm Width Automatic Coil Winder

Automatic Coil Winding Machine With 0-160rpm, 800mm Max. Winding Width





Description of automatic coil winding machine ZPX800



Automatic coil winding machine ZPX800 is an electrical wire winder equipment, which is mainly used to make transformer coils and other similar products. Both copper wire and aluminium wire can be wound by the automatic coil winding machine to make wire coils. The wound coils can be used in transformers and other similar products. The maximum winding width of this type automatic coil winding machine is 800mm. The wire guide of the coil winding machine is driven by a servo motor, which guarantees the wire guide to move precisely. With the control system based on PLC and the touch screen, it is very easy to operate the automatic coil winding machine.





Main parameters of automatic coil winding machine ZPX800



The typical standard specifications of automatic coil winding machine ZPX800 is as following, however, the coil winding machine can also be manufactured as requested.

Center Height: 900mm
Winding Shaft Size: 40x40x1100mm
Maximum Winding Width: 800mm
Winding Motor: 4kw
Winding Speed: 0 ~ 160 rpm
Speed Regulation: stepless
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: Ø0.3mm ~ Ø5.0mm
Maximum Wound Coil OD.: 800mm
Maximum Capacity: 700kg
Minimum Spread Pitch: 0.01mm
Counting Mode: 5-digit counting
Maximum Turns Preset: 9999.9
Counting Range: 0 ~ 9999.9



4kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width 0

Fig 1: Automatic coil winding machine ZPX800's front view



4kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width 1

Fig 2: Automatic coil winding machine ZPX800's wire guide



4kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width 24kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width 34kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width 44kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width 54kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width 64kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width 74kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width 84kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width 94kw Automatic Coil Winding Machine With 0 - 160rpm 800mm Winding Width 10
