| Product Name: | Transformer Coil Winding Machine | Color: | Optinal |
|---|---|---|---|
| Usage: | Winding Transformer Wire Coil | Control System: | PLC |
| Conductor Material: | Copper Or Aluminium Wire | Wire Type: | Flat Or Round Wire |
| Motor: | 5.5kw | Warranty: | 1 Year |
| Highlight: | Servo Motor Drive Transformer Winding Machine,Heavy Duty Transformer Coil Winding Machine,PLC Control Transformer Coil Winder Machine |
||
Heavy Duty Transformer Coil Winding Machine Servo Motor Drive Wire Guide PLC Control
Description of transformer coil winding machine ZPX1200
Transformer coil winding machine ZPX1200 is a heavy duty transformer coil winding machine, which can be used to wind round wire and flat wire to make transformer coil. The transformer coil winding machine is provided with a wire guide driven by a servo motor to laying the wire automatically. PLC based control system is used for the coil winding machine, which makes the coil winding machine programmable. With a touch screen, it is very easy to operate the coil winding machine.
Main components of transformer coil winding machine ZPX1200
1. Main frame
2. Winding unit
3. Automatic wire laying unit
4. Insulation decoiler
5. Electronic control system
6. Pneumatic system
Technical parameters of transformer coil winding machine ZPX1200
Typical standard specifications of transformer coil winding machine ZPX1200 are shown below, however, the coil winding machine can also be manufactured as requested.
| Center Height: | 900 mm |
| Shaft Size: | 50x50x1500mm |
| Winding Width: | 1200mm |
| Winding Speed: | 0 ~ 80rpm |
| Speed Regulation: | stepless |
| Winding Power: | 5.5kw |
| Round Wire Diameter: | Ø0.3 ~ 5.0mm |
| Maximum Flat Wire Size: | 5x12mm |
| Maximum Finished Coil OD: | Ø800mm |
| Maximum Capacity: | 700kg |
| Minimum Spread Pitch: | 0.01mm |
| Counting Range: | 0 - 9999.9 |

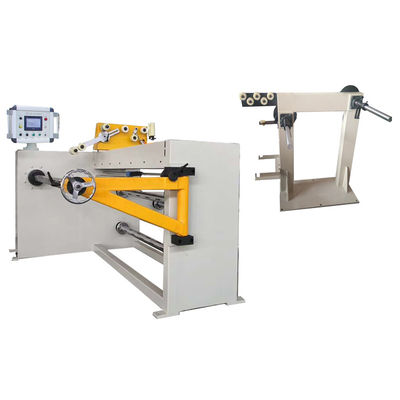

Fig 1: Transformer coil winding machine ZPX1000's front view
Fig 2: Transformer coil winding machine ZPX1000's wire guide
